mosaic-G5 P3H INDUSTRIAL IP67 Dual Channel RTK GNSS dongle

mosaic-G5 P3H INDUSTRIAL IP67 dual channel all-constellation multi-frequency top-performance high precision RTK GNSS receiver.

mosaic-G5 P3H high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.

APME+ a posteriori multipath estimator for code and phase multipath mitigation.

LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations

IONO+ provides advanced protection against ionospheric disturbances

RAIM+ receiver autonomous integrity monitoring

---

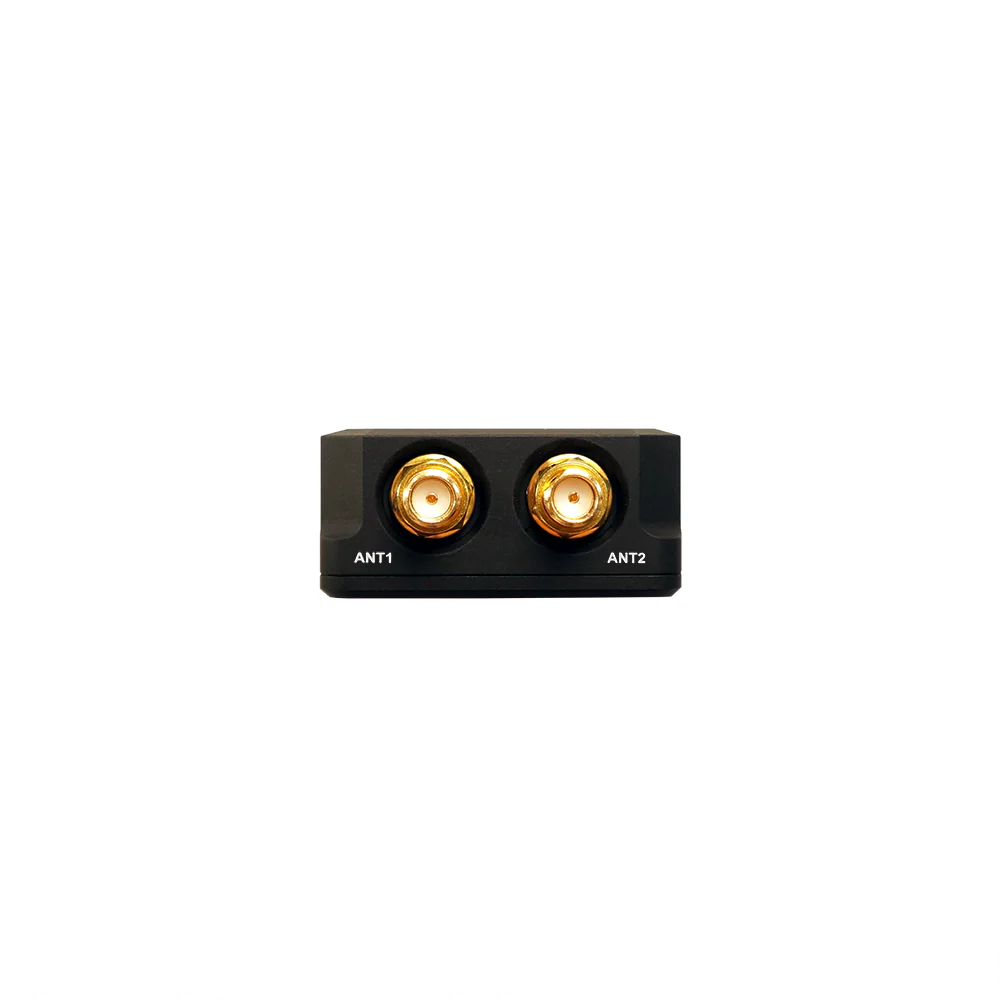

• Two antenna inputs with SMA connectors
• USB C connector
• Time pulse LED, TRCK LED, RTK LED
• RxTools Control and Analysis Software
• Extensive visualization and evaluation features
• Supercapacitor for HOT module start
• Dimensions: 50x40x18 mm
• Weight 55 gramm
• Fully assembled and ready to use
• Working temperature: -40 °C ~ +85 °C
• Storage temperature: -55 °C ~ +95°C
• Humidity: 95% No condensation
• Vibration: MIL-STD-810F
• Shock: MIL-STD-810F
