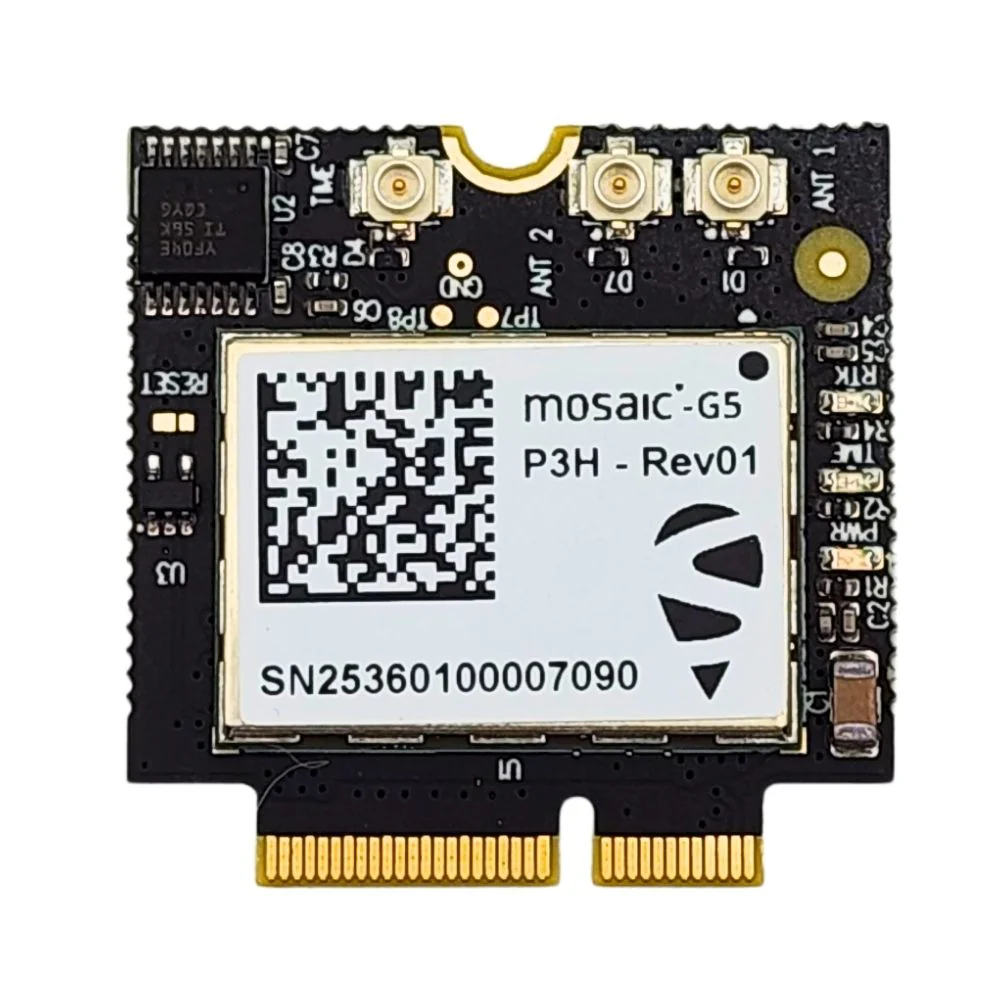

mosaic-G5 P3H Dual Channel M.2 socket RTK GNSS receiver

mosaic-G5 P3H M.2 socket dual channel all-constellation multi-frequency top-performance high precision RTK GNSS receiver.

mosaic-G5 P3H high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.

APME+ a posteriori multipath estimator for code and phase multipath mitigation.

LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations

IONO+ provides advanced protection against ionospheric disturbances

RAIM+ receiver autonomous integrity monitoring

---

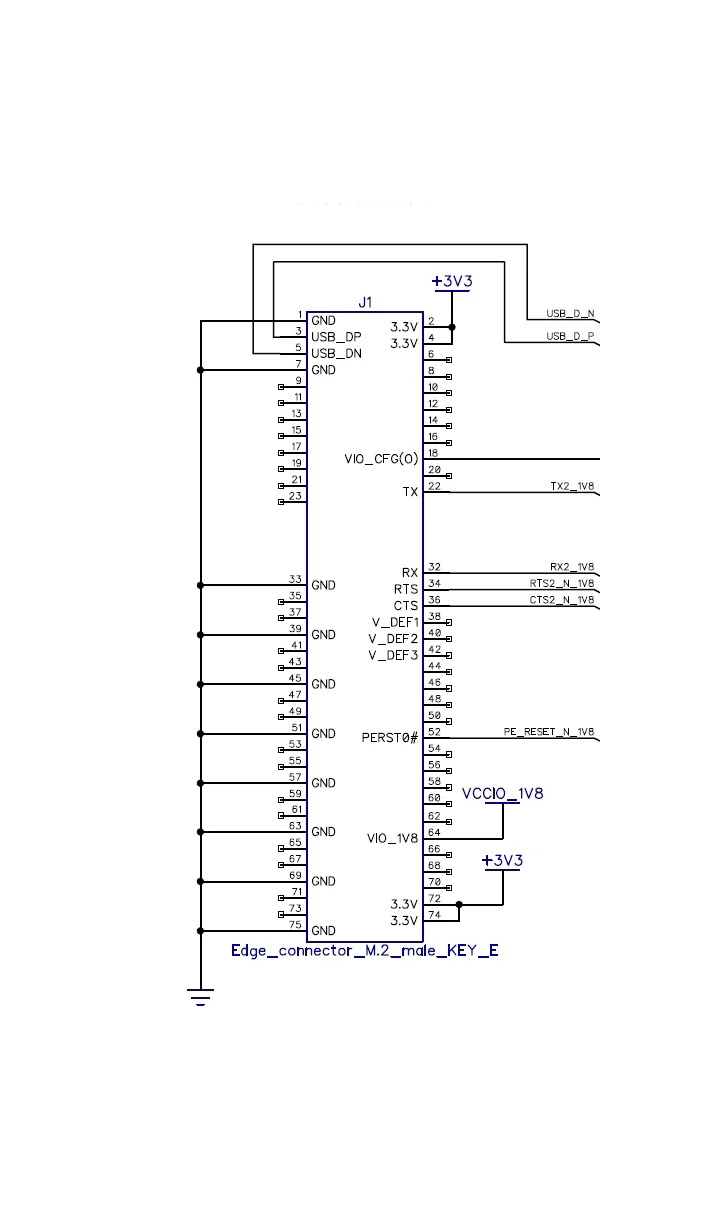

• M.2 3030 Key-E compatible (Part of NGFF, Next Generation Form Factor)
• Two antenna inputs with IPEX connectors
• USB and UART with CTS/RTS interfaces used
• Time pulse LED: Green, Power LED: purple, RTK LED (GPIO1): Orange
• RxTools Control and Analysis Software
• Extensive visualization and evaluation features
• Dimensions 22x42 mm
• Weight: 10 gr.
• Fully assembled, tested and ready to use

WARNING: This module requires antennas with 3.0 V power supply, such as ELT0243
