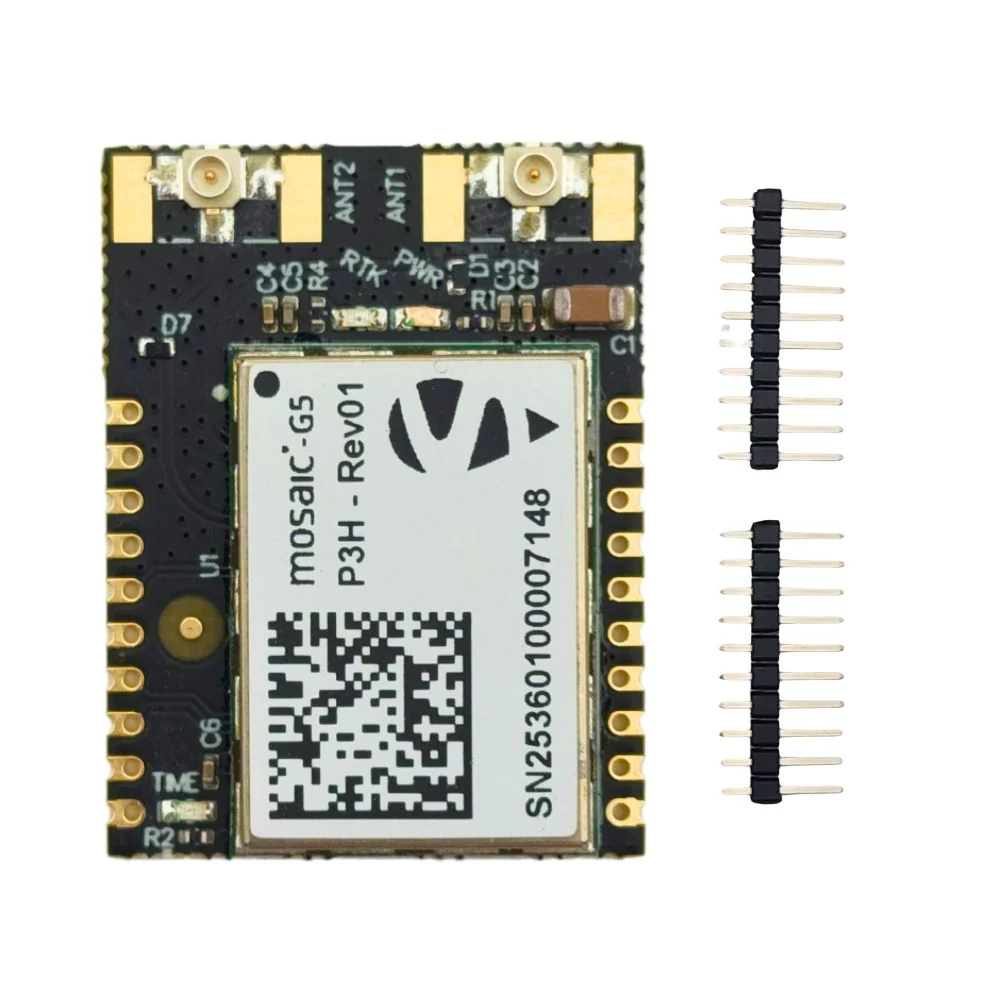

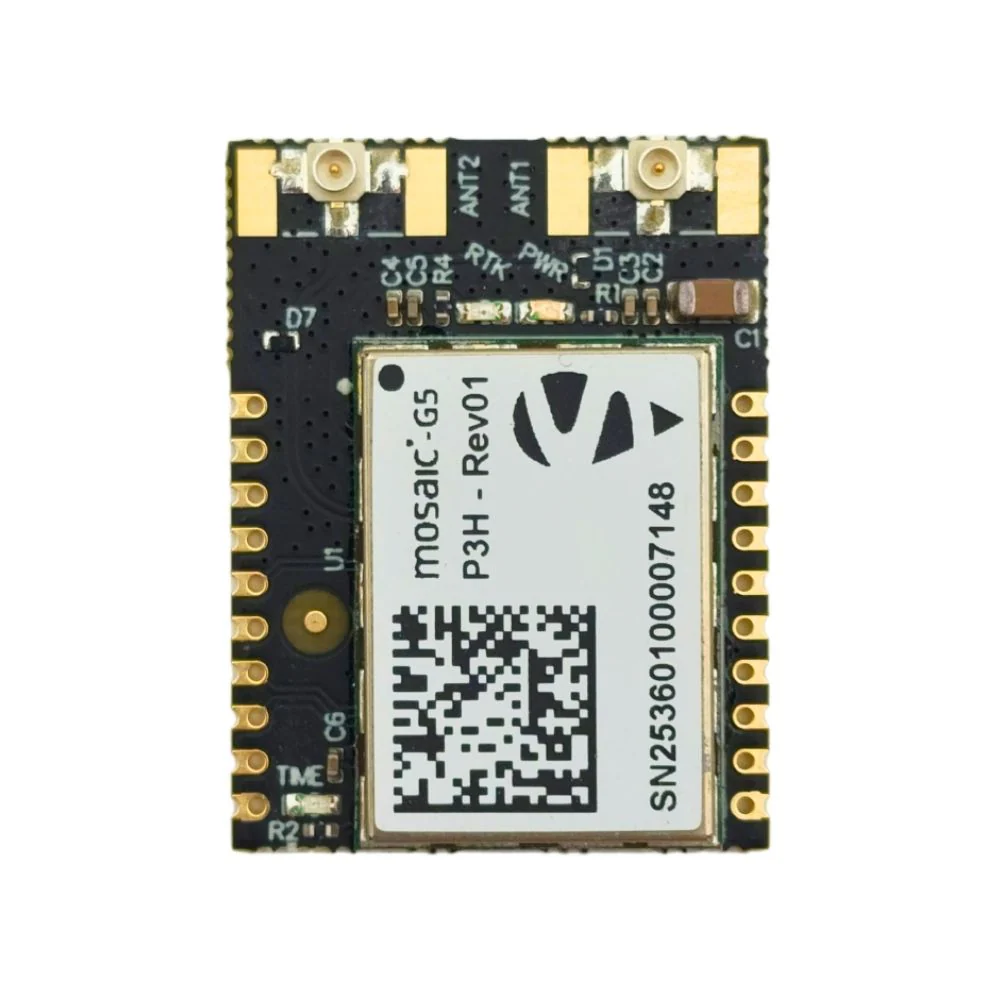

mosaic-G5 P3H Mic Dual Channel RTK GNSS receiver board

Mic Form Factor features:

• Allows you to reuse expensive LGA component, if something goes wrong
• Takes care of all the RF complexity so you only need to connect antenna directly to the module
• This form factor is available in a variety of modules

mosaic-G5 P3H dual channel all-constellation multi-frequency top-performance high precision RTK GNSS receiver.

mosaic-G5 P3H high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.

APME+ a posteriori multipath estimator for code and phase multipath mitigation.

LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations

IONO+ provides advanced protection against ionospheric disturbances

RAIM+ receiver autonomous integrity monitoring

---

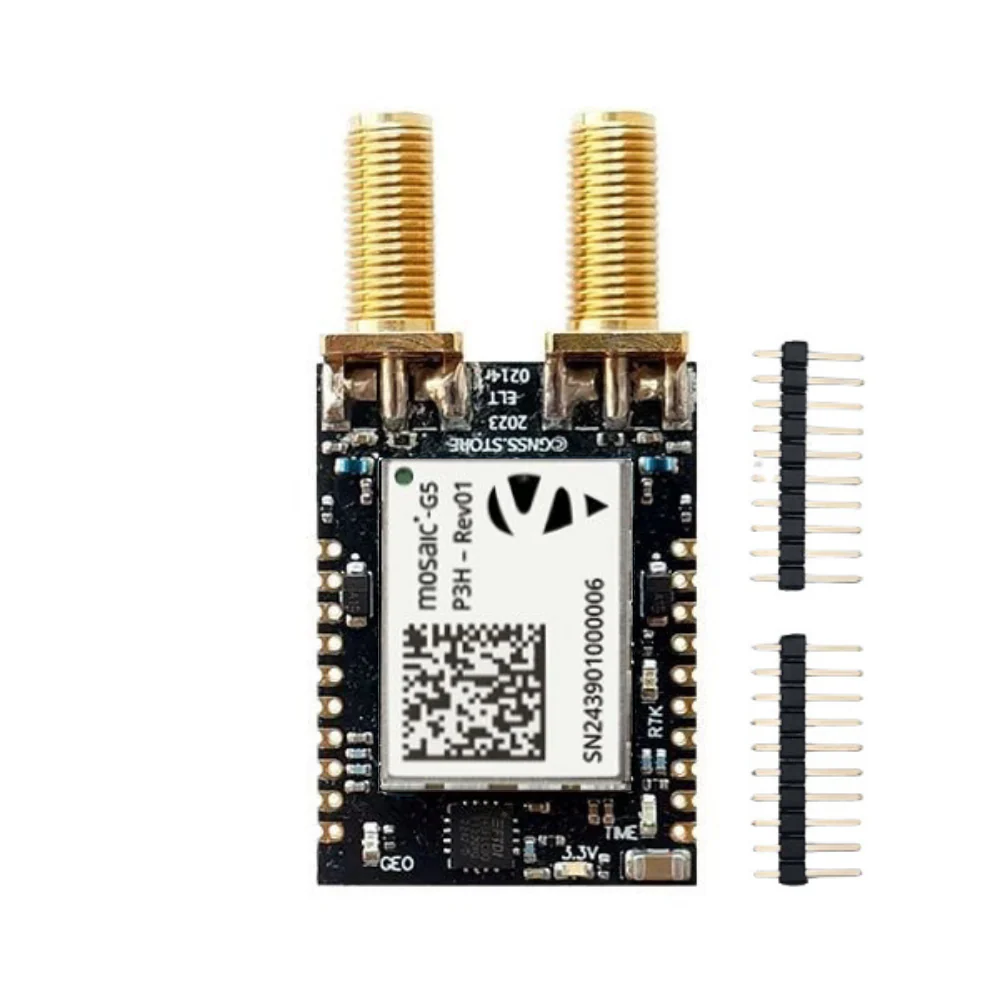

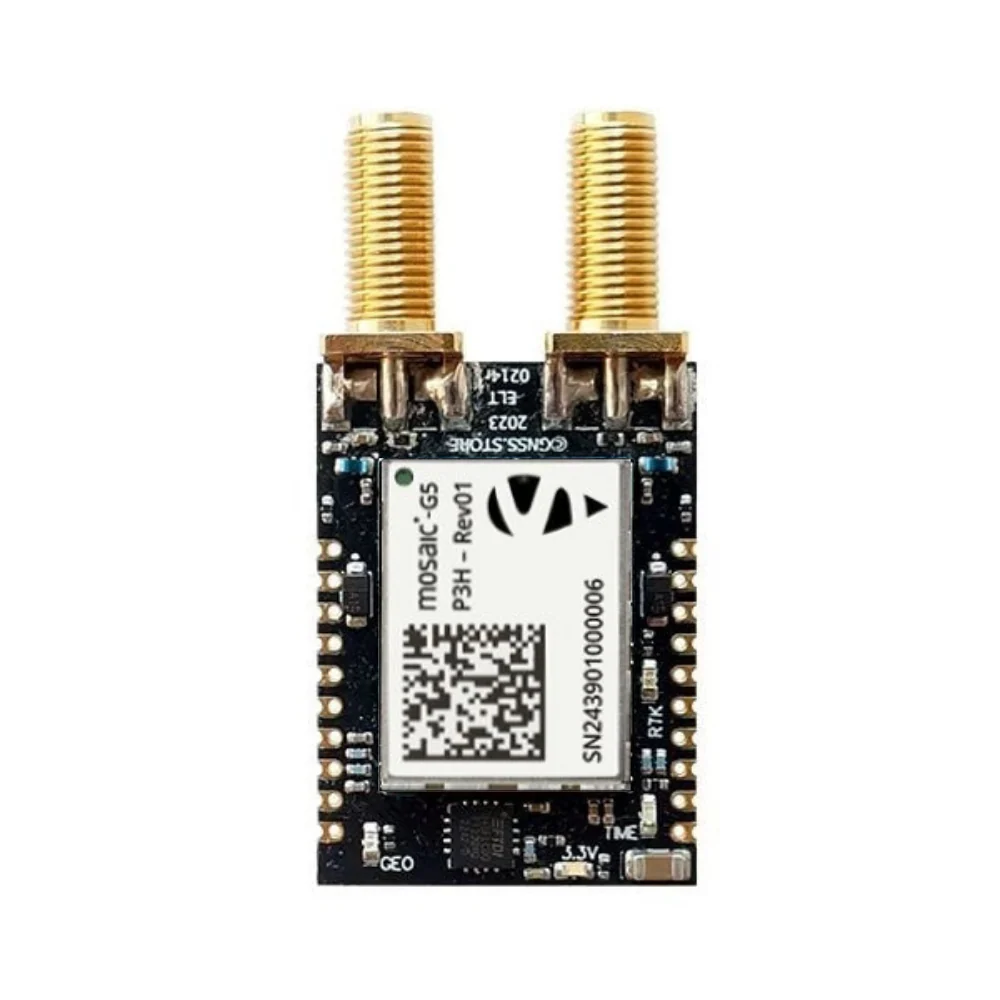

• Two antenna inputs with SMA or IPEX connector

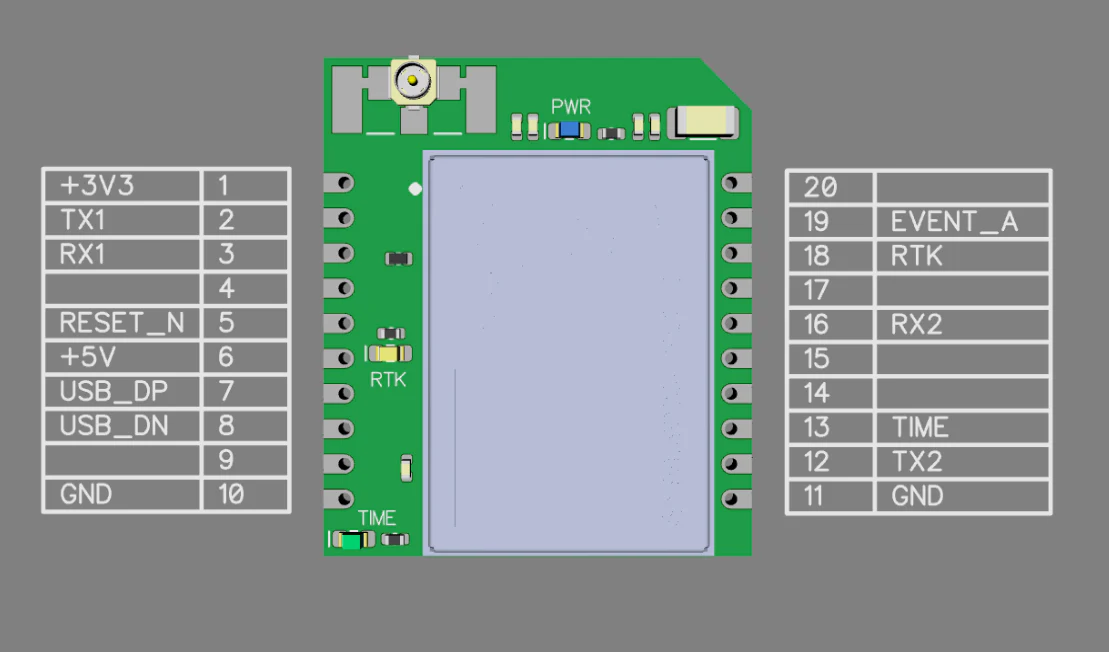

• USB and 2 UART (3.3V)
• EVENTA external event input (3.3V)

• RESET Input
• Time pulse LED: Green, Power LED: Purple, RTK LED (GPIO1): Orange
• RxTools Control and Analysis Software
• Extensive visualization and evaluation features
• Dimensions 26x39 mm
• Weight: 10 gr.
• Fully assembled, tested and ready to use

WARNING: RX and EVENT input shall not be driven while input supply not present.

WARNING: This module requires antennas with 3.0 V power supply, such as ELT0243

---
