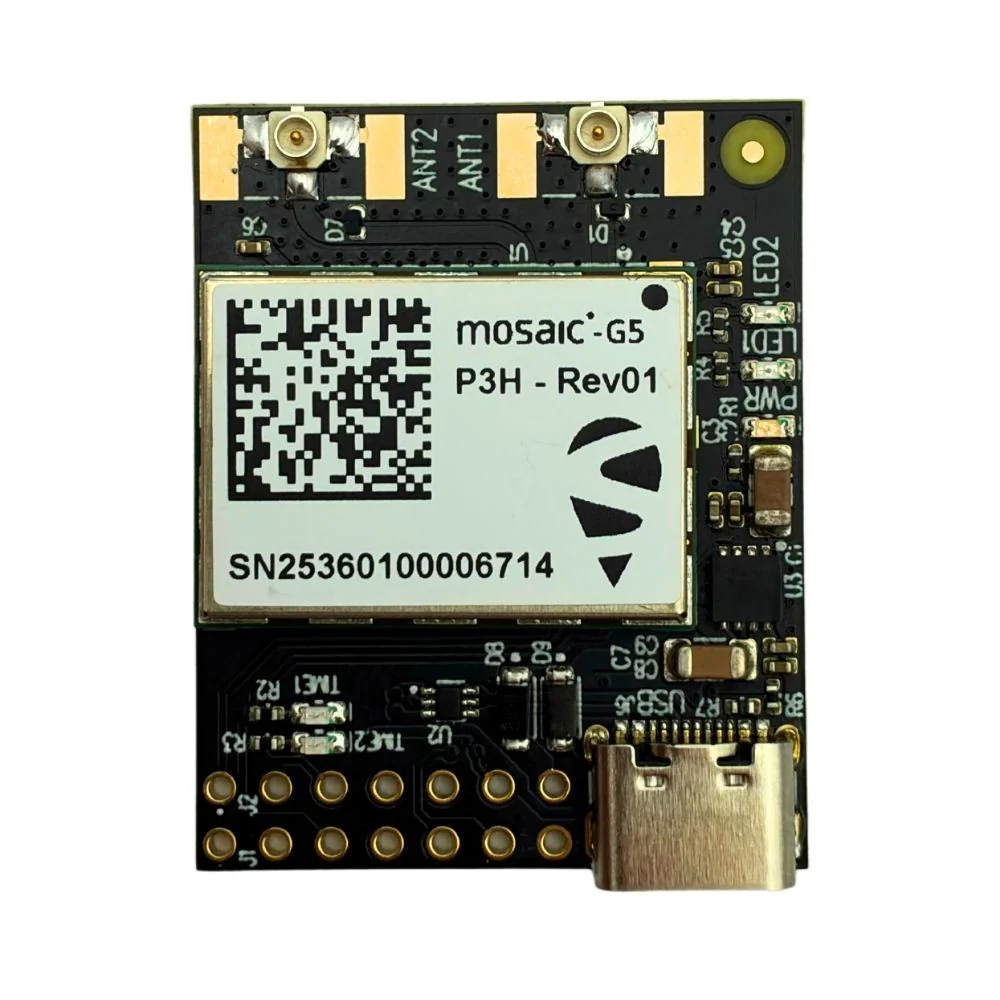

mosaic-G5 P3H Dual Channel RTK InCase PIN GNSS receiver board with USB C
mosaic-G5 P3H dual channel all-constellation multi-frequency top-performance high precision RTK GNSS receiver.
mosaic-G5 P3H high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.
APME+ a posteriori multipath estimator for code and phase multipath mitigation.
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring
- Two antenna inputs with SMA or IPEX connector
- USB C connector
- Two UART (3.3V)
- EVENTA, EVENTB external event inputs (3.3V)
- Two PPS outputs (3.3V)
- Two GPIO pins (3.3V)
- Time pulse LED: Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 28x38 mm
- Weight: 10 gr.
- Fully assembled, tested and ready to use
WARNING: RX and EVENT inputs shall not be driven while input supply not present.
