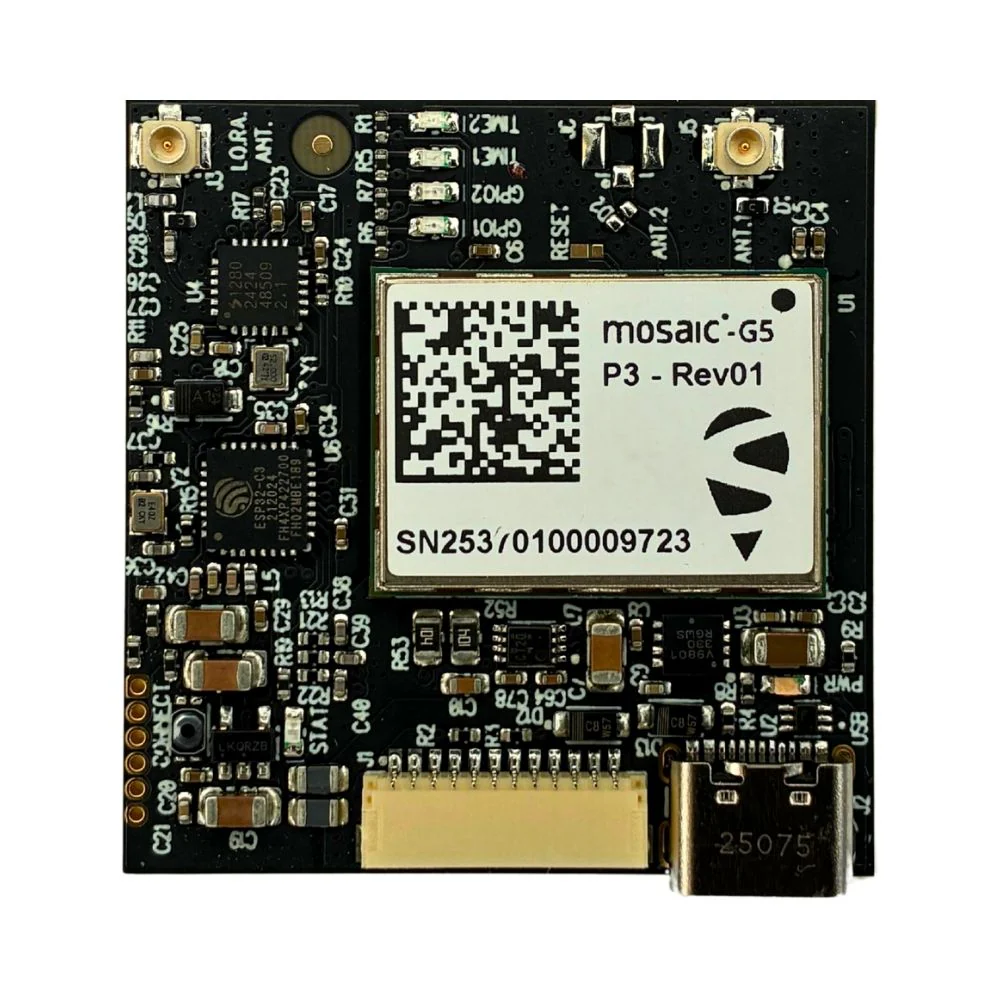

mosaic-G5 RTK whith LoRa technology GNSS receiver board, USB-C / JST connectors

mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver with LoRa RTK corrections receiver

mosaic-G5 RTK GNSS with integrated LoRa delivers reliable centimeter-level accuracy — perfect for surveying, agriculture, construction, drones, and even multi-drone swarms, all without relying on mobile networks.

mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.

APME+ a posteriori multipath estimator for code and phase multipath mitigation.

LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations

IONO+ provides advanced protection against ionospheric disturbances

RAIM+ receiver autonomous integrity monitoring

---

An RTK GNSS receiver with integrated LoRa is ideal for applications where centimeter-level accuracy is required in areas with limited or no internet access. The LoRa link provides a low-power, long-range channel for receiving RTCM corrections directly from a local base station.

This makes it especially suitable for:

• Surveying and construction – reliable corrections without mobile networks.

• Precision agriculture – cost-effective guidance for tractors and field equipment.

• Drones and UAVs – lightweight, power-efficient correction channel.

• Drone swarms and multi-drone operations – one base station can serve many drones simultaneously, ensuring synchronized, high-precision positioning.

• Autonomous robots and vehicles – dependable local infrastructure for navigation.

In short: RTK + LoRa offers simple, efficient, and scalable centimeter-level positioning for both single devices and coordinated fleets.

• GNSS antenna input with IPEX connector
• LoRa antenna input with IPEX connector
• LoRa configuration switch
• USB C connector

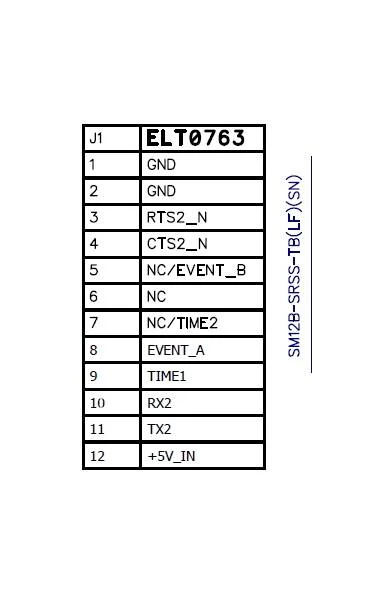

• 12-pin JST SH connector
• USB and one UART with hardware flow control interface
• Technological MCU programming 6-pin connector
• EVENTA, EVENTB: 3.3V LVTTL, 5V-tolerant, protected, high-impedance external event inputs
• PPS output (3.3V)
• Time pulse LED: Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange
• RxTools Control and Analysis Software
• Extensive visualization and evaluation features
• Dimensions 37x39 mm
• Weight: 10 gr.
• Fully assembled, tested and ready to use

WARNING: RX and CTS inputs shall not be driven while input supply not present.

---
