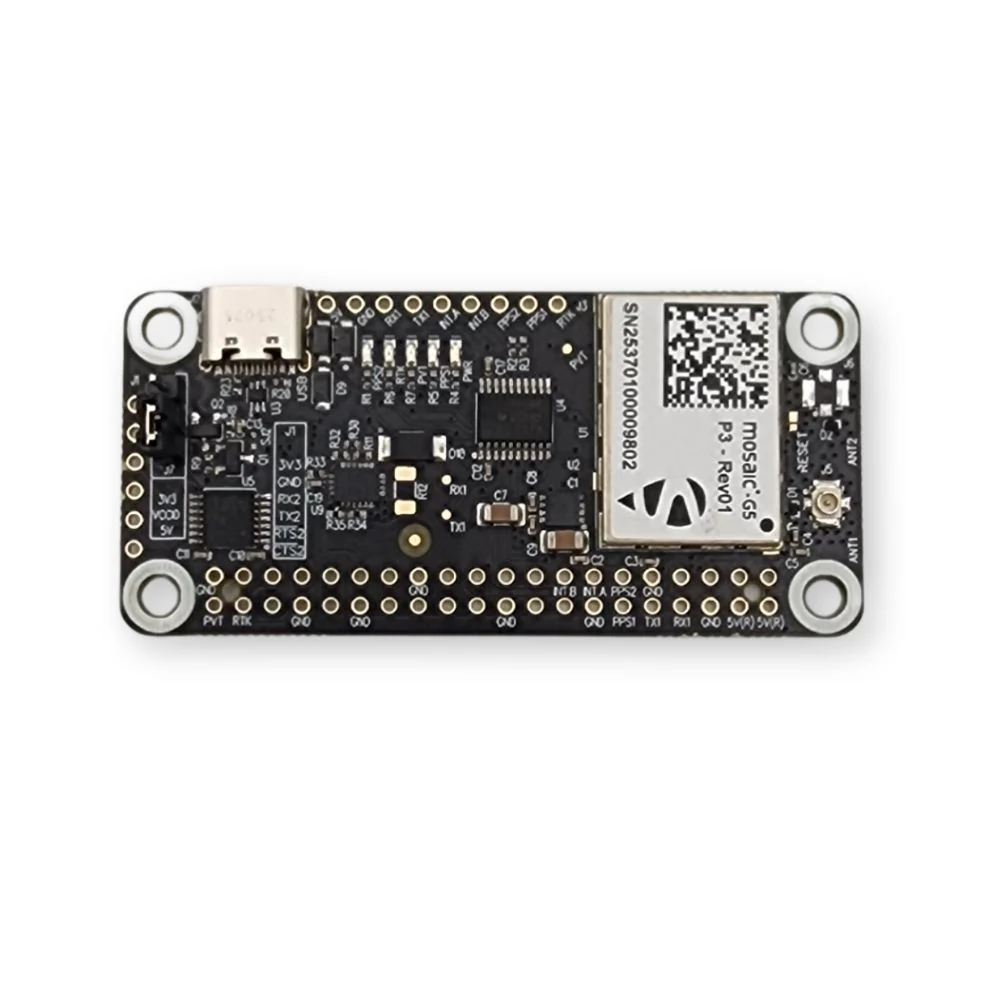

mosaic-G5 RTK GNSS Raspberry PI HAT

mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver.

mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.

APME+ a posteriori multipath estimator for code and phase multipath mitigation.

LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations

IONO+ provides advanced protection against ionospheric disturbances

RAIM+ receiver autonomous integrity monitoring

---

HAT features:

• Raspberry PI 40 pin extension header, supports all Raspberry PI compatible boards and Jetson Nano
• USB C connector
• Antenna input with IPEX connector
• On board low noise 3.3 V voltage regulator
• On board voltage level translators for 5V compatibility
• Time pulse LED: Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange
• ELT_RtkBase full-featured software
• RxTools Control and Analysis Software
• Extensive visualization and evaluation features
• Supports onboard battery holder for ML1220 rechargeable cell for long backup applications
• Dimensions 65x30.5x10 mm
• Fully assembled and ready to use
• ELT_RTKBase User Guide

---
