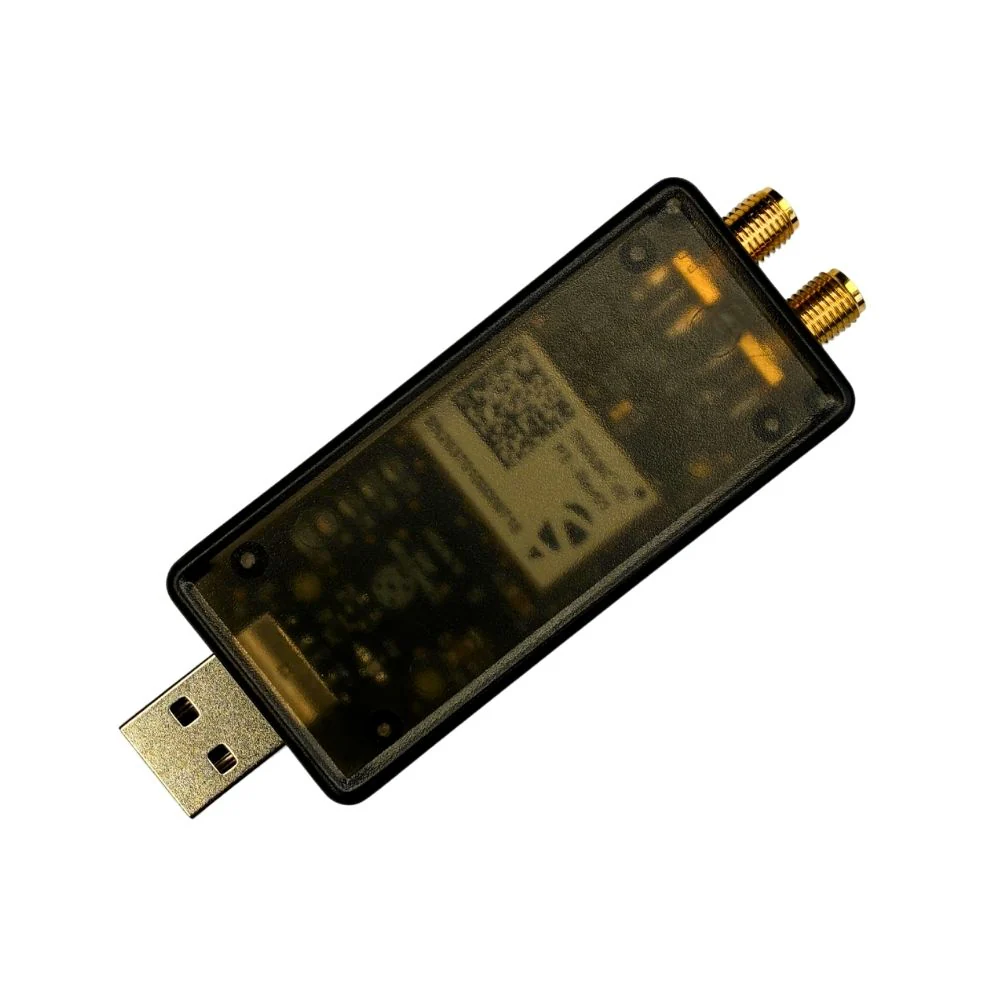

mosaic-G5 RTK GNSS dongle

mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver

mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.

APME+ a posteriori multipath estimator for code and phase multipath mitigation.

LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations

IONO+ provides advanced protection against ionospheric disturbances

RAIM+ receiver autonomous integrity monitoring

---

• Antenna input with SMA connector
• PPS output with SMA connector
• USB A connector
• Time pulse LED 1 (PPS1): Green, Time pulse LED 2 (PPS2): Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange
• RxTools Control and Analysis Software
• Extensive visualization and evaluation features
• Dimensions 65x30x15.5 mm
• Weight: 20 gr.
• Fully assembled, tested and ready to use
