mosaic-G5 RTK InCase PIN GNSS receiver board

mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver.

mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.

APME+ a posteriori multipath estimator for code and phase multipath mitigation.

LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations

IONO+ provides advanced protection against ionospheric disturbances

RAIM+ receiver autonomous integrity monitoring

---

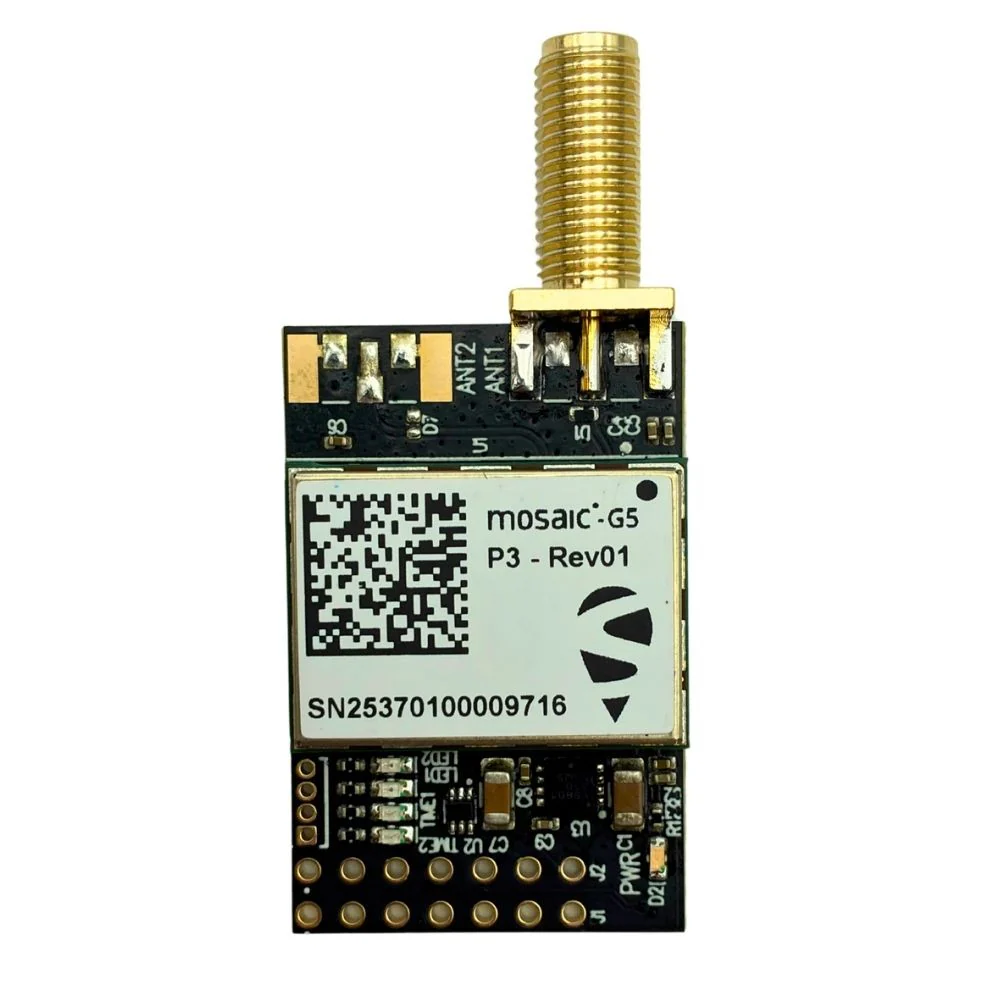

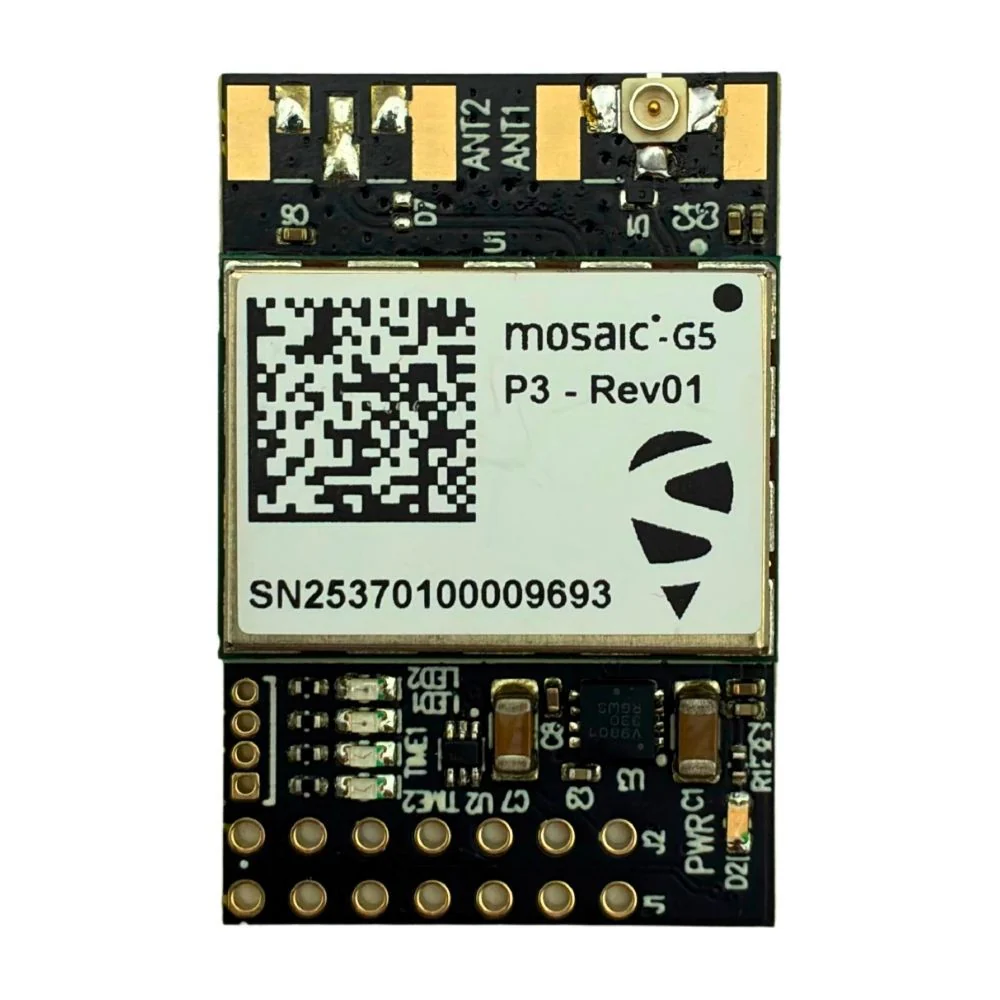

• Antenna input with SMA or IPEX connector
• USB and 2 UART (3.3V)
• EVENTA external event input (3.3V)
• PPS output (3.3V)
• Time pulse LED: Green, Power LED: Purple, PVT LED (GPIO2): Red, RTK LED (GPIO1): Orange
• RxTools Control and Analysis Software
• Extensive visualization and evaluation features
• Dimensions 24x38 mm
• Weight: 10 gr.
• Working temperature: -40 °C ~ +85 °C
• Storage temperature: -55 °C ~ +85°C
• Humidity: 5% ~ 95% No condensation
• Vibration: IEC 60721-3-5 Profile 5M3, MIL-STD-810H 514.8 Category 4, MIL-STD-810H 516.8 Procedure 1
• Fully assembled, tested and ready to use

WARNING: RX and EVENT inputs shall not be driven while input supply not present.

---
