mosaic-X5 RTK Handheld Surveyor Kit with Quick Charge Connectivity

RTK Handheld Surveyor Kit with Quick Charge Connectivity

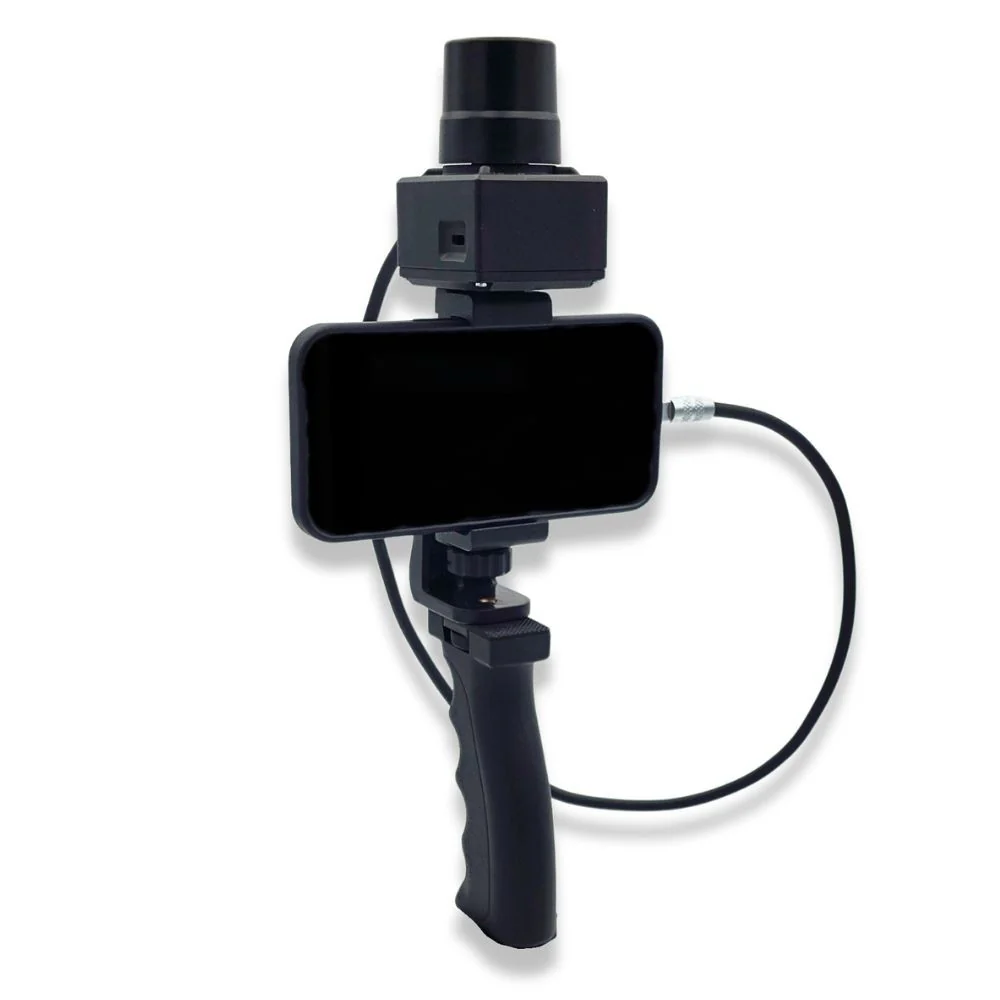

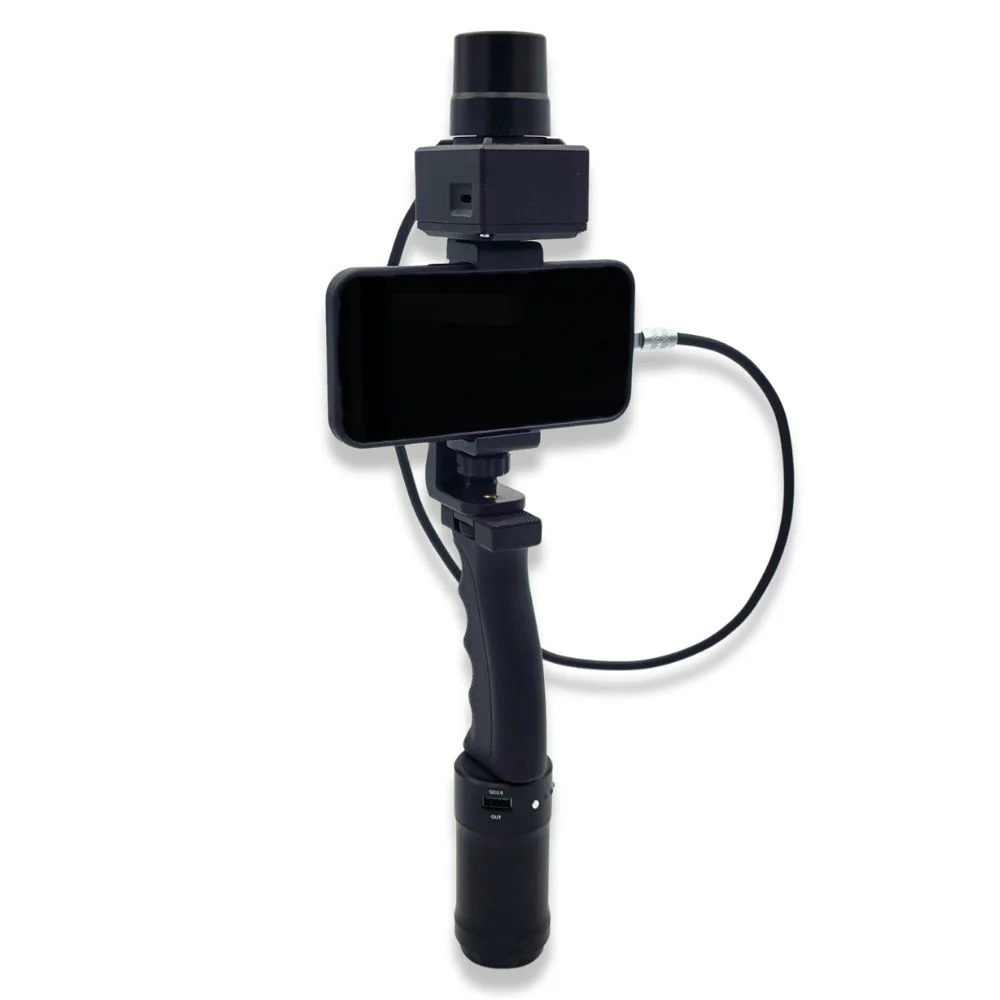

This RTK smart antenna is designed for handheld surveying in combination with a smartphone. Our solution differs from others by offering the ability to connect a PowerBank or another external power source for fast charging during operation.

Thanks to the integration of the Septentrio mosaic-X5 receiver, our device can deliver RTK fixes even under tree canopy and in dense urban environments.

The device we developed can be used in construction, landscape design, cartography (e.g., for OpenStreetMap), and other applications.

---

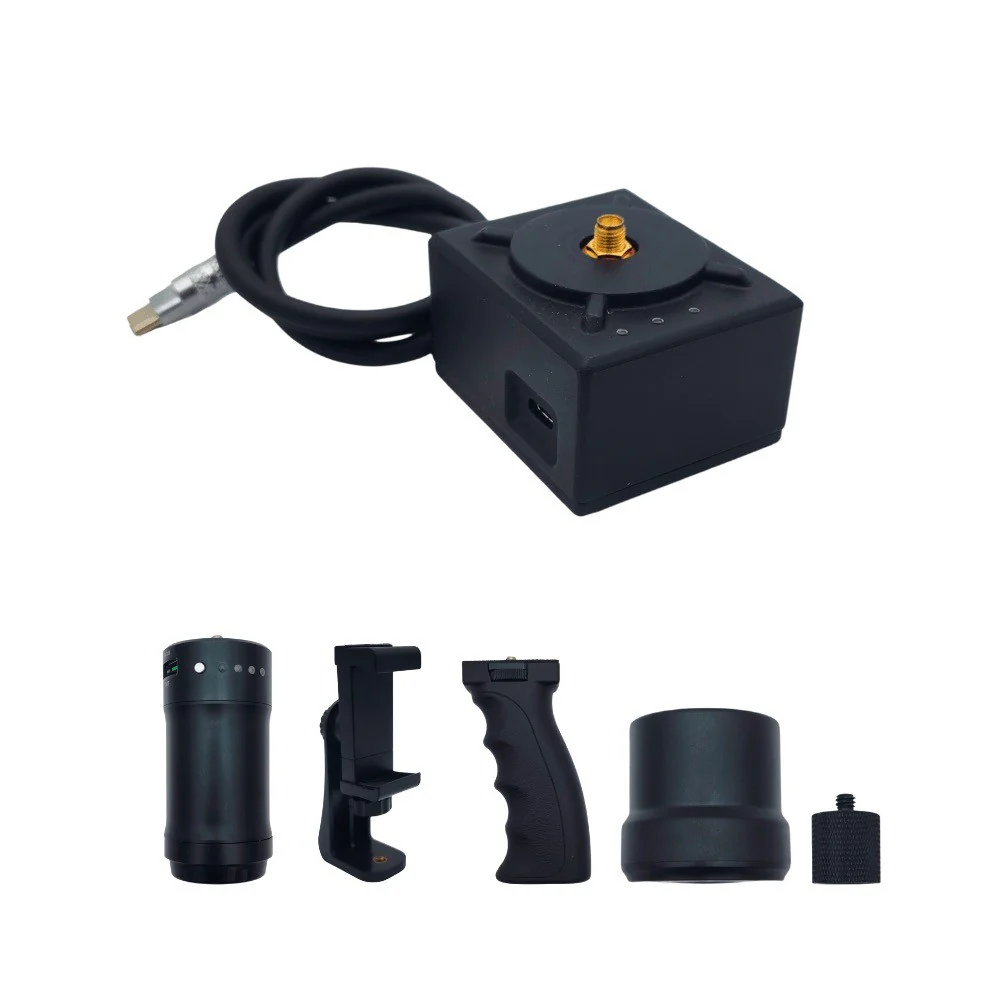

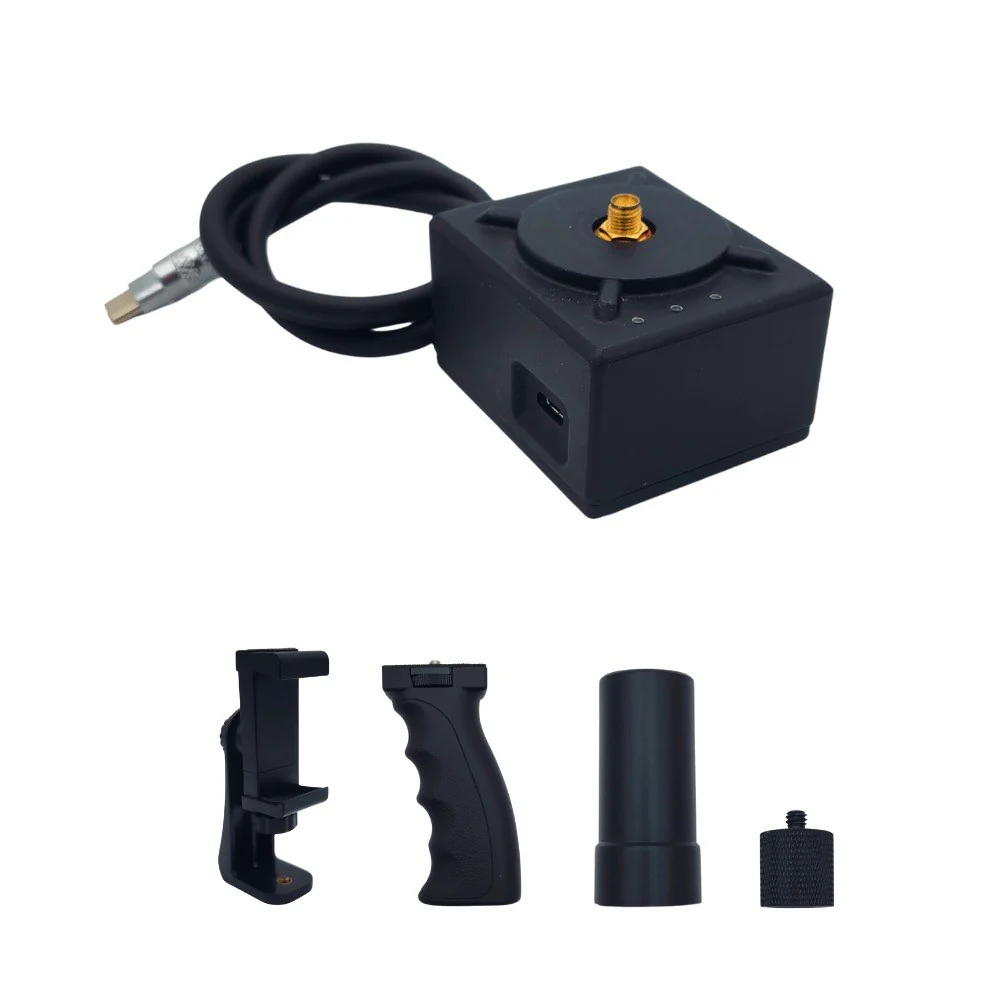

Key Features:

• Smartphone holder
• Plastic enclosure with an integrated 30 cm USB-C cable for smartphone connection
• USB-C port for simultaneous charging of the connected smartphone via Power Delivery 3.0 protocol
• SMA connector for external antenna input
• SD card connector inside for data logging (up to 32 GB supported)

• Integrated low-noise 3.3 V voltage regulator
• Purple Power LED, Green PVT LED (GPLED), Orange RTK LED (GPLED2). GPLED/GPLED2 functions are configured in the receiver
• Evaluation software: RxTools for PC
• Mounting: 1/4" photographic tripod, 5/8" threaded survey pin
• Dimensions: 62 × 55 × 35 mm
• Weight: 105 g
• IP55 protection
• Fully assembled, tested, and ready for use

mosaic-X5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver

mosaic-X5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+: Advanced Interference Monitoring and Mitigation, offers built-in protection against intentional and unintentional jamming and spoofing using a sophisticated system of sampling and mitigation mechanisms. In robotic devices neighboring electronics can produce RF radiation which interferes with GNSS signals. AIM+ offers protection against such interference resulting in faster set-up time and robust continuous operation.

Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution. Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.
