Budget M10 RTK InCase PIN GNSS receiver board with USB C and SMA
Key Features
- High-precision Bynav M10 GNSS module
- Compact, lightweight design
- External antenna connector
- Concurrent reception
- Centimeter-level RTK accuracy
- Energy-efficient and robust
- Compatible with PX4 and ArduPilot

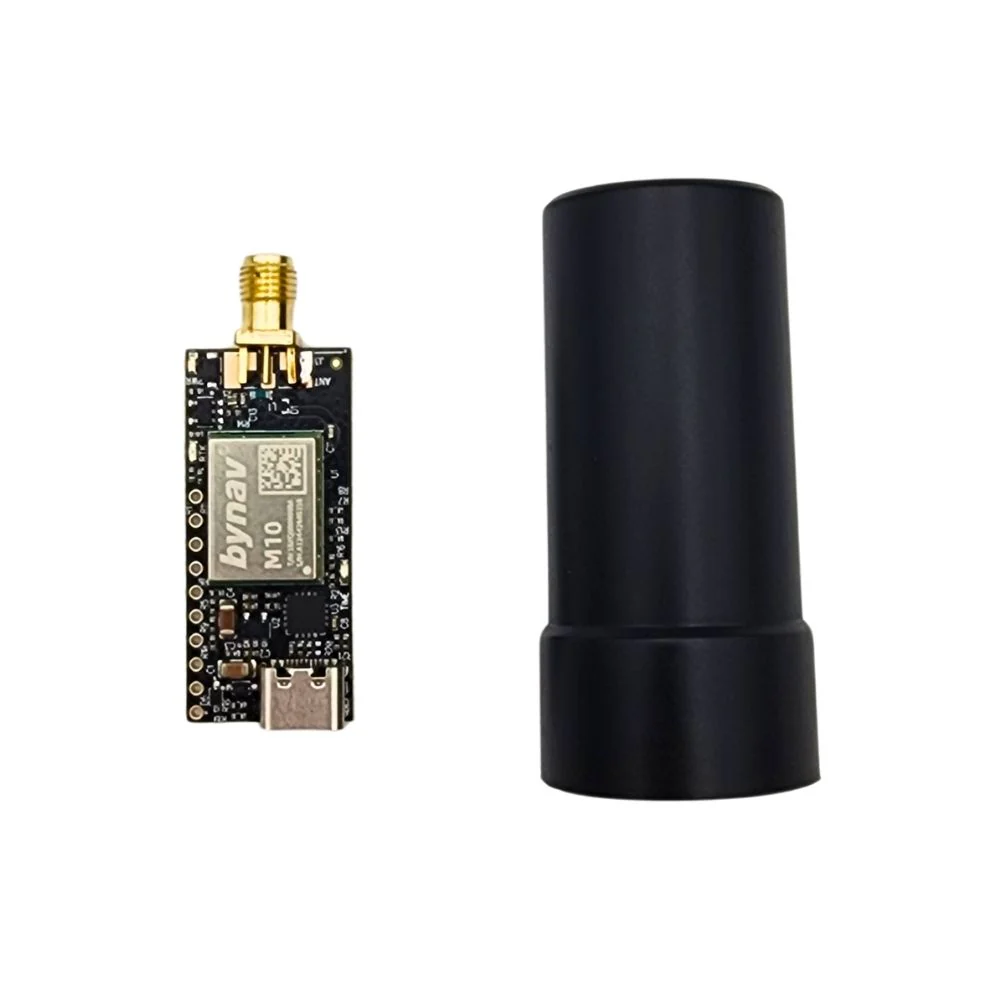

The M10 ultraLight is a compact, high-performance all-band RTK receiver based on the Bynav M10 GNSS module. Designed for UAVs, robotics, surveying instruments, and autonomous platforms, it delivers fast RTK convergence and centimeter-level positioning accuracy in a lightweight and power-efficient form factor.
Optimized for professional applications, the M10 ultraLight combines robust design with reliable performance, ensuring precise positioning even in challenging or obstructed environments.
General Specifications
- USB C connector
- SMA antenna connector for GNSS antenna attachment
- Power supply: 5 VDC
- LEDs: Power: violet; RTK: orange; Time pulse: green
- Compact, durable enclosure with mounting base - purpose-built for UAVs and robotics
- BY_Connect Evaluation Software
- Extensive visualization and evaluation features
- Fully assembled and ready to use
Physical Characteristics

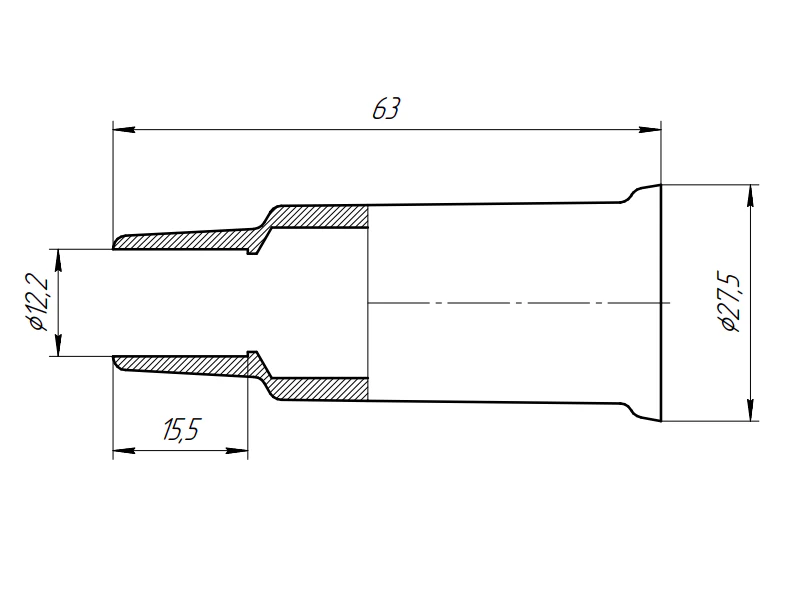

- Dimensions:
Device: 63 × Ø27.5 mm
Device with antenna: 122 × Ø 27.5 mm
Device on mounting base, with antenna: 208 × Ø 27.5 mm - Weight:
Device: 13.3 g
Device with antenna: 30.8 g
Device on mounting base, with antenna: 38.3 g - Water and Dust Resistance: IP54
- Operating Temperature: -10 °C ~ +60 °C
- Connector type: Type-C, SMA
- Mounting Options: Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, and ready for use

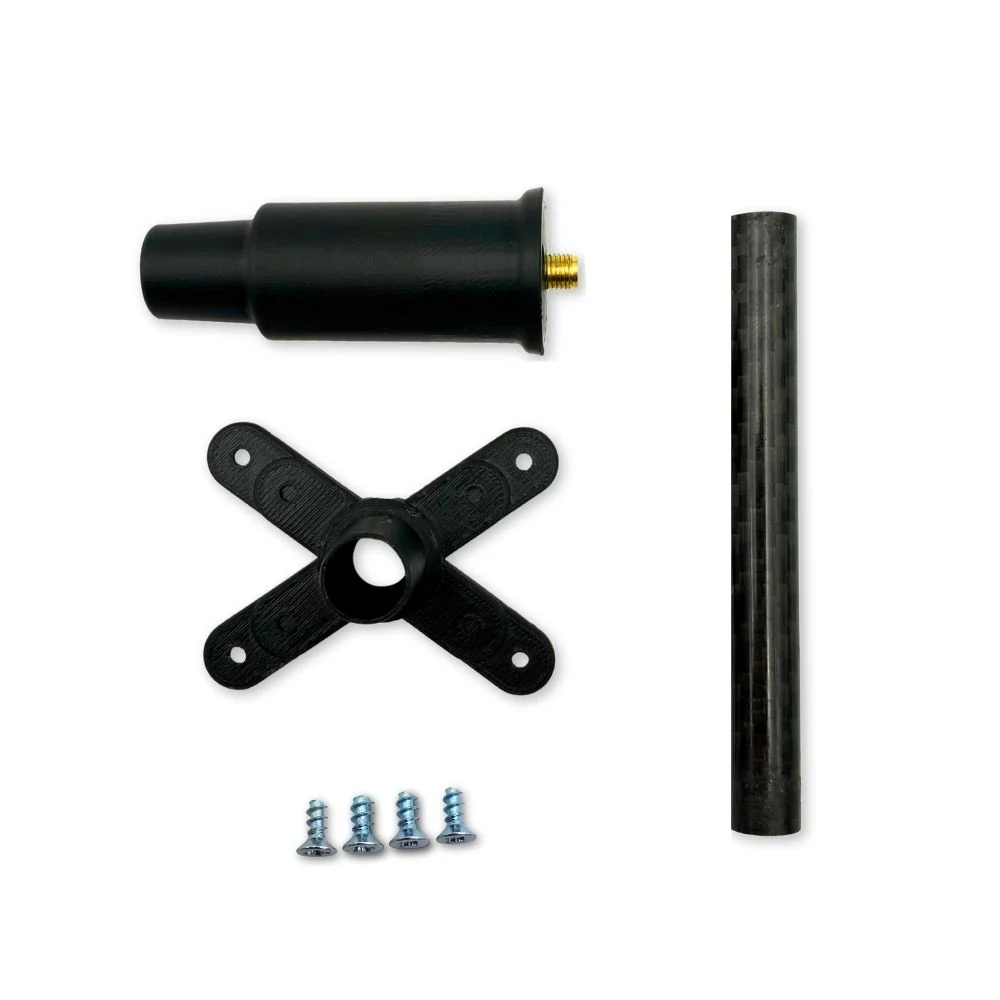

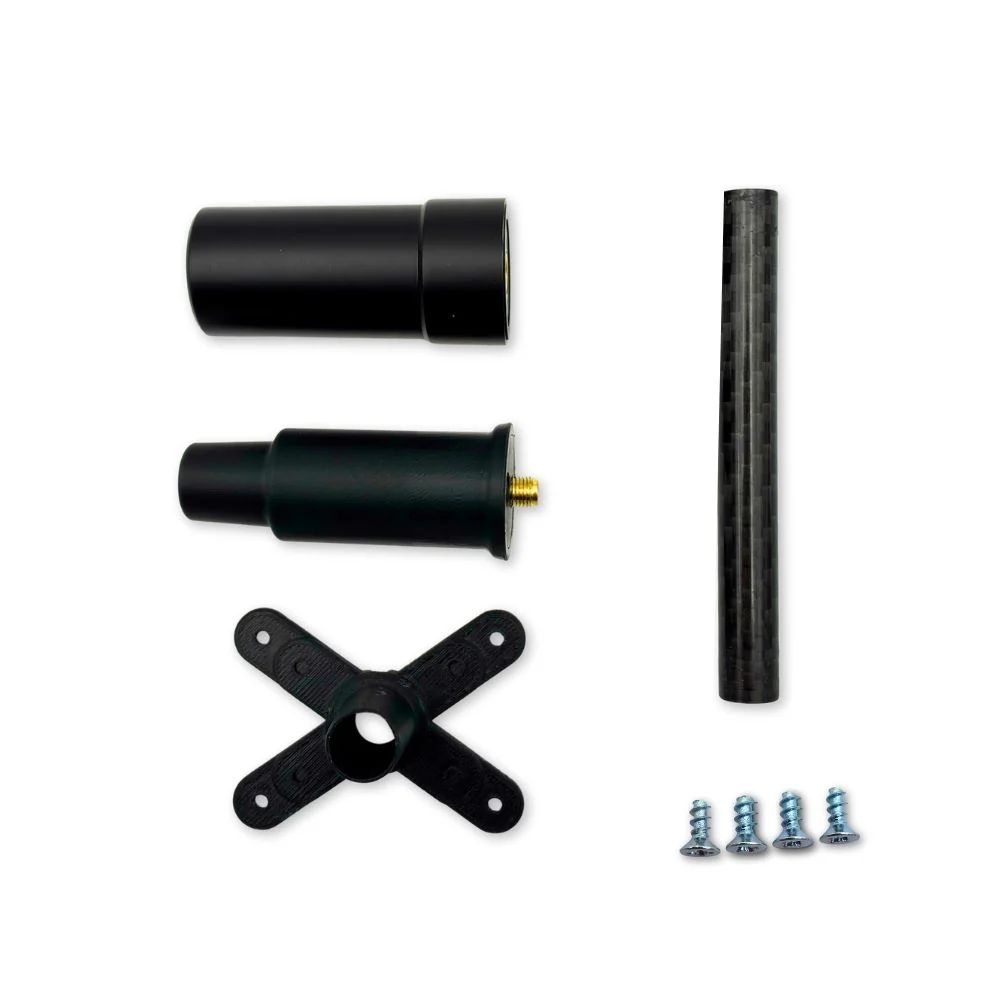

Kit includes
- RTK receiver – 1 piece
- L1/L2/L5 Multiband RTK GNSS Active Quad Helix Antenna - 1 piece
- Cable 400mm JST GH male 6 pin to 6 pin compatible with Pixhawk – 1 piece
- Extender 100 mm - 1 piece
- 3D printed mounting - 1 piece
