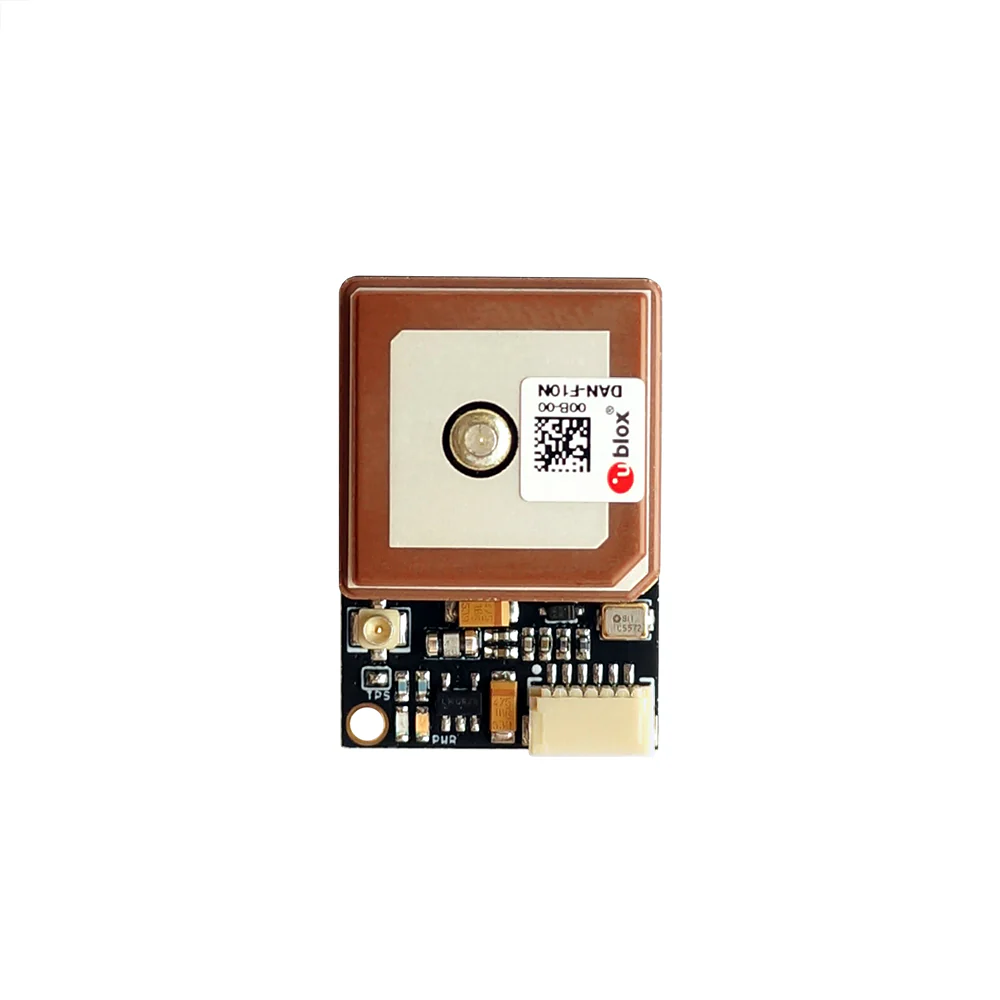

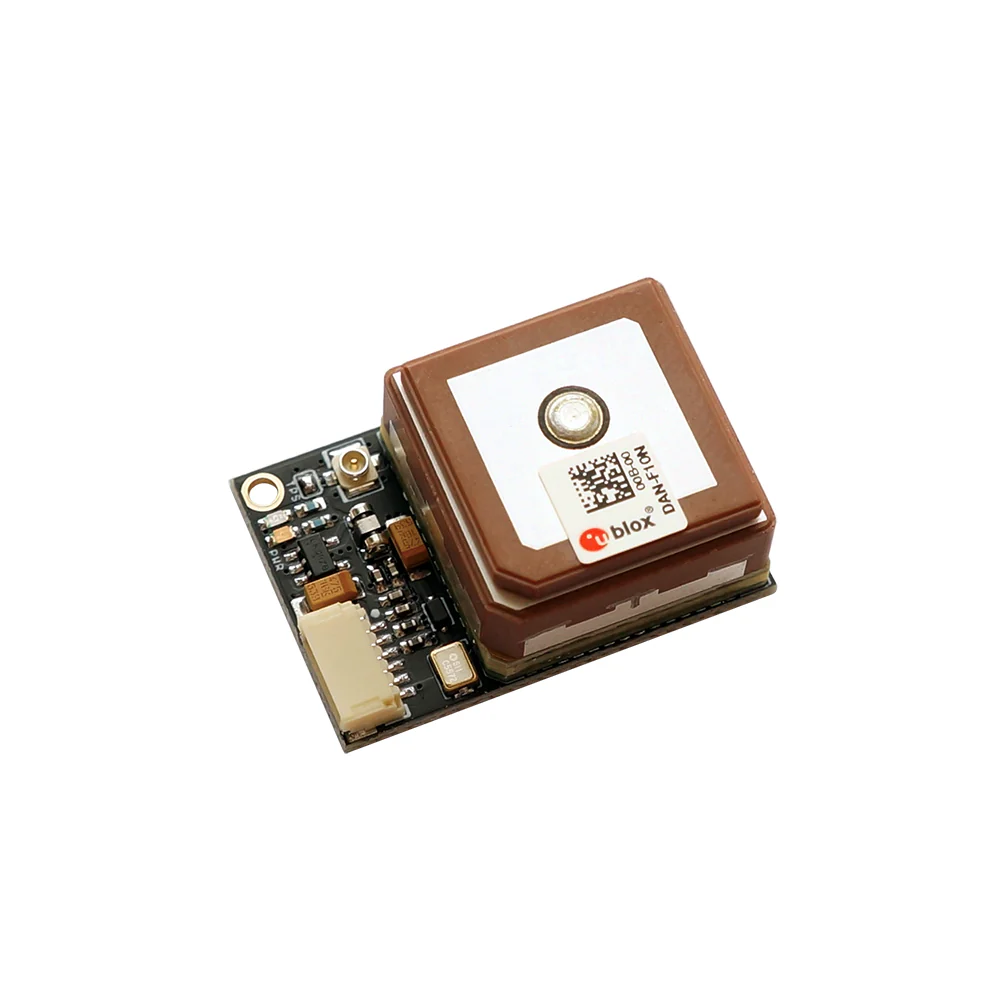

DAN-F10N L1/L5 dual-band smart GNSS receiver

DAN-F10N L1 L5 dual-band receiver with antenna. For your UAV systems, Robots, RC, FPV or other projects. Designed for integration in your systems.

DAN-F10N is a dual-band patch antenna module based on the u-blox F10 GNSS platform, which uses the L1/L5 GNSS bands to provide robust meter-level positioning accuracy in challenging environments. Using u-blox F10 proprietary dual-band multipath mitigation technology, the DAN-F10N module utilises the best signals from the L1/L5 bands to achieve better accuracy in urban environments. The DAN-F10N module's robust SAW-LNA-SAW RF architecture and the additional notch filter (LTE B13) in L1 RF path ensure the best possible out-of-band interference mitigation. It is well suited for designs with a nearby cellular modem.

The future-proof DAN-F10N includes internal flash to enable firmware upgradability. It also supports antenna switch function and can optionally be connected to an external dualband GNSS antenna. The DAN-F10N is designed as a surface mount device, allowing for automated manufacturing.  ncorporating the DAN-F10N dual-band antenna module into customer designs is easy and straightforward thanks to the integrated antenna, robust RF design, simple interface and sophisticated interference suppression that ensures maximum performance even in GNSS-hostile environments. DAN-F10N provides customers with a turnkey solution for rapid time-to-market, while minimising design and manufacturing costs.
