ZED-X20P ultraLight RTK GNSS Smart Antenna

ZED-X20P ultraLight RTK GNSS Smart Antenna

UltraLight GNSS Smart Antenna for precision and RTK positioning

ZED-X20P ultraLight RTK GNSS Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful u-blox ZED-X20P module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters. Lightweight, powerful, and dependable — the ZED-X20P ultraLight RTK GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand uncompromised performance in a compact form factor.

Overview
With its advanced multi-band RF front-end, the ZED-X20P ultraLight Smart Antenna is capable of simultaneously tracking all major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data. In addition to RTK, the ZED-X20P also supports PPP (Precise Point Positioning), providing high-precision navigation even in areas without access to RTK base stations. Engineered for flexibility, it supports concurrent reception of GPS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Thanks to its exceptional sensitivity, fast acquisition times, and built-in interference suppression, the ZED-X20P ultraLight provides reliable, high-precision positioning where traditional receivers struggle.
Device Features:
  • Based on u-blox ZED-X20P GNSS module with integrated multi-band RF front-end and high-precision positioning engine
  • Supports on-chip RTK and PPP positioning across all major constellations and multiple frequencies
  • Advanced all-system multi-frequency RTK/PPP engine for robust centimeter-level accuracy
  • Low Noise Amplifier (LNA) integrated with the compact helical antenna
  • High Gain: 28 dB typ. from antenna
  • Axial ratio: 3 dB max.
  • Tight Phase Center Variation (PCV)
  • Power supply: 5 VDC
  • One optional UART
  • Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
Physical Characteristics:

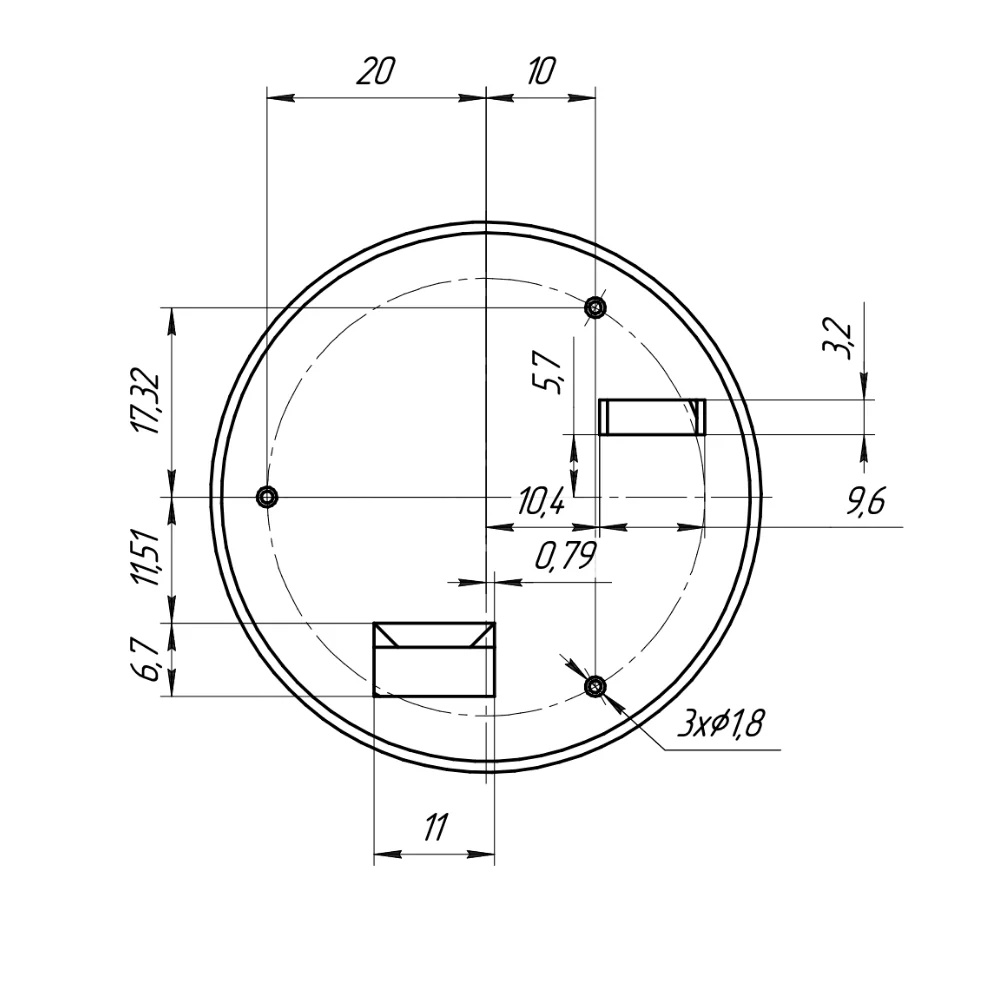

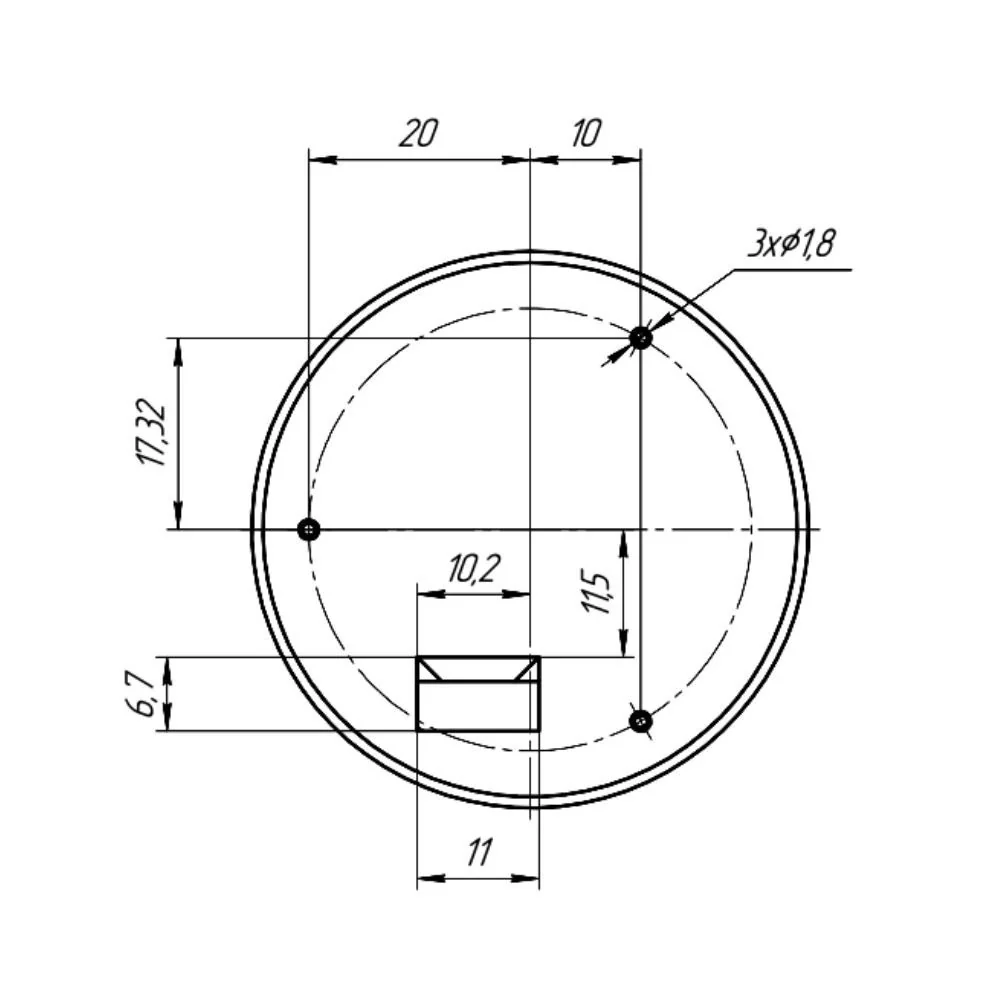

  • Dimension: Ø50x41 mm
  • Weight: 34 gr.
  • IP Rating: IP55
  • Operating Temperature: -10 °C ~ +60 °C

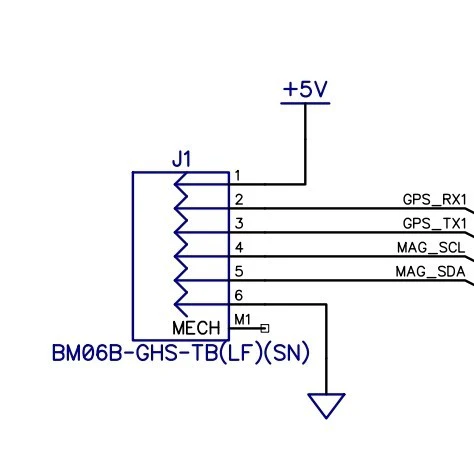

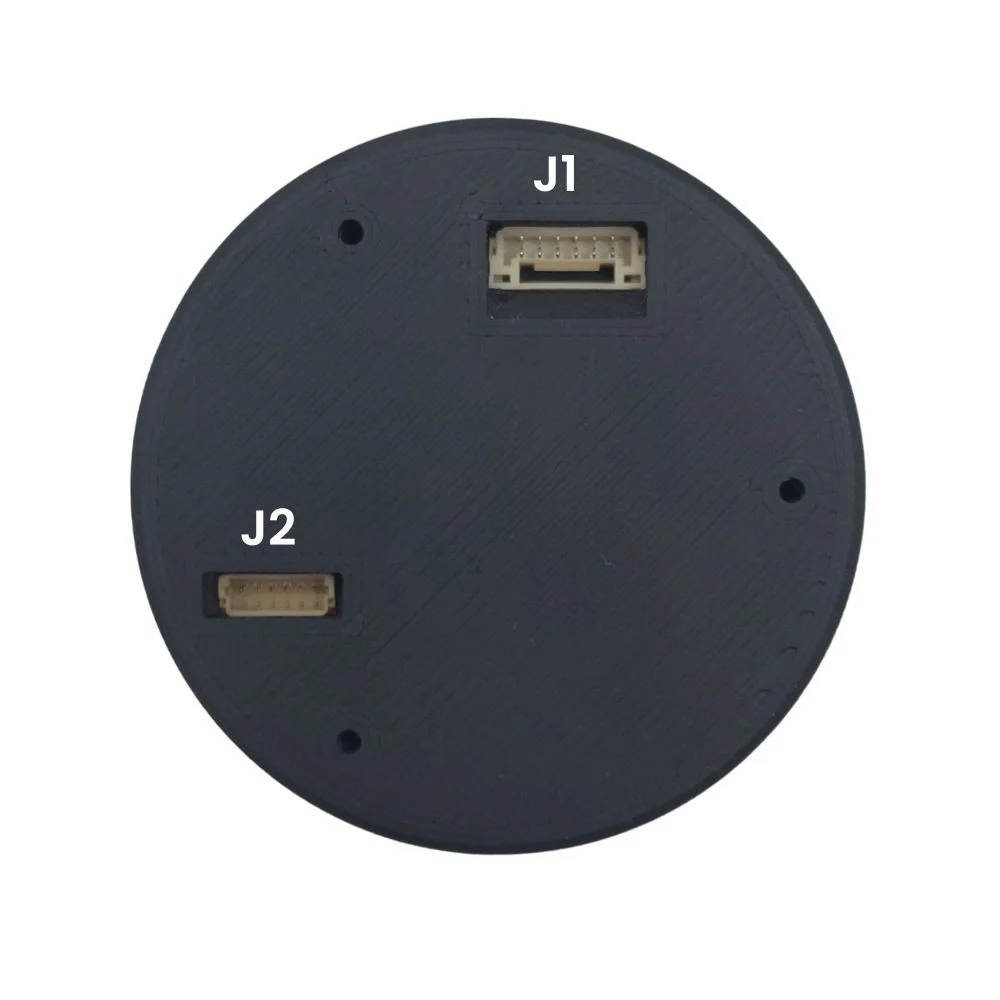

  • Connector type: JST SH 6 pin, JST GH 6 pin
  • Mounting Options: Waterproof 3M double-sided tape, Screw mount
  • Kit: Smart antenna, Waterproof 3M double-sided tape, 3 screw
  • RoHS & Reach Compliant
  • Fully assembled, tested, sealed, and ready for use
Kit included:
  • Smart antenna – 1 piece
  • Cable JST GH 1.25 6 pin to 6 pin 200mm – 1 piece
  • Cable JST SH 1.0 6 pin to 6 pin 100 mm – 1 piece
  • Waterproof 3M double-sided tape – 1 piece
  • Screws 2.5x6 – 3 pieces
Select Communication Interfaces
From $130.42

Original: $372.62

-65%
ZED-X20P ultraLight RTK GNSS Smart Antenna—

$372.62

$130.42

Product Information

Shipping & Returns

Description

UltraLight GNSS Smart Antenna for precision and RTK positioning

ZED-X20P ultraLight RTK GNSS Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful u-blox ZED-X20P module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters. Lightweight, powerful, and dependable — the ZED-X20P ultraLight RTK GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand uncompromised performance in a compact form factor.

Overview
With its advanced multi-band RF front-end, the ZED-X20P ultraLight Smart Antenna is capable of simultaneously tracking all major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data. In addition to RTK, the ZED-X20P also supports PPP (Precise Point Positioning), providing high-precision navigation even in areas without access to RTK base stations. Engineered for flexibility, it supports concurrent reception of GPS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Thanks to its exceptional sensitivity, fast acquisition times, and built-in interference suppression, the ZED-X20P ultraLight provides reliable, high-precision positioning where traditional receivers struggle.
Device Features:
  • Based on u-blox ZED-X20P GNSS module with integrated multi-band RF front-end and high-precision positioning engine
  • Supports on-chip RTK and PPP positioning across all major constellations and multiple frequencies
  • Advanced all-system multi-frequency RTK/PPP engine for robust centimeter-level accuracy
  • Low Noise Amplifier (LNA) integrated with the compact helical antenna
  • High Gain: 28 dB typ. from antenna
  • Axial ratio: 3 dB max.
  • Tight Phase Center Variation (PCV)
  • Power supply: 5 VDC
  • One optional UART
  • Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
Physical Characteristics:
  • Dimension: Ø50x41 mm
  • Weight: 34 gr.
  • IP Rating: IP55
  • Operating Temperature: -10 °C ~ +60 °C
  • Connector type: JST SH 6 pin, JST GH 6 pin
  • Mounting Options: Waterproof 3M double-sided tape, Screw mount
  • Kit: Smart antenna, Waterproof 3M double-sided tape, 3 screw
  • RoHS & Reach Compliant
  • Fully assembled, tested, sealed, and ready for use
Kit included:
  • Smart antenna – 1 piece
  • Cable JST GH 1.25 6 pin to 6 pin 200mm – 1 piece
  • Cable JST SH 1.0 6 pin to 6 pin 100 mm – 1 piece
  • Waterproof 3M double-sided tape – 1 piece
  • Screws 2.5x6 – 3 pieces
