X20P GNSS RTK CORS Fanless Station

X20P All-constellation Multi-frequency High Precision RTK GNSS receiver

The ZED-X20P module integrates all-band GNSS with signal modernization and innovative positioning algorithms using Real-time Kinematics (RTK), PPP-RTK, and Precise Point Positioning* (PPP) technologies in a compact, energyefficient form factor. As the most reliable position sensor from the most trusted name in GNSS, ZED-X20P ensures unparalleled reliability and performance.

---

X20P GNSS RTK CORS Station features:

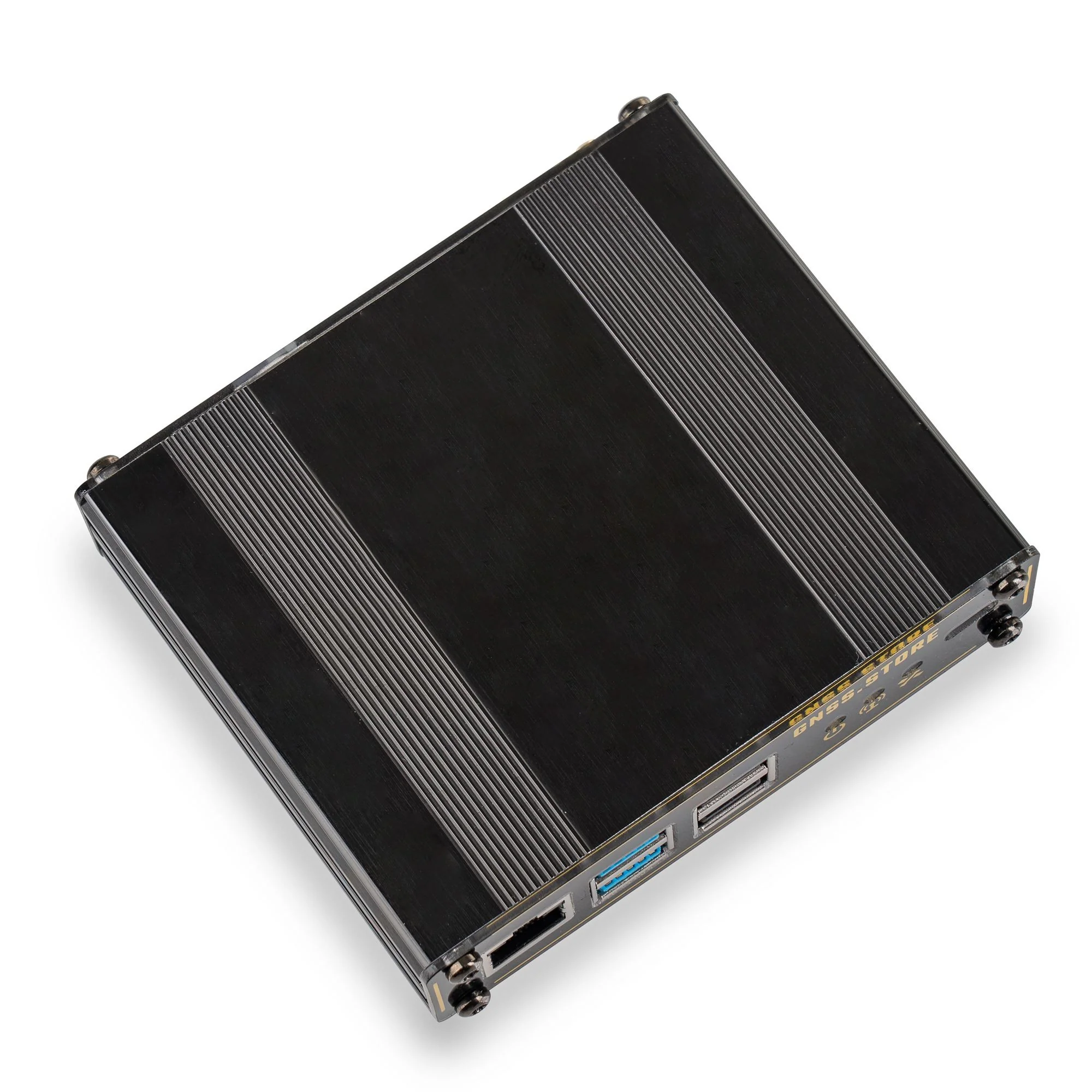

• Fanless setup, passive cooling
• Build-in RF splitter for direct connection in multi-receiver setup
• Raspberry-PI RPI4-MODBP-2GB
• BCM2711 SOC, ARM [email protected]
• WiFi 2.4 and 5GHz 802.11 b/g/n/ac, Bluetooth 5.0 BLE
• ELT_RtkBase full-featured software
• ELT_RTKBase User Guide
• microSD card 32GB with pre-installed software and documentation

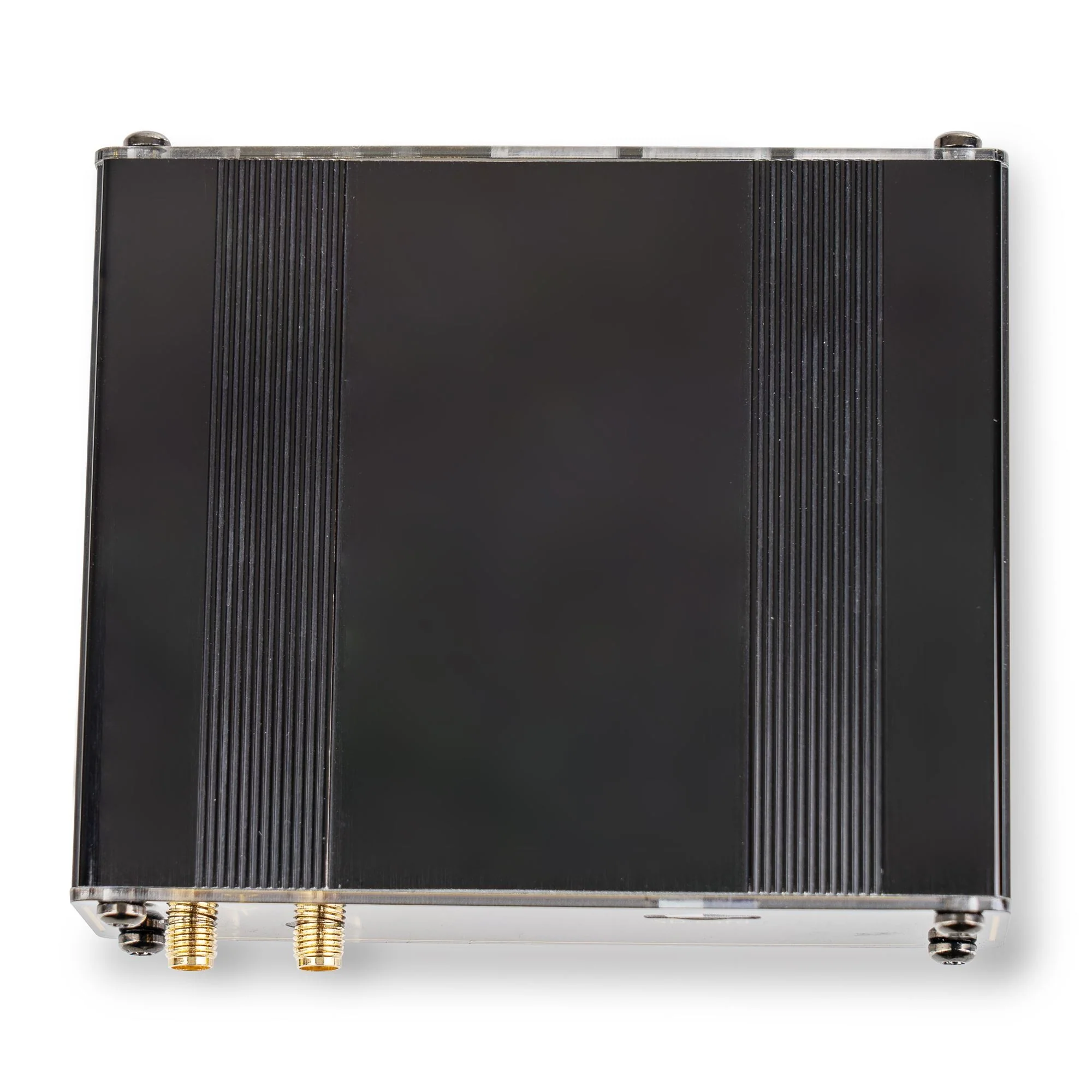

• GNSS antenna input with SMA connector
• Gigabit Ethernet port with optional PoE support
• PoE is compliant with IEEE 802.3af-2003
• Time pulse LED, Ethernet LED
• Backup supercapacitor
• Dimensions 110x95x30 mm
• Weight: 245/265 gr
• Fully assembled and ready to use
• Extensive mounting options - check accessories in the related products list
