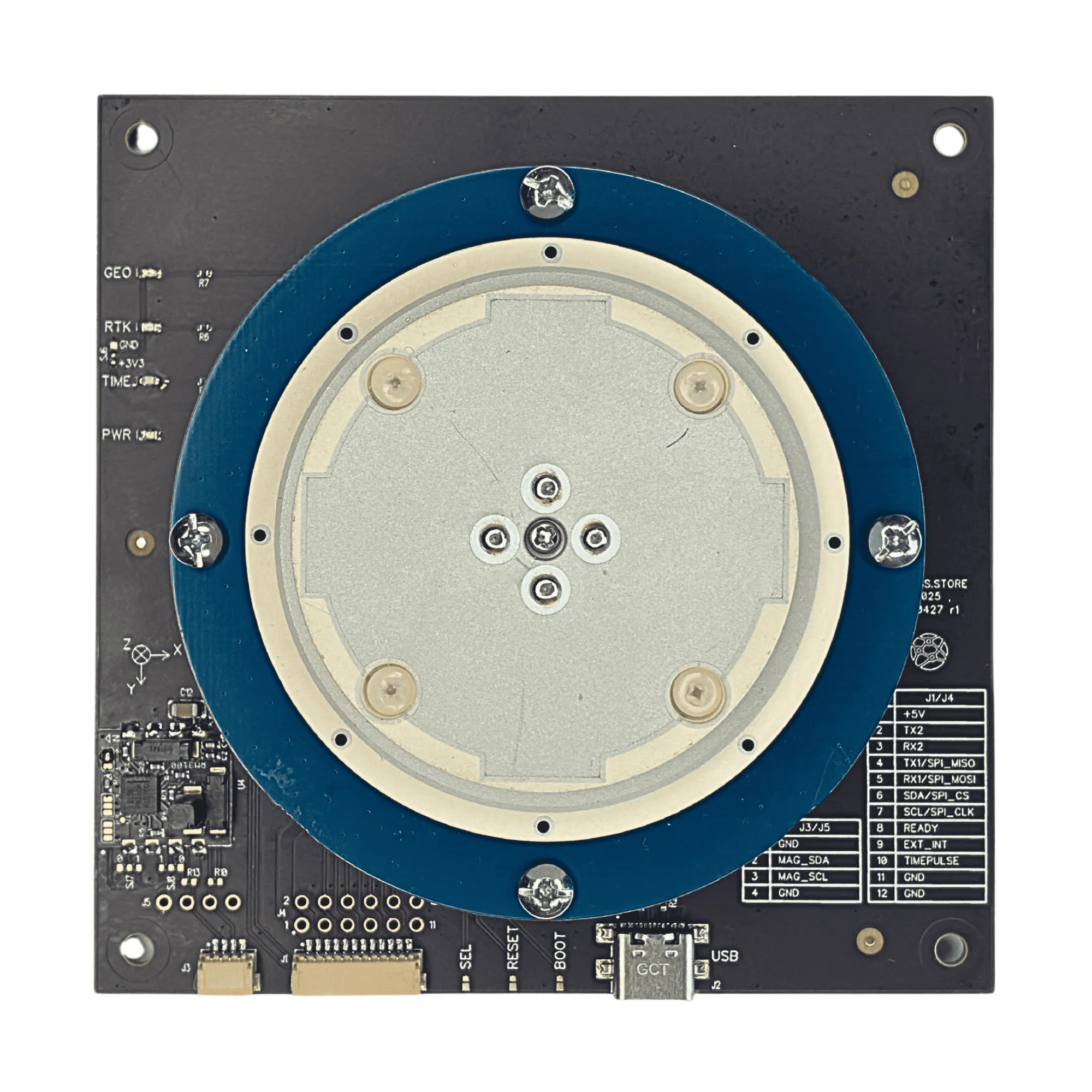

ZED-X20P GNSS Receiver with MultiBand antenna and EMI with RM3100

ZED-X20P All-Band all constellation GNSS receiver with high precision RM3100 magnetometer. Multi-band receiver delivers centimeter-level accuracy in seconds. Designed for easy integration in your system or robots

The ZED-X20P module integrates all-band GNSS with signal modernization and innovative positioning algorithms using Real-time Kinematics (RTK), PPP-RTK, and Precise Point Positioning* (PPP) technologies in a compact, energyefficient form factor. As the most reliable position sensor from the most trusted name in GNSS, ZED-X20P ensures unparalleled reliability and performance.

---

• Build-in Four-Star High-Precision Full-frequency 61mm patch antenna
• On-board low-noise 3.3V voltage regulator
• On-board RM3100 magnetometer

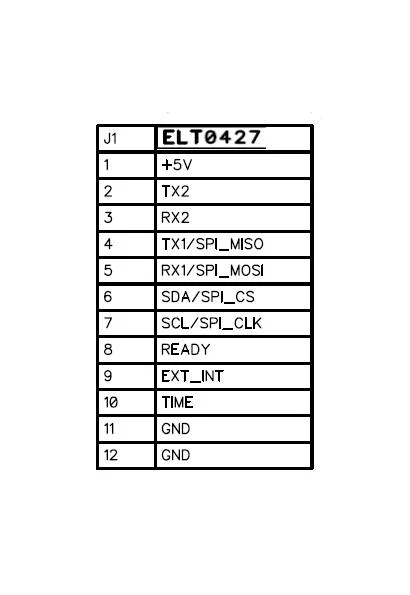

• USB,  UART (Tx, Rx), I2C, SPI interfaces
• USB C and two JST connectors
• Purple Power LED, green Time pulse LED, red PVT LED, orange RTK LED
• Extensive visualization and evaluation features
• Backup supercapacitor
• Dimensions 100x100 mm
• Weight: 152 gr.

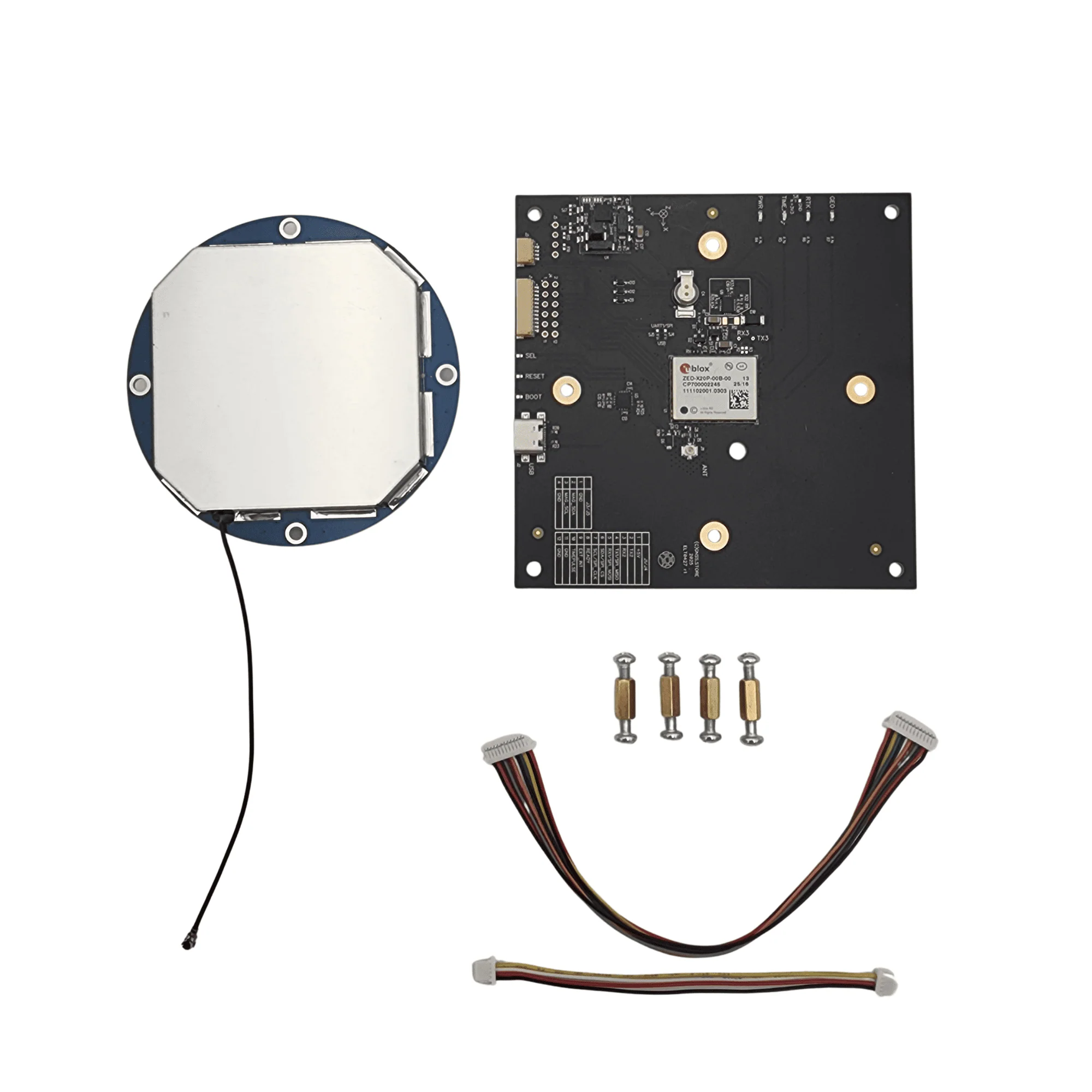

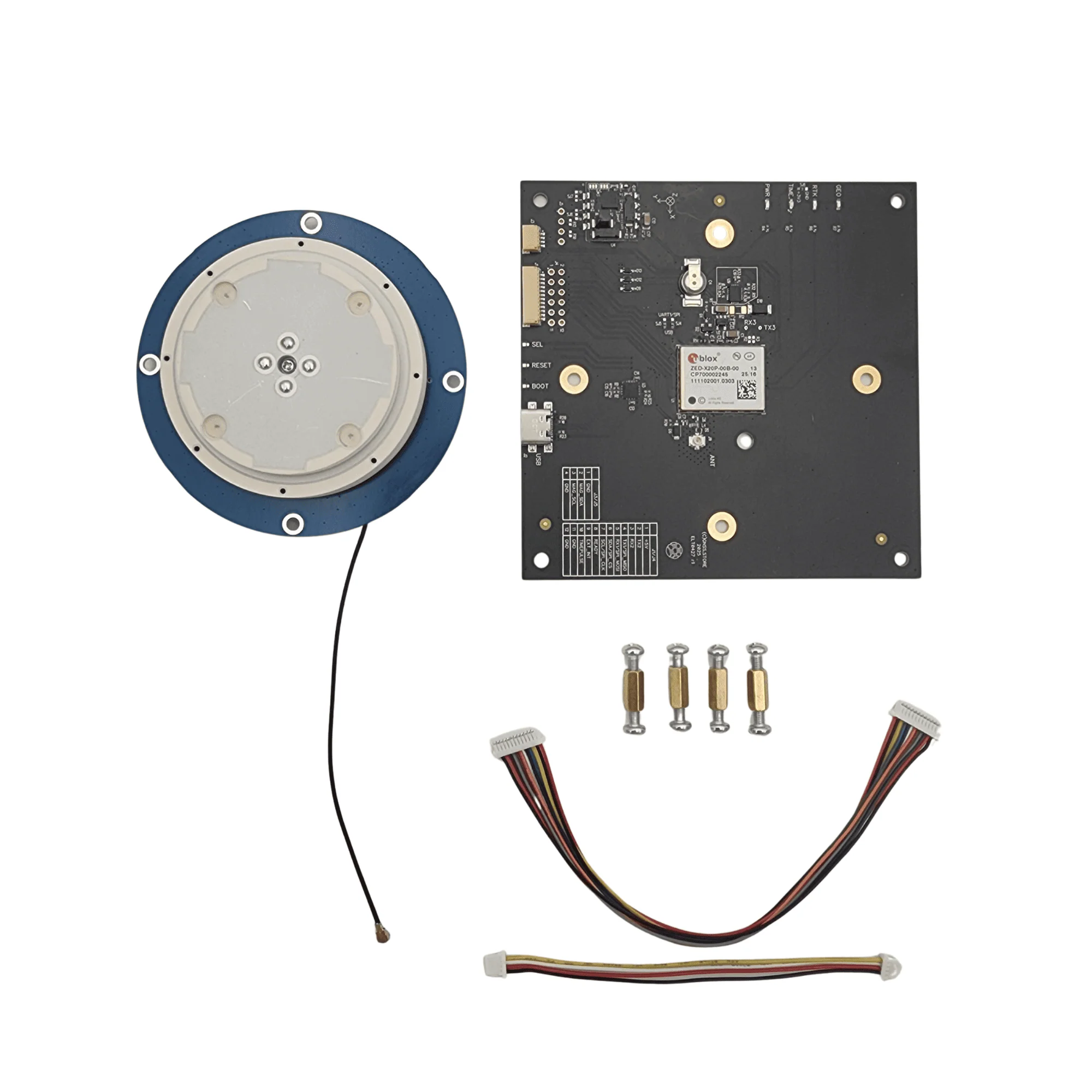

• Fully assembled and ready to use
