NEO-F10N L1/L5 INDUSTRIAL IP67 dual-band GNSS receiver

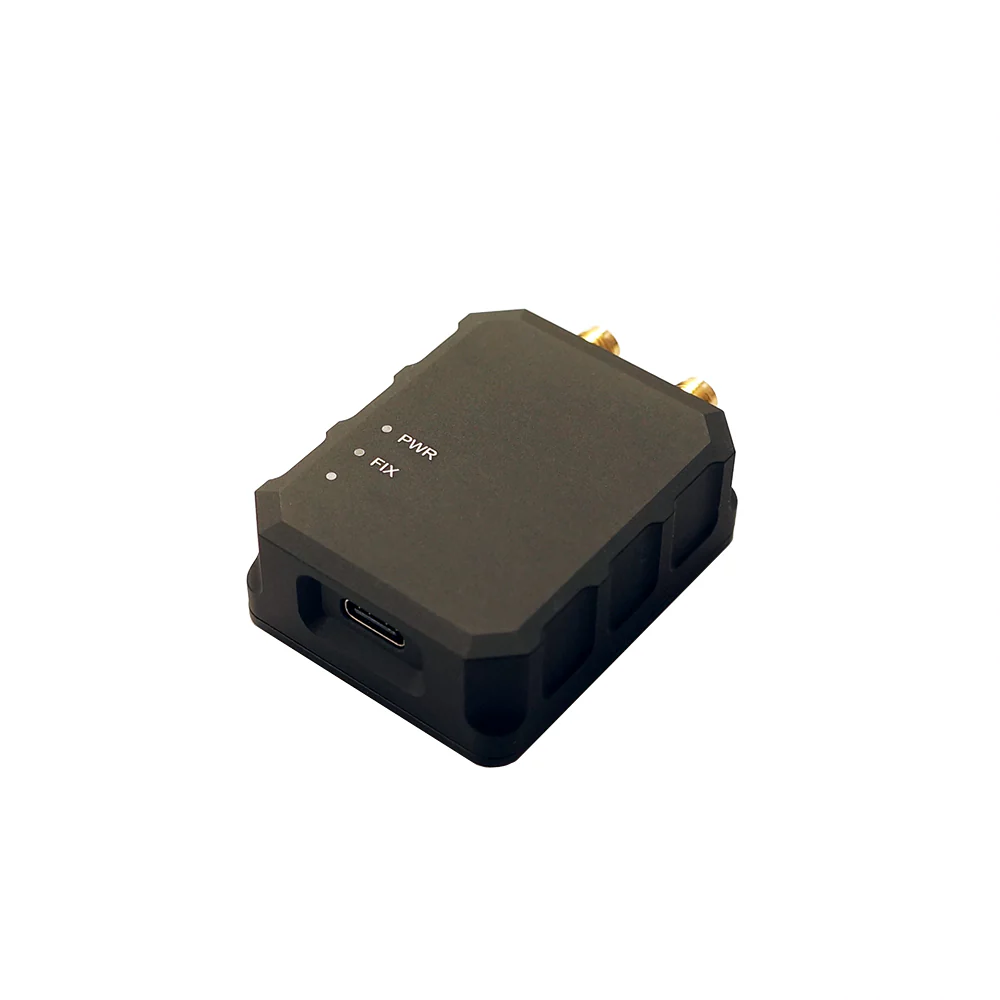

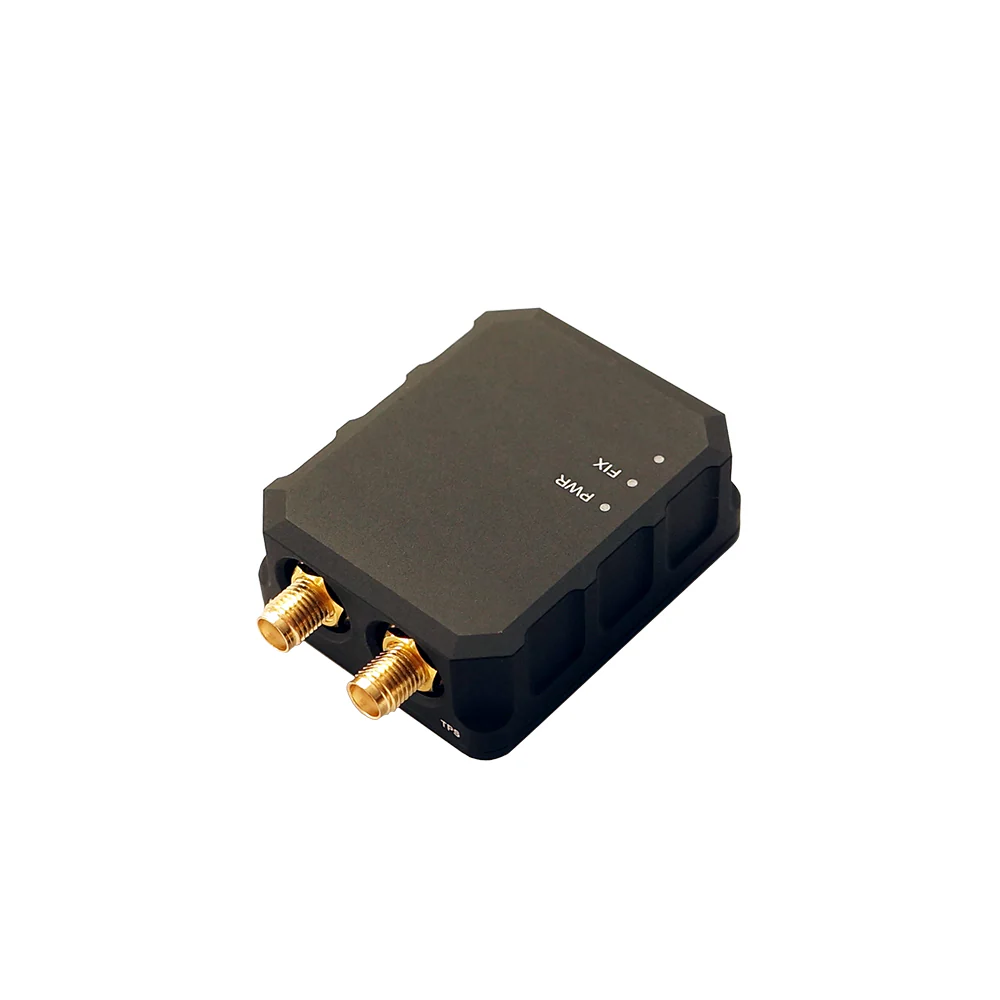

NEO-F10N INDUSTRIAL IP67 receiver with SMA antenna connectors and SMA for TPS out. Designed for your UAV systems, Robots, RC, FPV or other projects.
The NEO-F10N Evaluation board makes evaluating the high performance of the u-blox 10 positioning engine simple. The NEO-F10N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-F10N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested receiver for the NEO-F10N with SMA antenna connectors and TPS SMA connector.
The NEO-F10N is built on the u-blox F10 dual-band GNSS technology using L1/L5 GNSS bands, which provides solid meter-level position accuracy in urban areas. With its proprietary dual-band multipath mitigation technology, u-blox F10 uses the best signals from the L1/L5 bands to achieve a significantly better position accuracy in urban environments than with the L1 band only. Applications like vehicle tracking and micromobility benefit significantly. NEO-F10N offers a single antenna input. Two SAW filters in series with an LNA between them provide high robustness against RF interference from co-located cellular modems. The firmware is upgradeable and is highly configurable to support many different use cases.
- u-blox F10 engine GPS L1C/A, L5 GALILEO E1B/C, E5a BDS B1C, B2a QZSS L1C/A, L1S, L1Sb, L5 NavIC L5 SBAS L1C/A: EGNOS, GAGAN, MSAS, and WAAS
- SuperSense Indoor -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB C interface
- SMA antenna connectors
- SMA Time Pulse connector
- Power LED, Time Pulse LED
- u-center u-blox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions: 50x40x18 mm
- Weight 55 gramm
- Fully assembled and ready to use
- Working temperature: -40 °C ~ +85 °C
- Storage temperature: -55 °C ~ +95°C
- Humidity: 95% No condensation
- Vibration: MIL-STD-810F
- Shock: MIL-STD-810F
