RM3100 Professional Grade Magnetometer SPI or I2C
RM3100 Professional Grade Magnetometer:
Professional Grade Magnetometer RM3100 by GNSS.store is a ready-to-use and operational module that eliminates any noise in your magnetic field measurements for accurate heading and orientation calculations. Provide a heading reference to your drones so it can navigate through waypoints and eliminate magnetic disturbances due to motor coils and metal parts. This 3-axis magnetometer, based on PNI’s proprietary magneto-inductive technology, delivers high-performance resolution and repeatability, with over 10 times better resolution and over 20 times lower noise than the leading Hall Effect sensor.

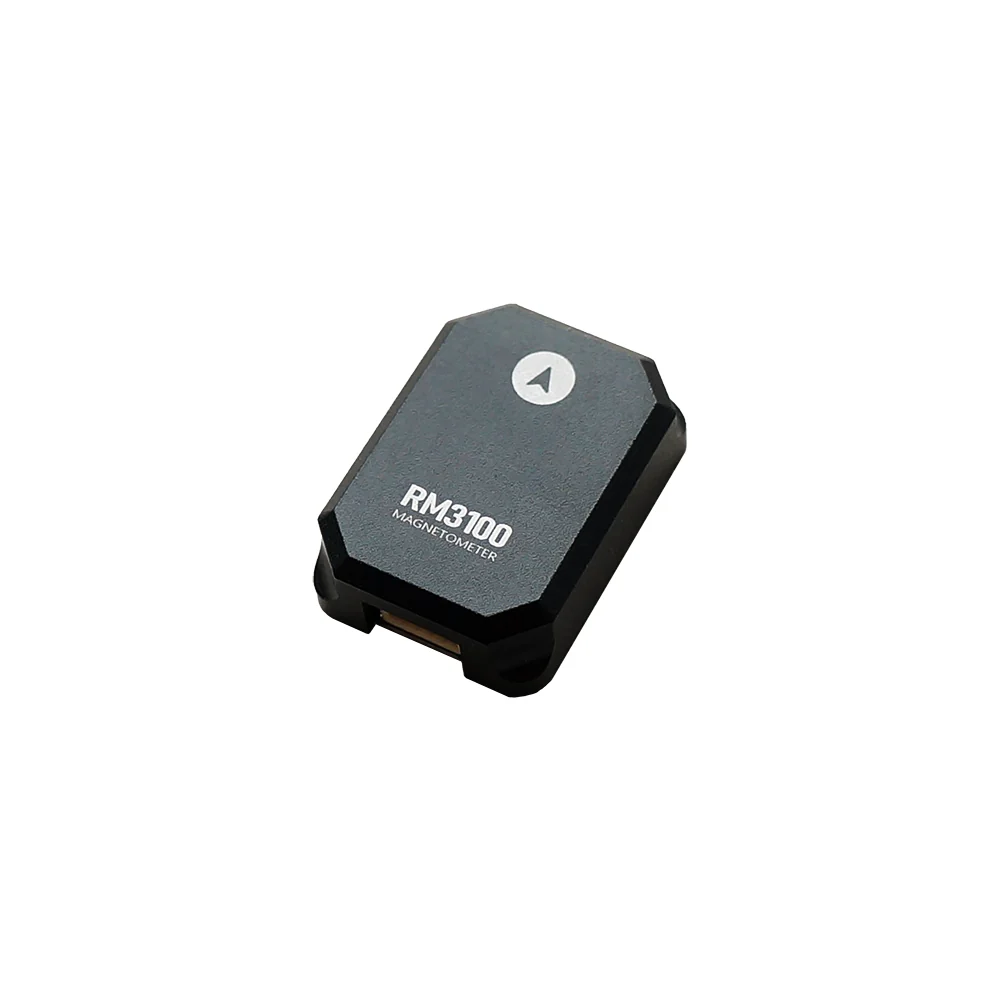

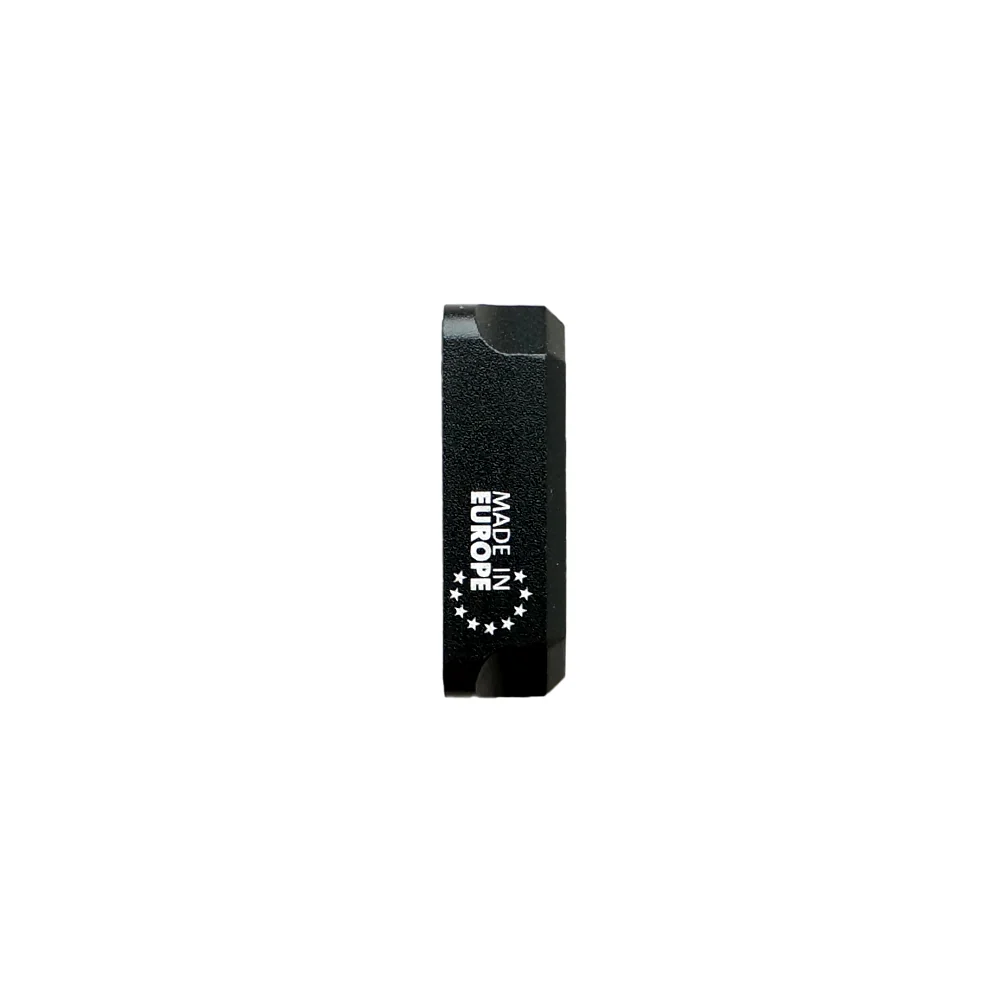

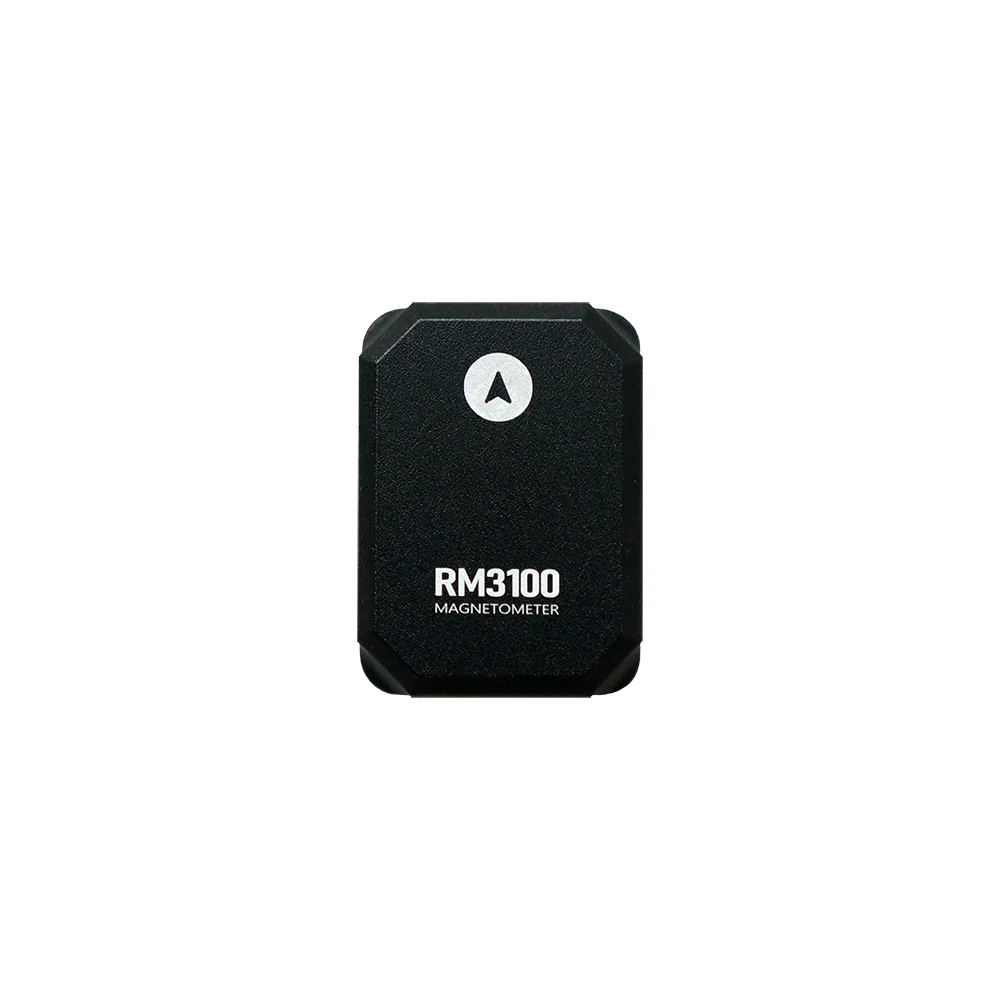

The RM3100 is a ready to use ultra light high-performance 3-axis magnetometer manufactured by GNSS store, designed to provide precise magnetic field measurements. It is widely used in applications such as navigation, robotics, geophysical surveys, and attitude control systems. The RM3100 stands out for its digital output, low power consumption, and high sensitivity, making it ideal for environments requiring accurate magnetic field detection. Aero grade non magnetic high strength enclosure.
Professional Grade Magnetometer RM3100 provides a very high level of resolution (10 nT), with low power consumption and no hysteresis and can be used for applications that require high accuracy. Use this module very easily without requiring temperature calibration.
Key Specifications:
| Magnetometer | RM3100 |
| Measurement Axes | 3 (X, Y, Z)> |
| Magnetic Field Range | ±800 µT |
| Resolution | 0.015 µT |

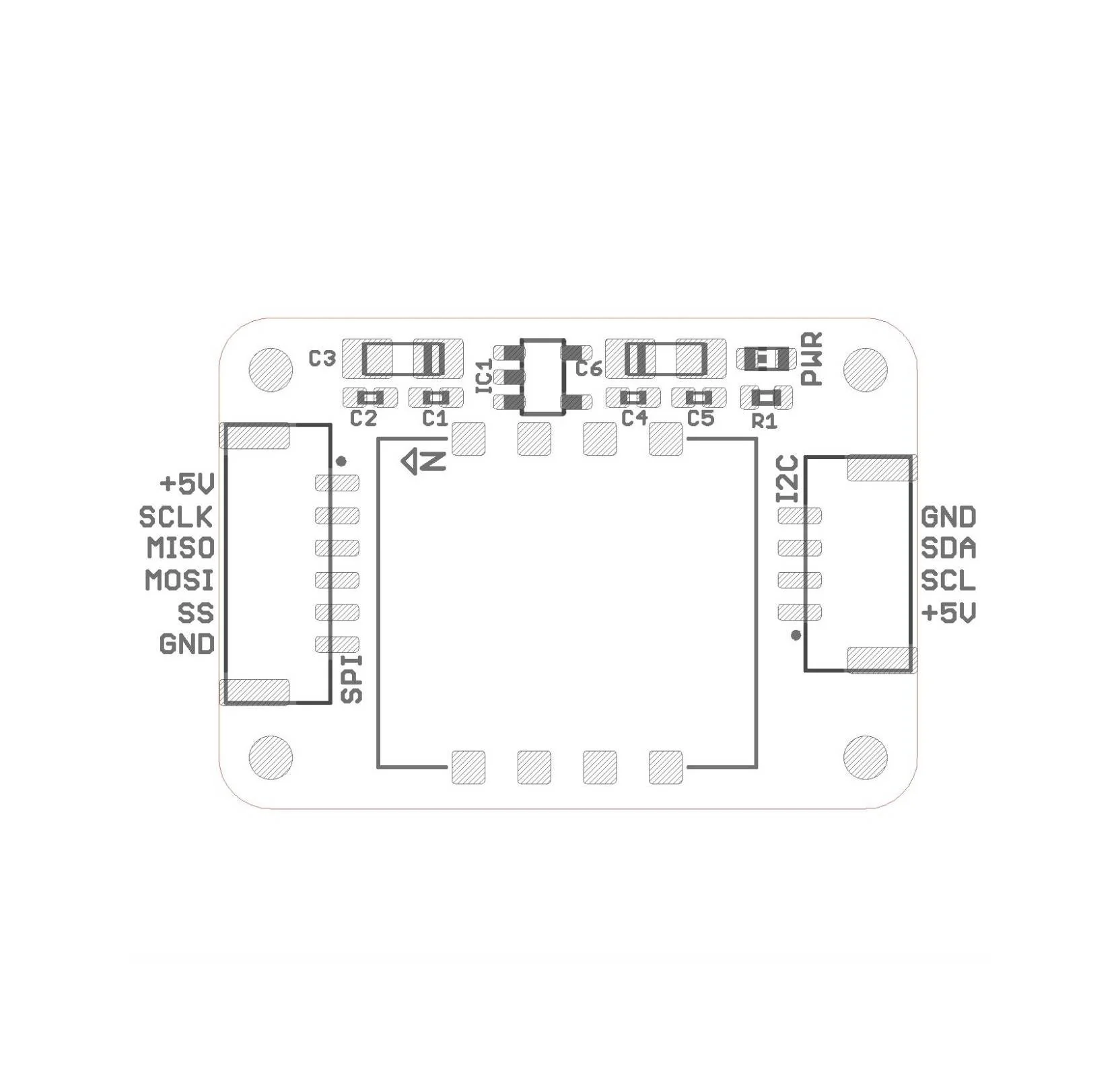

| Interface | I²C, SPI |
| Supply Voltage | 4.5-5.0V |
| Operating Current | 8 mA (typical) |
| Standby Current | 2 µA |
| Operating Temperature | -40°C to +85°C |
| Output Data Rate | Configurable (up to 600 Hz) |
| Weight | 5 g |
PLEASE select SPI or I2C interface when you place the order. Please also select I2C adress if you select I2C interface.
