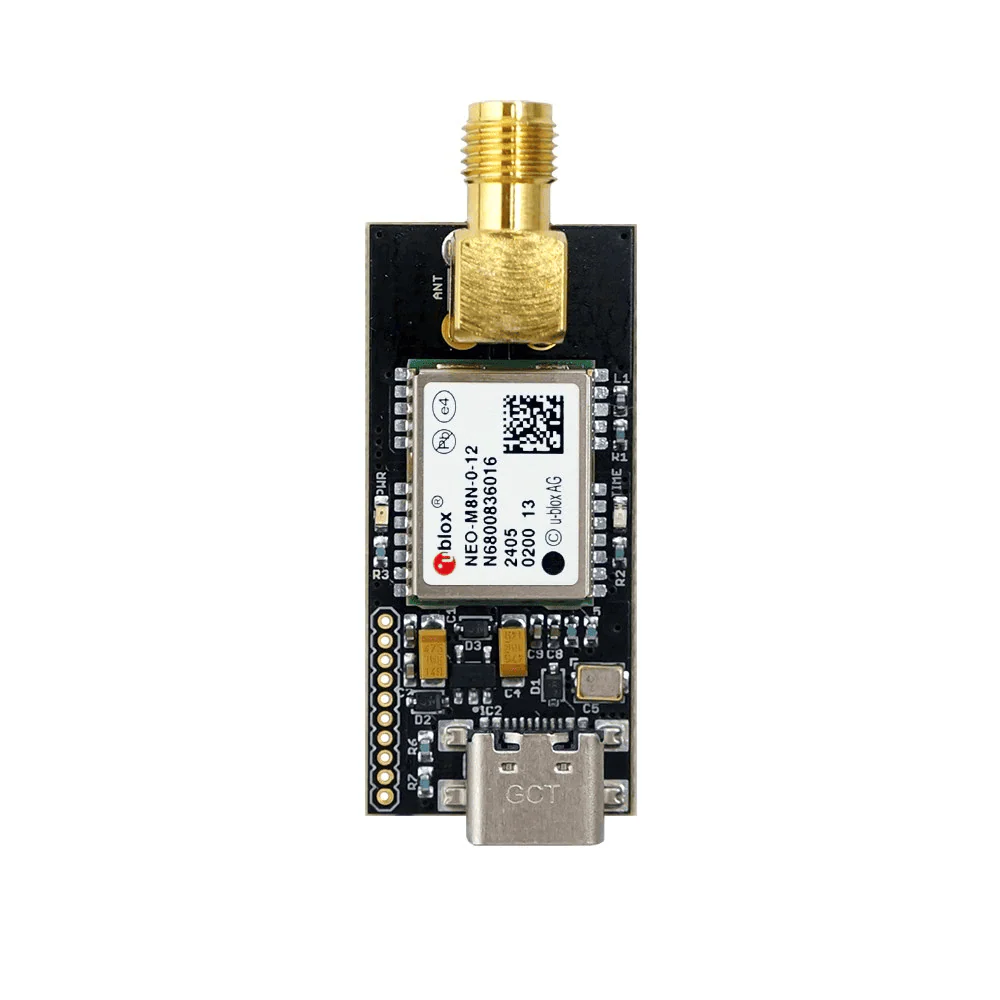

NEO-M8N GPS GNSS receiver board with SMA and USB C for UAV, Robots

NEO-M8N Reference Board with SMA antenna connector and USB C for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.

The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with SMA antenna connectors

---

• 72-channel u-blox u-blox M8 GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
• SuperSense Indoor GPS, -167dBm
• On-board low noise 3.3V voltage regulator

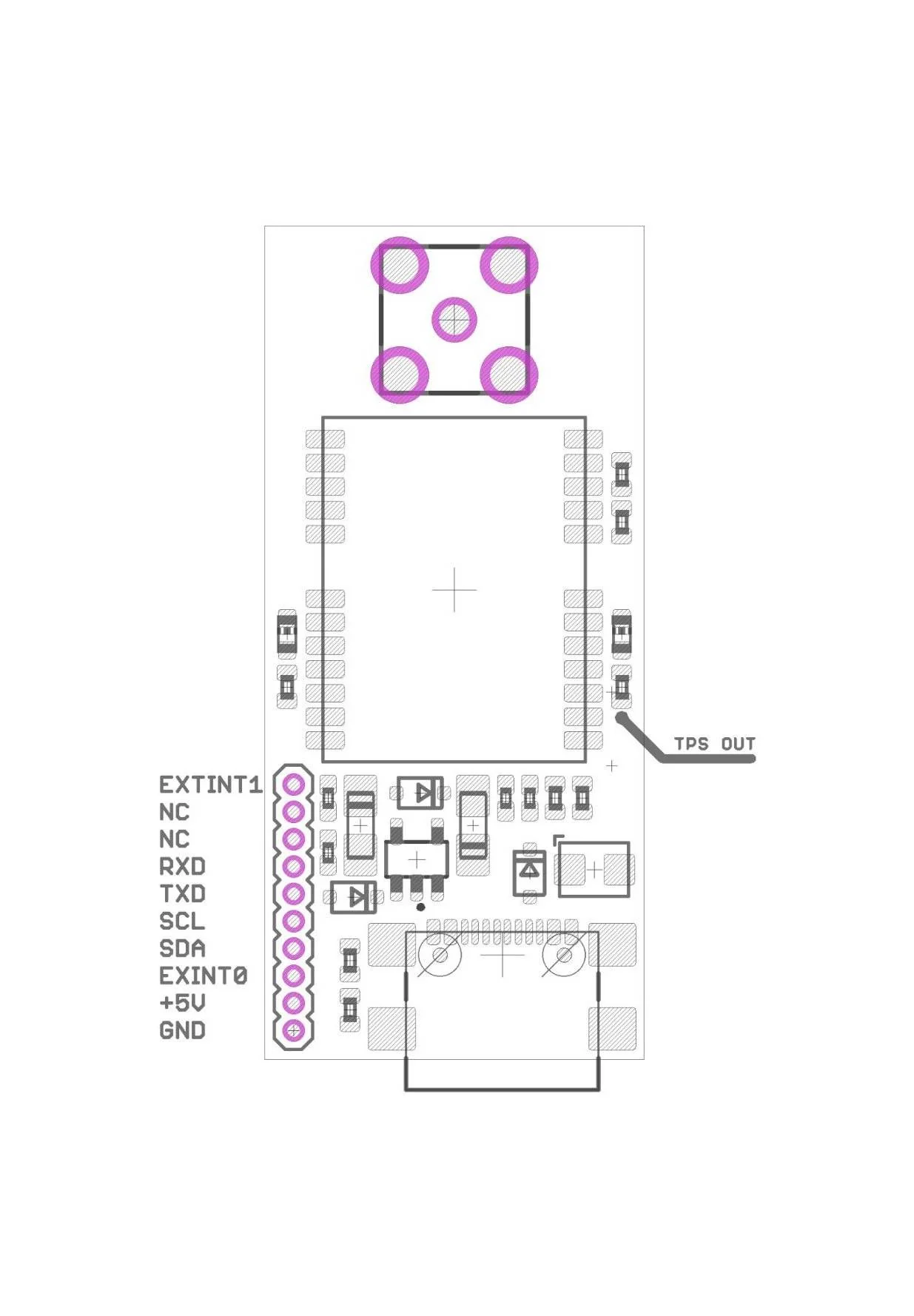

• USB, I2C (SDA,SCL) and UART (Tx, Rx)
• SMA antenna connector
• USB type C connector
• u-center Evaluation Software
• Extensive visualization and evaluation features
• Supports AssistNow Online and AssistNow Offline A-GPS services
• 1 TTL UART port, 1 I2C port,1 USB port
• Time pulse LED
• Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
• Supercapacitors for HOT module start
• Dimensions: 40x18 mm
• Weight: 8.1 gr.
• Fully assembled and ready to use
