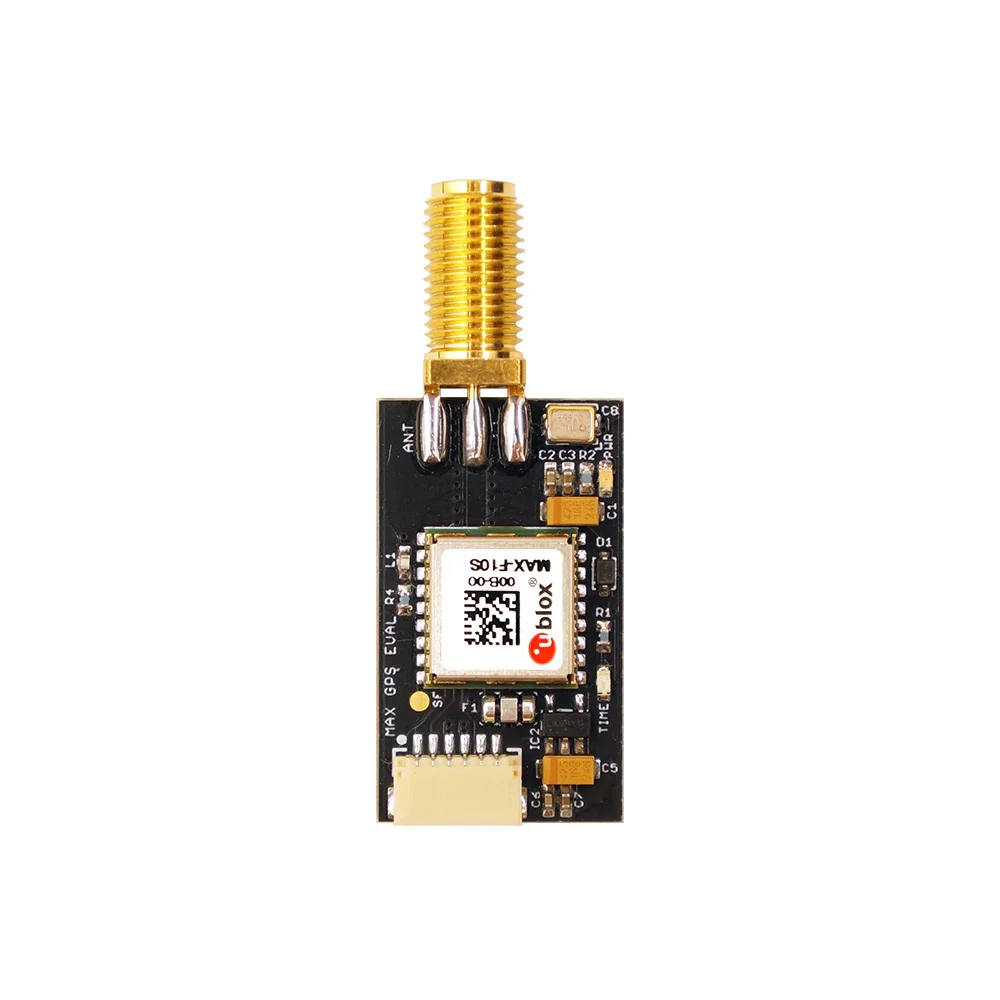

MAX-F10S L1/L5 dual-band GNSS receiver for sub meter-level accuracy with SMA connector

MAX-F10S L1/L5 dual-band GNSS receiver for sub meter-level accuracy in urban environments receiver Reference Board with SMA antenna connector for your mini UAV systems, Robots, RC, FPV or other projects. Ultra small and light.

The MAX-F10S module is built on the u-blox F10 dual-band GNSS technology using L1/L5 GNSS bands, which provides solid meter-level position accuracy in urban areas. With its proprietary dual-band multipath mitigation technology, u-blox F10 uses the best signals from the L1/L5 bands to achieve a significantly better position accuracy in urban environments than with the L1 band only. Applications like vehicle tracking and micromobility benefit significantly. MAX-F10S offers a single antenna input. Two SAW filters in series with a LNA in between provide high robustness against RF interference from co-located cellular modems.

---

• u-blox F10 engine GPS L1C/A, L5 Galileo E1B/C, E5a BeiDou B1C, B2a NavIC L5 QZSS L1C/A, L1S, L1Sb, L5 SBAS L1C/A: EGNOS, GAGAN, MSAS, WAAS
• Sensitivity: Tracking and Navignation –167 dBm
• On-board low noise 3.3V voltage regulator and RF filter for noise blocking
• UART (Tx, Rx) and I2C interface
• SMA antenna connector
• u-center u-blox Evaluation Software
• Time pulse LED
• Supercapacitor for HOT module start

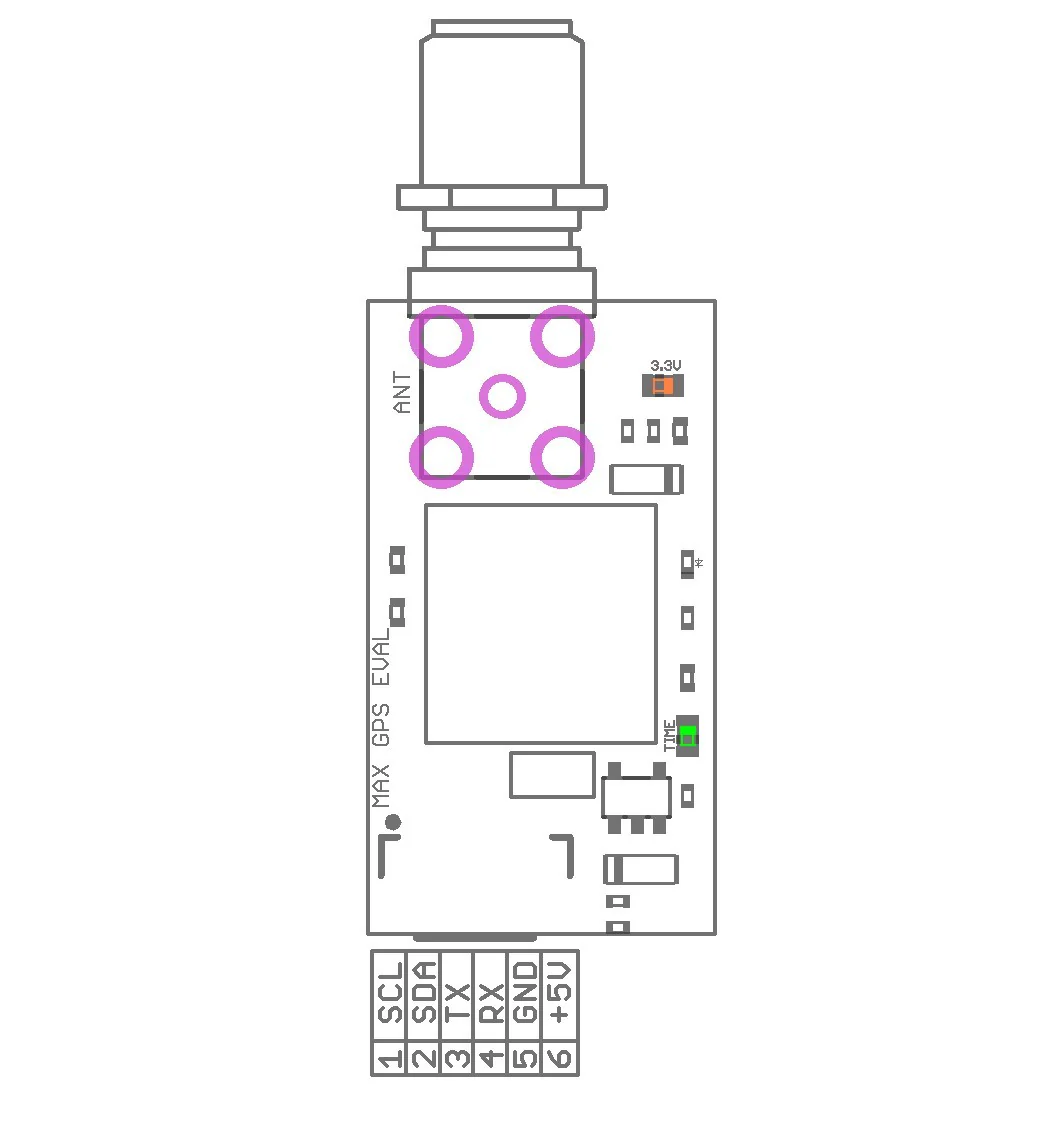

• 6 pin JST SH connectors
• Dimensions: 28x16 mm
• Weight: 7 gr.
• Fully assembled and ready to use
