L1/L5 ANN-MB5 multi-band standard precision GNSS antenna

L1/L5 ANN-MB5 multi-band standard precision GNSS antenna

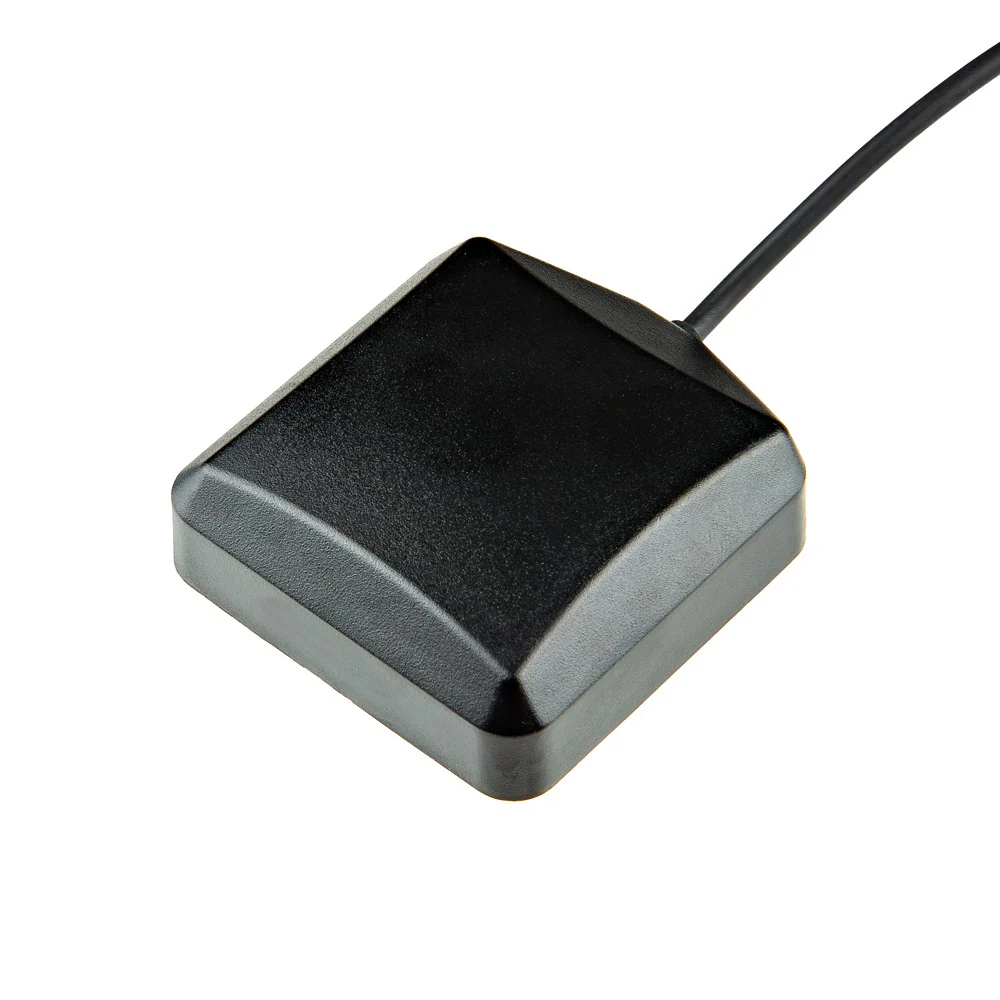

The u-blox ANN-MB5 multi-band (L1/L5/E5a/B2a/NavIC) active GNSS antenna is designed for the new generation of multi-frequency, multi-constellation standard precision GNSS technology, which can achieve the most accurate, reliable, and robust positioning even in challenging environments. ANN-MB5’s compact design, excellent price-to-performance ratio, and easy mounting features ensure a fast, easy, and reliable multi-band antenna solution for mass adoption. ANN-MB5 is a perfect match to the u-blox L1/L5 multi-band meter-level GNSS technology (e.g., F10 standard precision platform), providing customers with the ready-to-use, multi-frequency antenna they need to minimize the evaluation and design efforts, and speed up time-to-market.

---

Highlights:

• L1-L5 multi-band active GNSS antenna for mass-market applications
• Supports GPS, GLONASS, Galileo, and BeiDou for maximum position availability
• Enables fast time-to-market

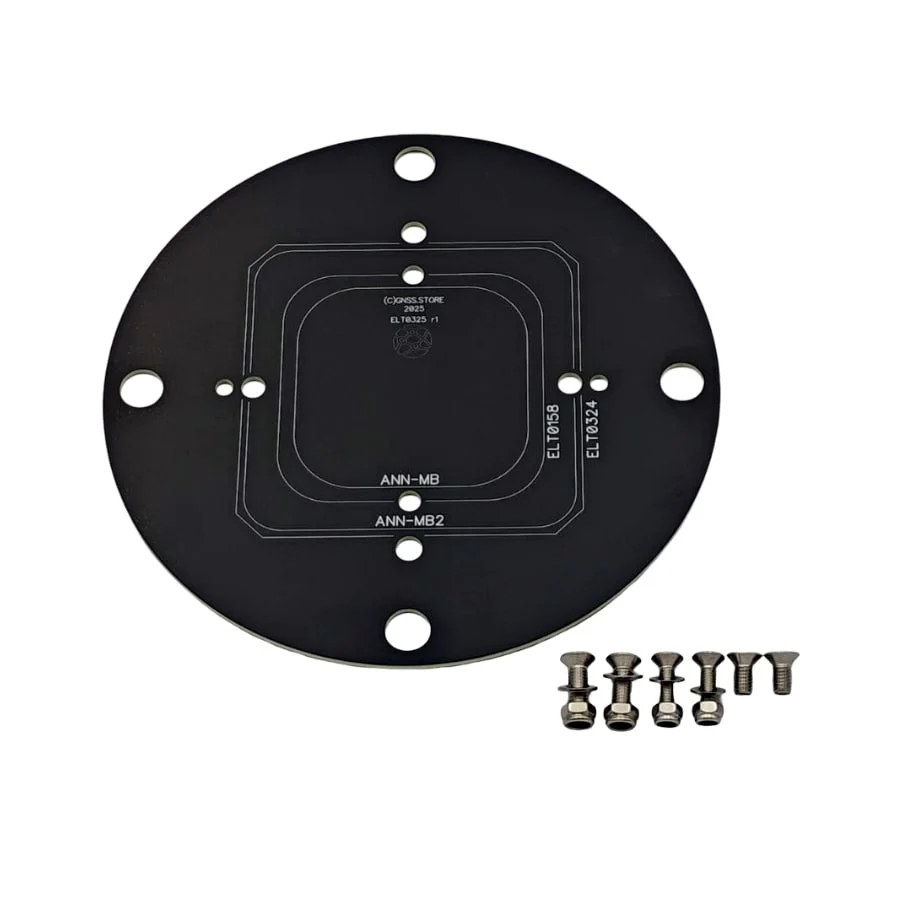

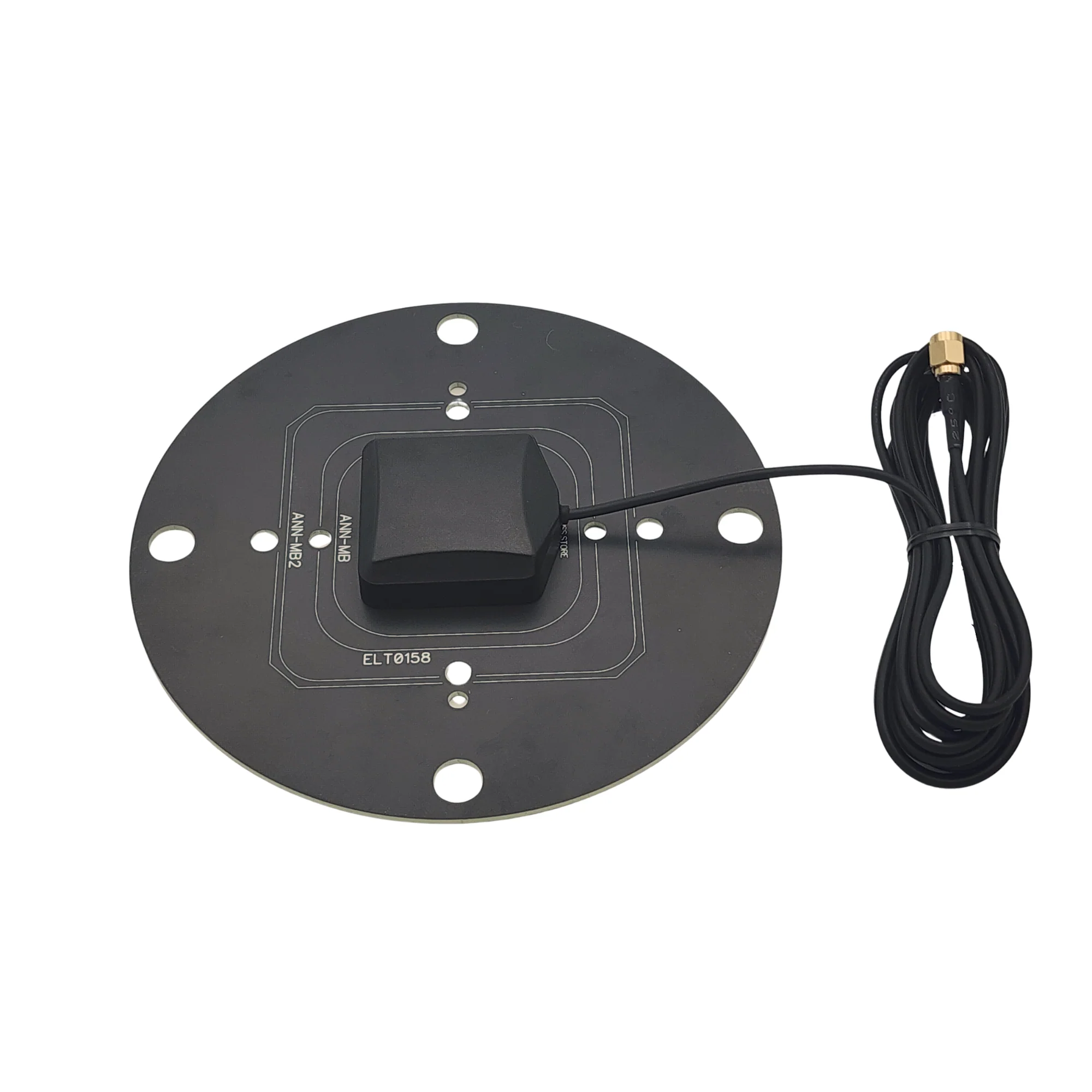

• Versatile mounting options to meet diverse installation needs

Signal Received:

• GPS L1//L5
• GLONASS G1
• GALILEO E1/E5a
• BDS B1I/B1C/B2a
• SBAS L1/L5
• QZSS L1/L5

Amplifier characteristics:

• LNA Gain: 15 ± 3 dB
• Noise figure Max: 2.0 dB
• Axial Ratio: 3.2 dB max. @Zenith
• Max. Output VSWR: 2.0
• Polarization: RHCP
• Voltage range: 3 - 5 V
• Typ. current: 17 mA

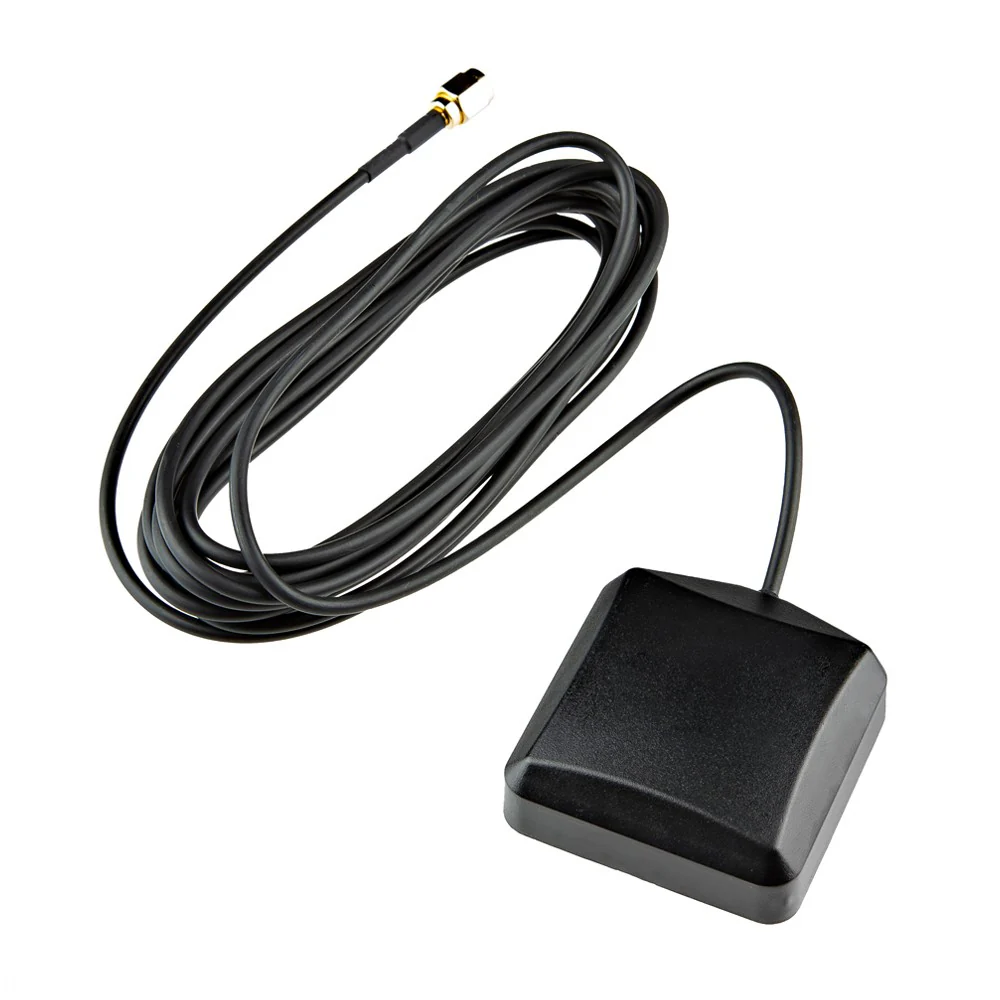

Mechanical data:

• Weight 104 g (typ. including cable)
• Size 49.2 x 46.2 x 16 mm
• Cable 3 m RG174 standard
• Connector SMA
• Mounting Magnetic base
• Housing color Black

Certifications and approvals:

CE approval Based on Radio Equipment Directive (RED) 2014/53/EU and the Restriction of the use of certain Hazardous Substances Directive (RoHS) 2011/65/EU and 2015/863/EU

Environmental data:

• Operating temperature –40 °C to +85 °C
• Storage temperature –40° C to +85 °C
• Waterproof IP 67

Product variants:

ANN-MB5 Product Summary

ANN-MB5 Data Sheet
