NEO-F9P-15B USB C Multi-band L1,L5 RTK GNSS SMA antenna

NEO-F9P-15B USB Type C Multi-band L1,L5 RTK GNSS U.FL antenna connector, for your UDR systems, UAV systems, Robots, RC, FPV or other projects.

NEO-F9P High Precision GNSS breakout PCB with UF.L antenna connectors. Multi-band receiver delivers centimeter-level accuracy in seconds. The NEO-F9P positioning module features the new u-blox receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. NEO-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.

The NEO-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.

NEO-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need.

---

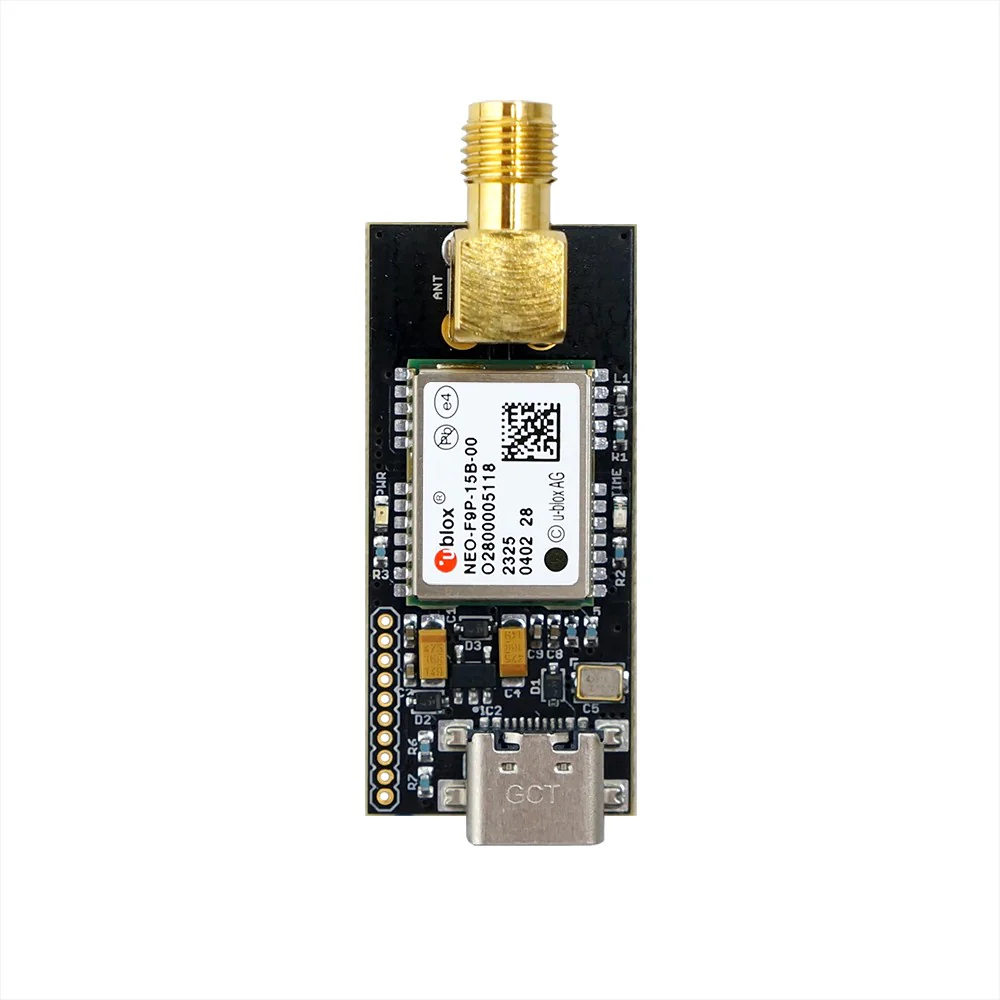

NEO-F9P breakout pcb features:

• 184-channel u-blox F9 engine GPS L1C/A L5, GLO L1OF, GAL E1B/C E5a, BDS B1I B2a, QZSS L1C/A L1S L5, SBAS L1C/A NavIC L5
• On-board low noise 3.3V voltage regulator

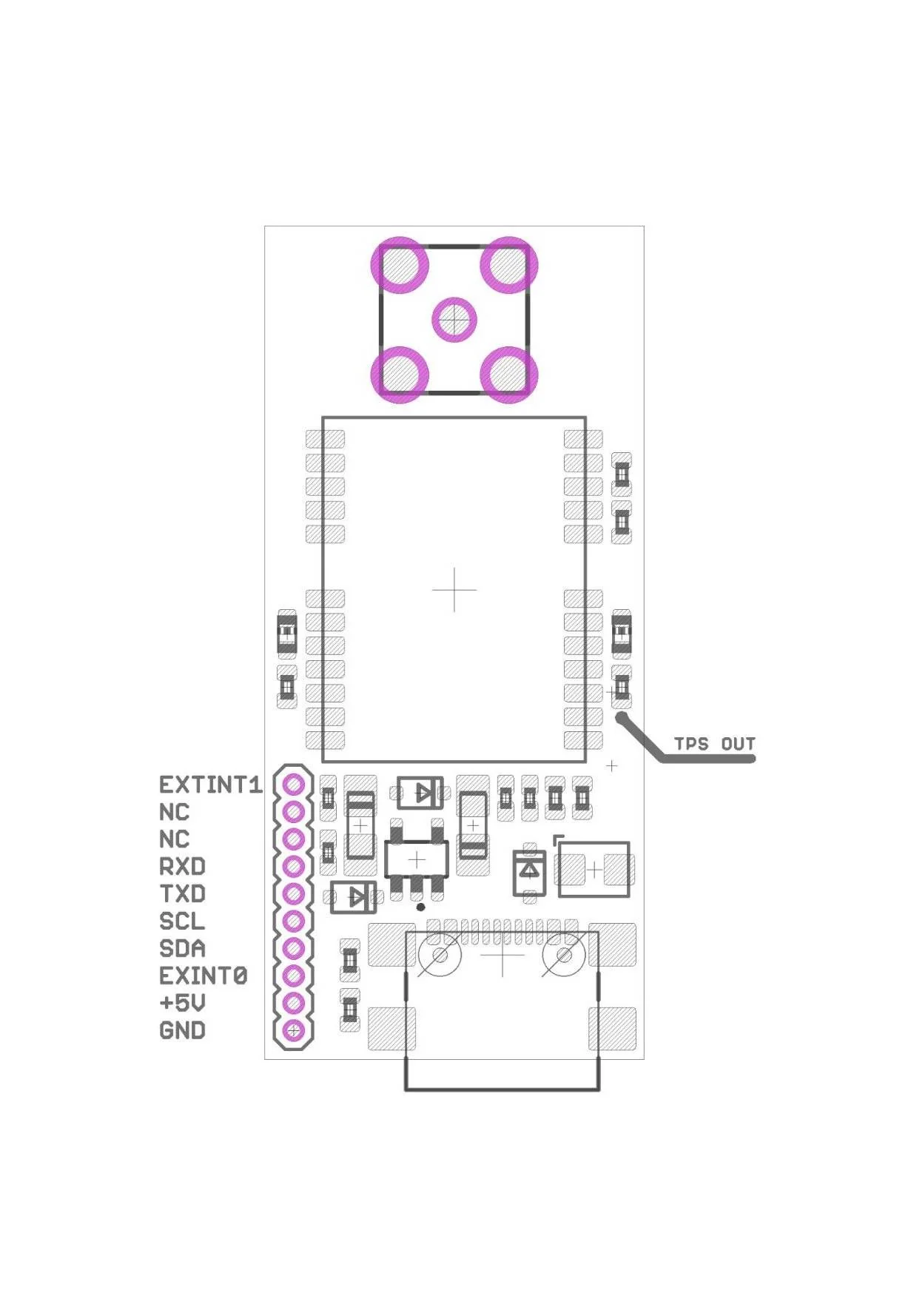

• USB type C connector, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interface, EXTINT pin, RTK STAT pin.
• Time pulse LED, Power LED
• SMA antenna connector
• Support active antenna
• u-center ublox Evaluation Software
• Extensive visualization and evaluation features
• Backup supercapacitor
• Dimensions: 40x18 mm
• Weight: 8.1 gr.
• Fully assembled and ready to use

Board can be used for a Base or Rover operation mode!
