UM981 Mic RTK GNSS receiver

Mic Form Factor features:

• Allows you to reuse expensive LGA component, if something goes wrong
• Takes care of all the RF complexity so you only need to connect antenna directly to the module
• This form factor is available in a variety of modules

Unicore UM981S/UM981-02 All-constellation Multi-frequency High Precision RTK GNSS receivers

The UM981S/UM981-02 is a next-generation, patented Unicore navigation modules utilizing RTK and INS technologies. They can simultaneously track multiple satellite systems and frequencies, including GPS, BDS, GLONASS, Galileo, QZSS, NavIC, and SBAS.

Modules has an integrated inertial measurement unit (IMU) for inter-station navigation.

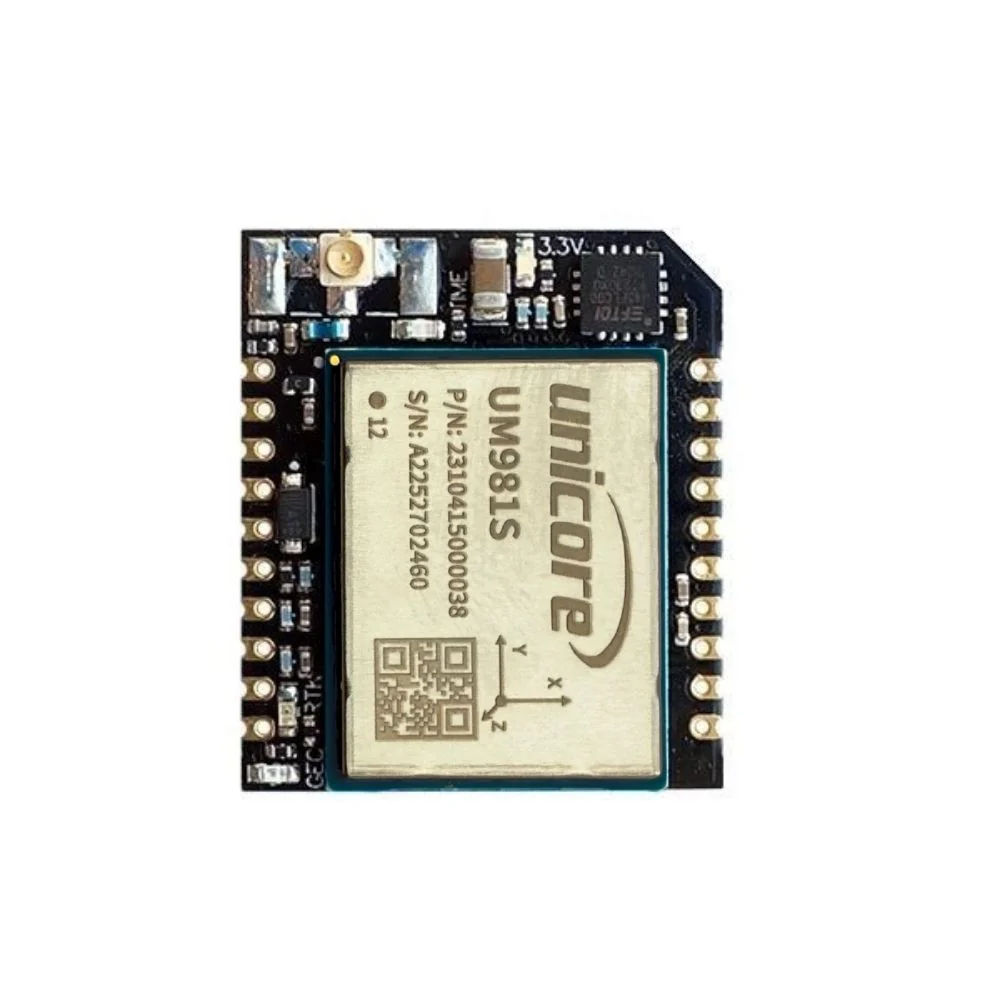

UM981S — supports tilt compensation, making it ideal for surveying and mapping applications.

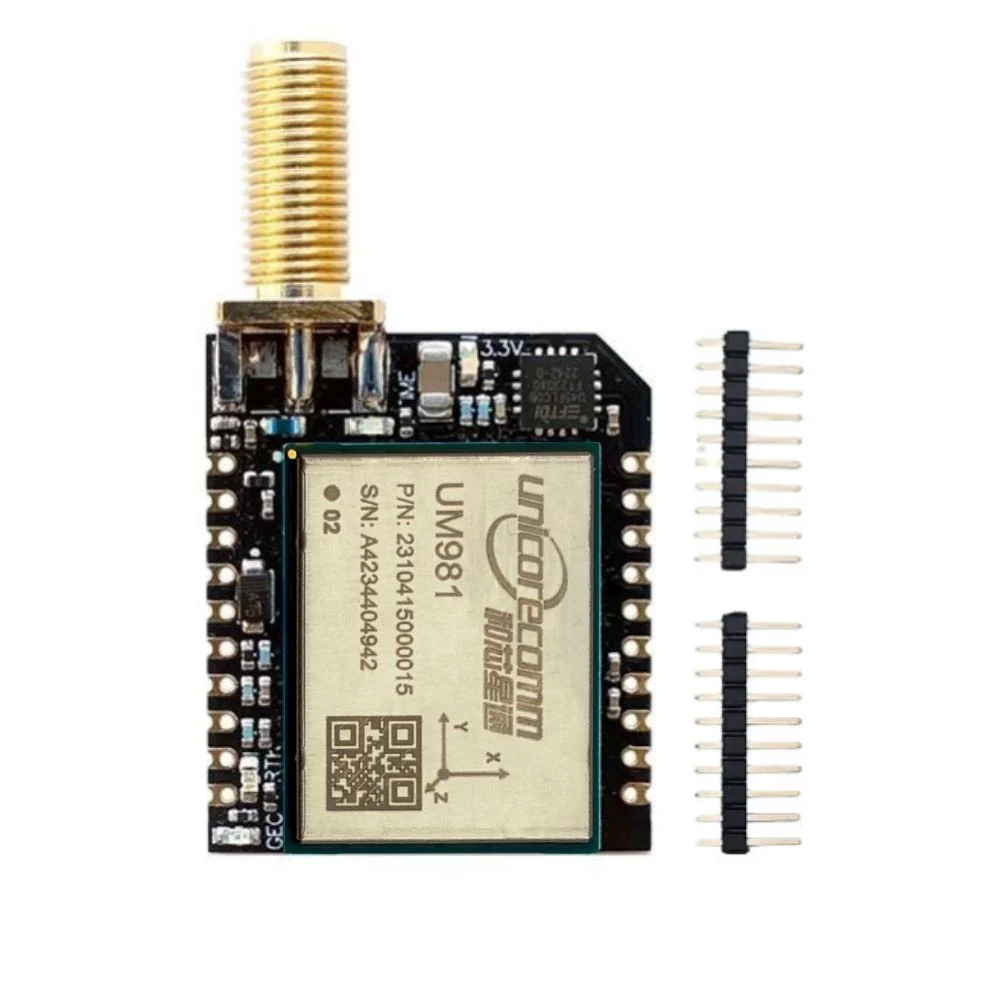

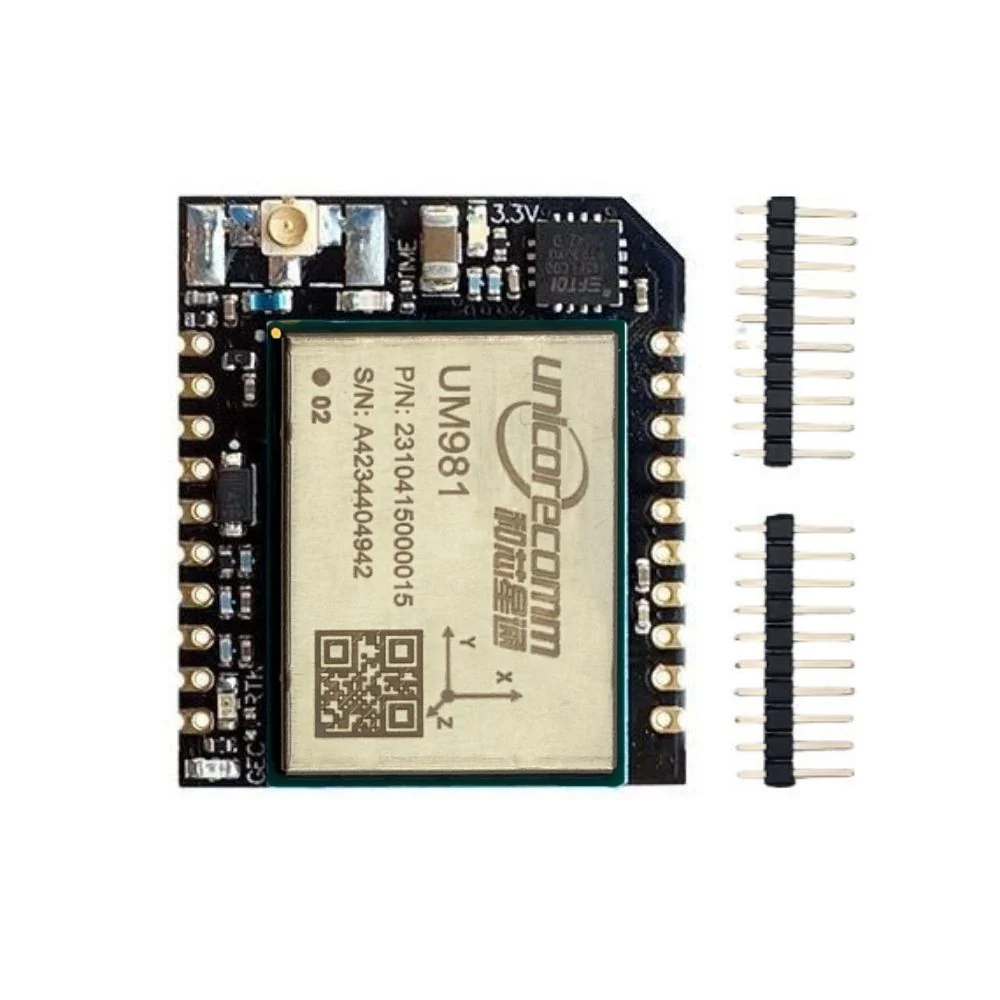

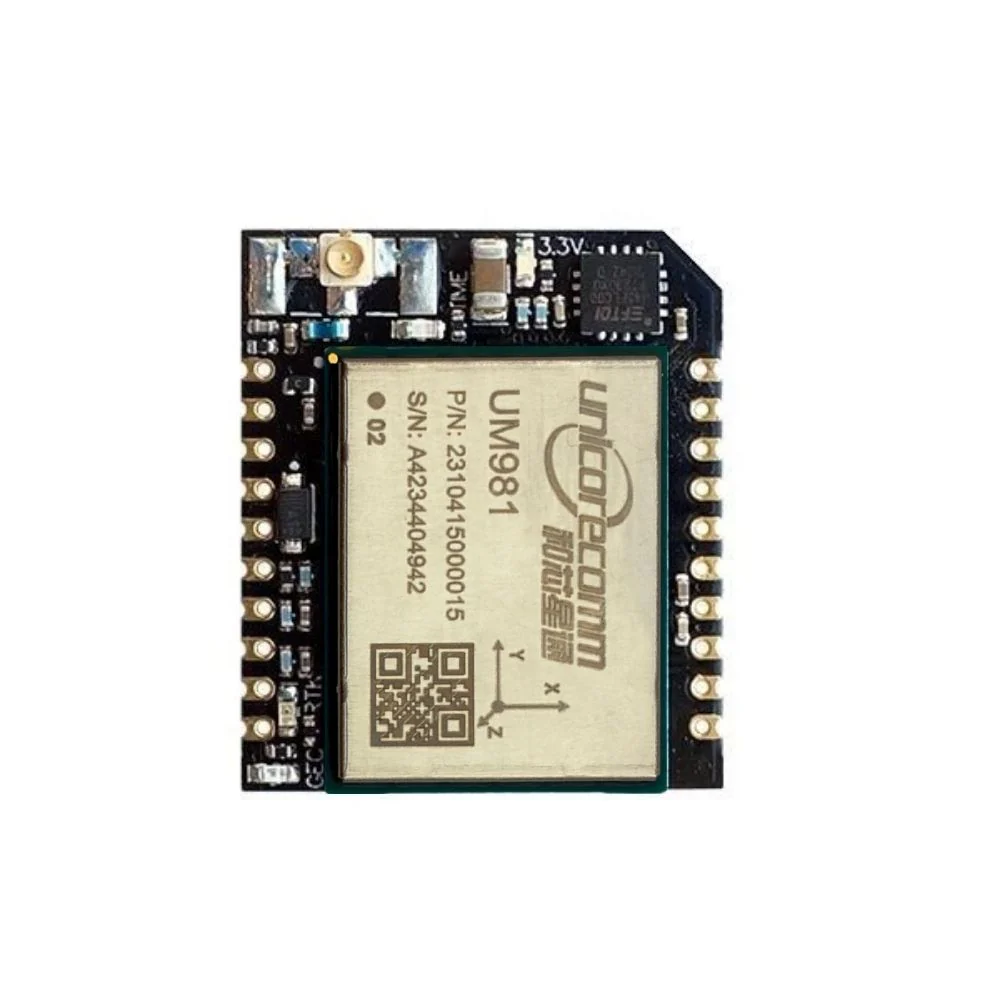

UM981-02 — has an integrated U-Fusion navigation algorithm, which ensures continuous positioning even when the GNSS signal is lost, guaranteeing high-quality positioning results in challenging environments such as buildings, tunnels, overpasses, and tree shadows. This module is designed for high-precision navigation and positioning in precision agriculture and other applications with similar dynamic characteristics.

---

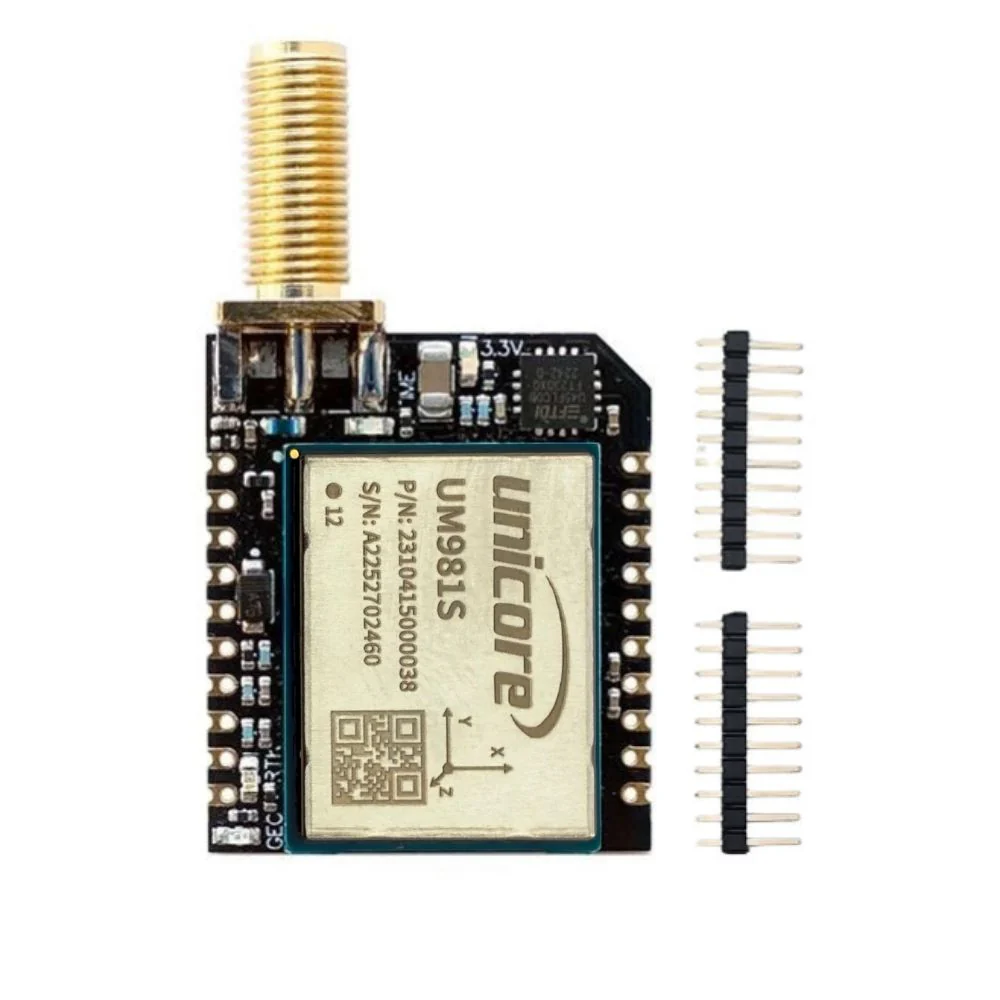

• Antenna input with SMA or IPEX connector

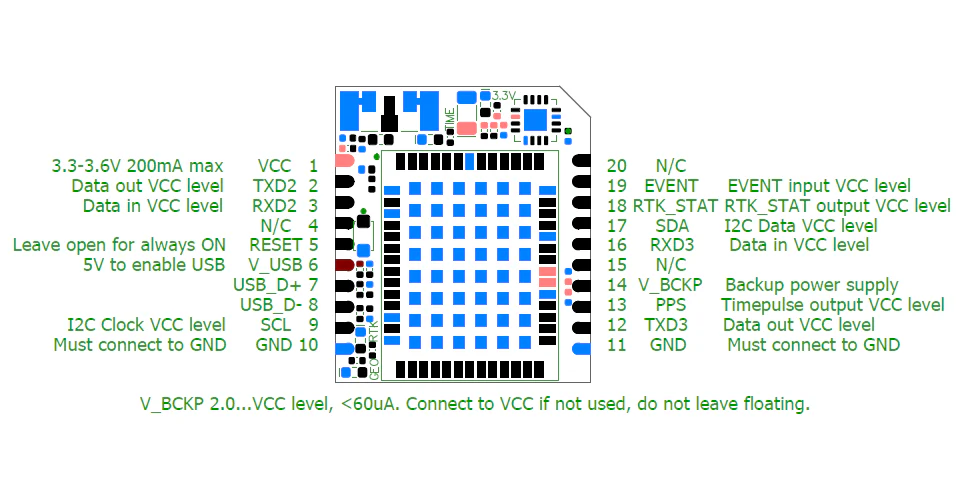

• USB, I2C* and 2 UART (Tx, Rx) interface
• Power LED: Purple, Time pulse LED: Green, PVT LED: Red, RTK LED: Orange
• Extensive visualization and evaluation features
• Dimensions 24.5x33.5 mm
• Weight: 10 g
• Fully assembled and ready to use
• Compatible with AgOpenGPS TeensyModules

WARNING: This module requires antennas with 3.0 V power supply, such as ELT0243
