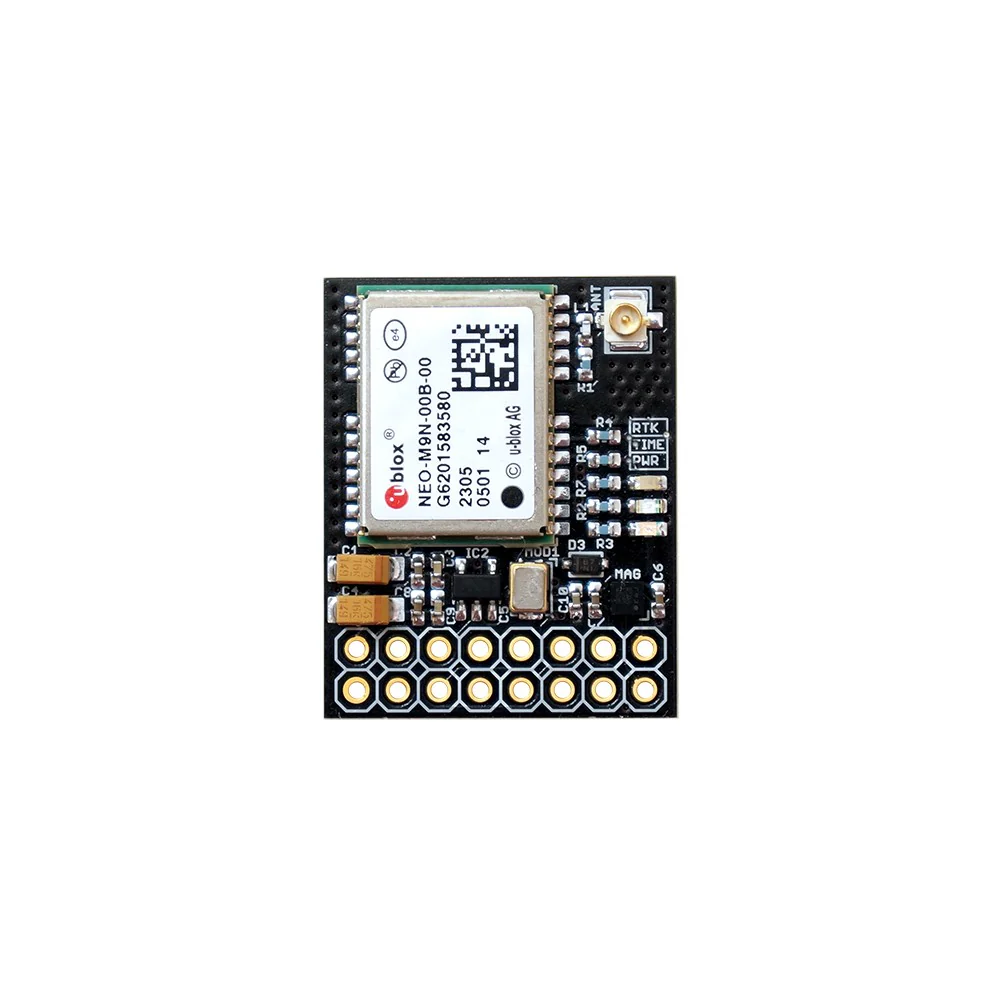

NEO-M9N four GNSS receiver board with LIS3MDL magnetometer

NEO-M9N four GNSS Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.

The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations.

Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with SMA antenna connectors.

---

• 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
• SuperSense Indoor GPS, -167dBm
• On-board low noise 3.3V voltage regulator

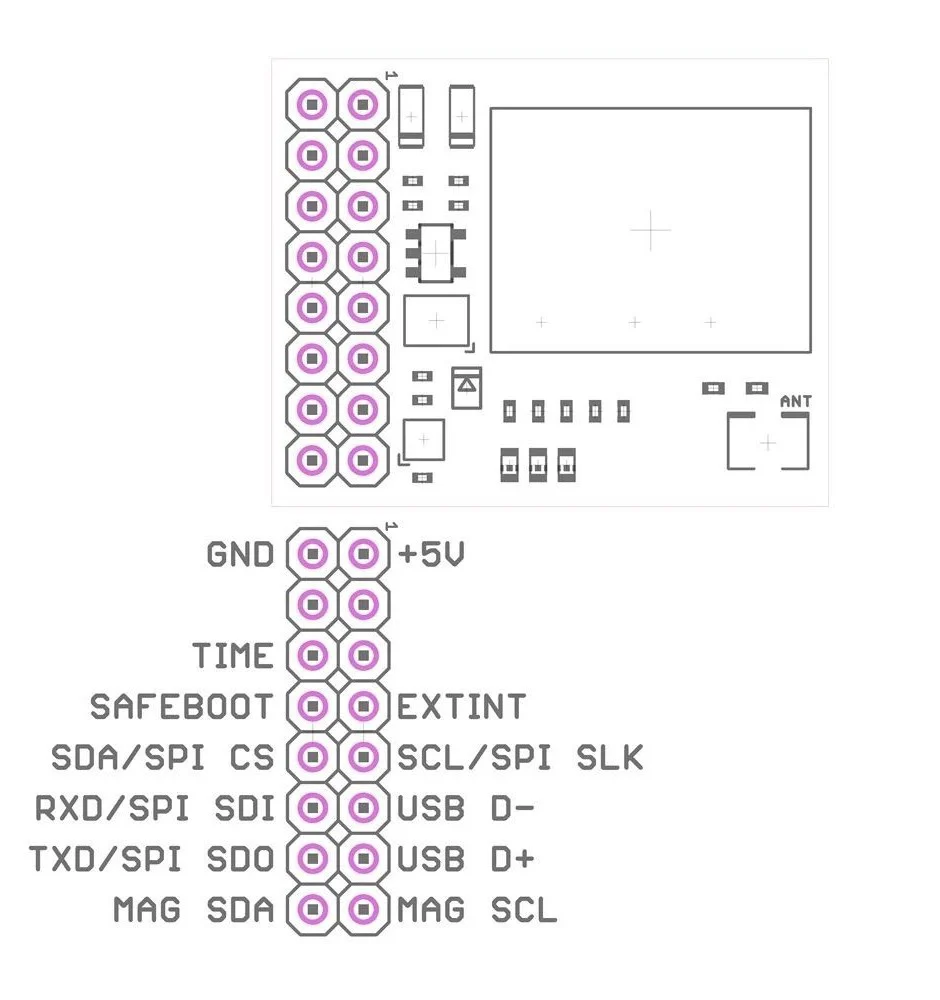

• USB, I2C (SDA, SCL) and UART (Tx, Rx), EXTIN pin
• UF.L antenna connectors
• u-centre ublox Evaluation Software
• Extensive visualization and evaluation features
• Supports AssistNow Online and AssistNow Offline A-GPS services
• Time pulse LED, Power LED
• Flash memory for firmware upgrade and settings inside in the module (can save settings without battery)
• Supercapacitor for HOT module start
• Dimensions 28x23 mm
• Weight: 2,9 gr.
• Fully assembled and ready to use
• Can be easy mounted in your case by double sided tape
• Build in LIS3MDL magnetometer
• Pin holes for easy soldering

Fully assembled and ready to use
