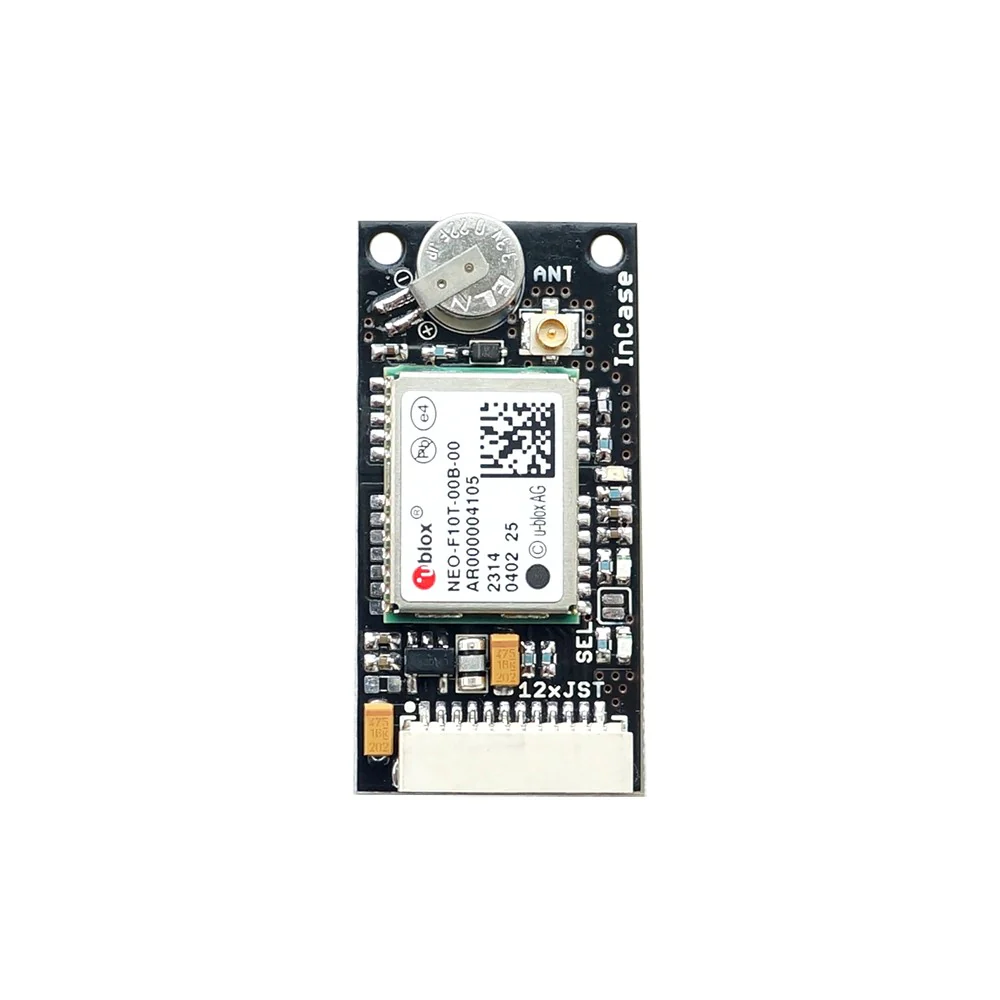

NEO-F10T L1/L5/E5a InCase series TIME & RAW receiver board

InCase PIN series NEO-F10T Reference Board with U.FL antenna connectors for your RTK systems, UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.

The NEO-F10T timing module provides nanosecond-level timing accuracy to the most demanding infrastructure applications. Thanks to the module's dual-band functionality, it can provide excellent timing accuracy without the need of an external GNSS correction service. Additionally, when within the operational area of a Satellite Based Augmentation System (SBAS), NEO-F10T offers the possibility to improve the timing performance by using the ionospheric corrections provided by the SBAS system.

As NEO-F10T supports all four global satellite constellations, it is ideal for global deployments with single HW SKU. The NEO-F10T module supports the L1/L5/E5a configuration. NEO-F10T includes advanced security features such as secure boot, secure interfaces, and T-RAIM to provide the highest level timing integrity.

The module has a single RF input for all the GNSS bands and dual SAW filters for exceptional signal selectivity and out-ofband attenuation. NEO-F10T is designed to meet the most stringent timing synchronization requirements in 5G mobile networks on a global scale.

The NEO-F10T Evaluation board makes evaluating the high performance of the u-blox 10 positioning engine simple. The NEO-F10T Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-F10T breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-F10T

---

• u-blox F10 engine GPS/QZSS L1 C/A, L5; GLONASS L10F; Galileo E1B/C, E5a; BeiDou B1C, B2a; NavIC L5; SBAS L1 C/A: WAAS, EGNOS, L1Sb, GAGAN
• SuperSense Indoor GPS, -167dBm
• On-board low noise 3.3V voltage regulator and RF filter for noise blocking
• UART (Tx, Rx), RAW data out available
• Support active antenna
• u-center ublox Evaluation Software
• Extensive visualization and evaluation features
• Supports AssistNow Online and AssistNow Offline A-GPS services
• Time pulse LED
• Flash memory for firmware upgrade and settings inside in the module (can save settings without battery)
• Supercapacitor for HOT module start
• Dimensions: 36x18 mm
• Weight: 3.3 gr.
• Fully assembled and ready to use

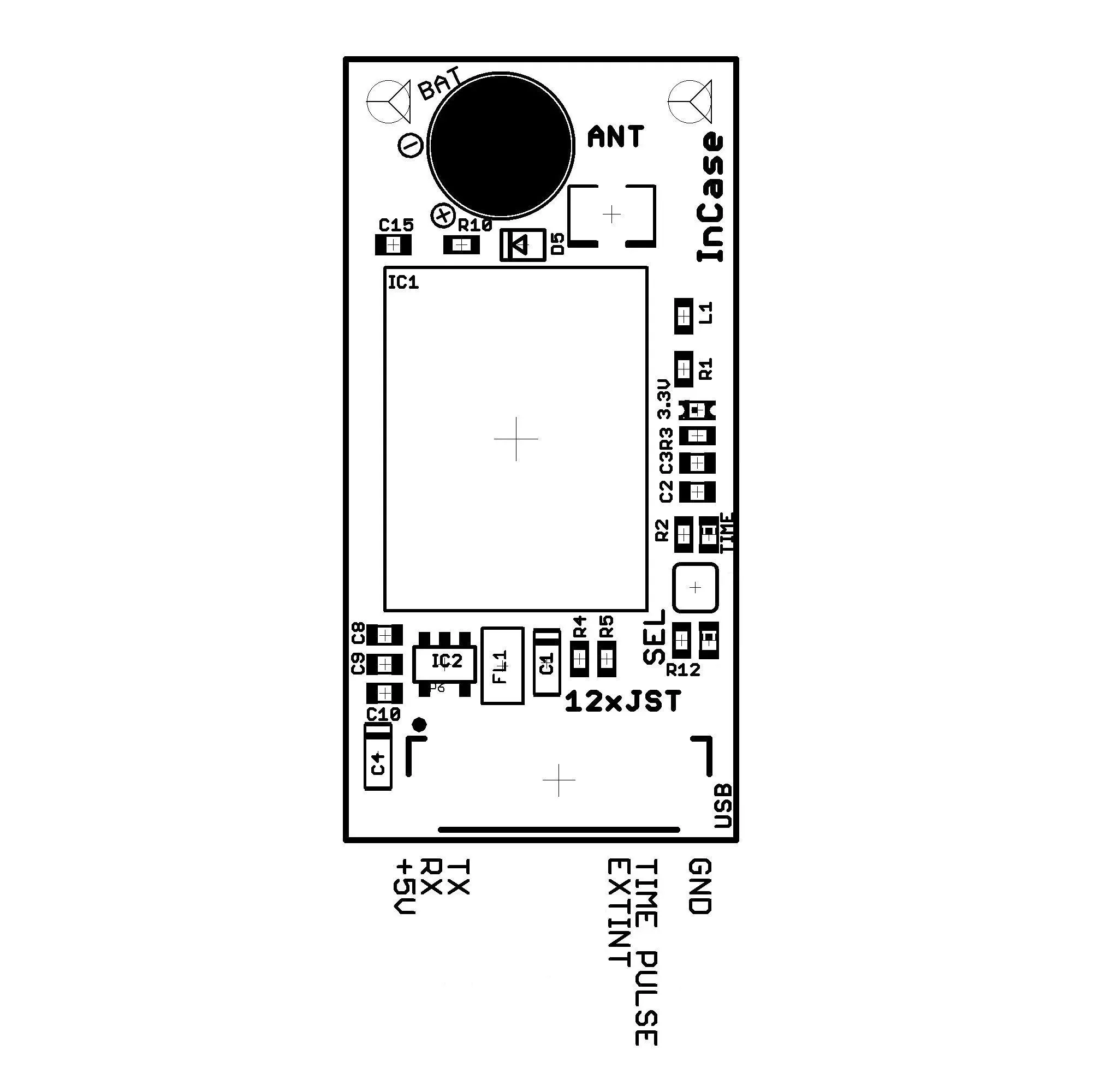

• 12 pin JST SH connector
• Output available for use: Time Pulse, Interrupt, UART interface
