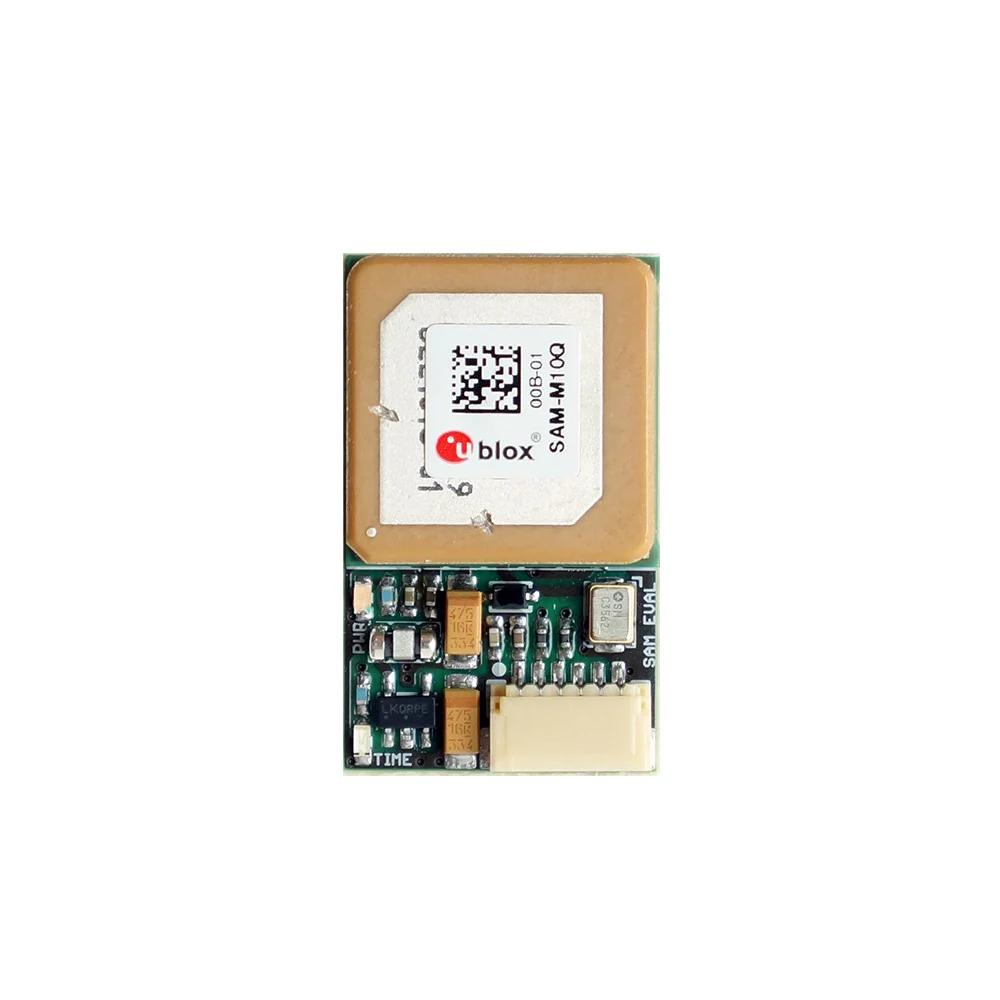

SAM-M10Q GNSS antenna module receiver
SAM-M10Q u-blox GPS, GLONASS, Galileo, and BeiDou receiver with antenna. For your UAV systems, Robots, RC, FPV or other projects. Designed for integration in your systems.
The SAM-M10Q is a patch antenna module built on the ultra-low-power u-blox M10 GNSS platform, which supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou) and provides exceptional sensitivity and fast acquisition times for all L1 GNSS systems.
The extremely low power consumption of 37 mW in continuous tracking mode with four concurrent GNSS allows great power autonomy for battery-operated devices, without compromising on GNSS performance.
A front-end SAW filter and an LNA is integrated in the SAM-M10Q module. This setup ensures excellent out-band jamming immunity, for example when a cellular modem is nearby. SAM-M10Q also detects jamming and spoofing attempts and reports them to the host, so that the system can react to such events.
The high-gain 15 x 15 mm patch antenna provides the best balance between performance and small size. The omnidirectional radiation antenna pattern increases flexibility for device installation.
The SAM-M10Q module features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity.
The SAM‑M10Q module targets industrial and consumer applications that require small, cost efficient, and ready-to-use GNSS solutions.
- u-blox M10 engine GPS L1 C/A, QZSS L1 C/A L1S, GLONASS L1OF BeiDou B1C, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- I2C and UART (Tx, Rx) interface
- Build-in active antenna
- u-center u-blox Evaluation Software
- AssistNow Real-time online A-GNSS service with assured global availability
- CloudLocate Extends the life of energy-constrained IoT applications.
- Time pulse LED 1
- Supercapacitor for HOT module start
- Dimensions: 30x16 mm
- Weight: 7.5 gr.
- Can be easy mounted in your case by double sided tape
- 6 pin JST SH connector
- Output avail for use UART, I2C interfaces
- Fully assembled and ready to use
