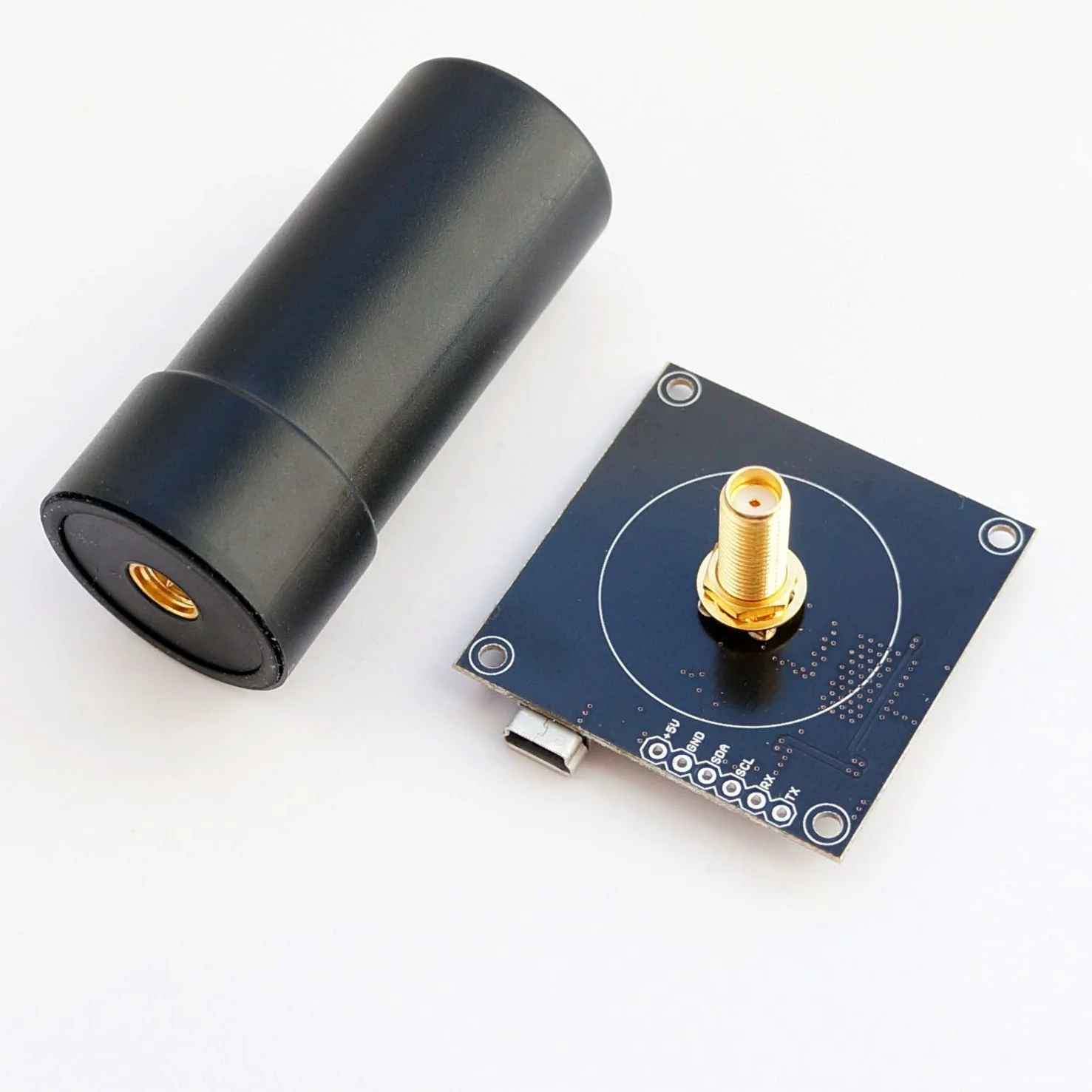

NEO-M9N four GNSS receiver board set with Helix Antenna

NEO-M9N four GNSS set with Helix Antenna for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.

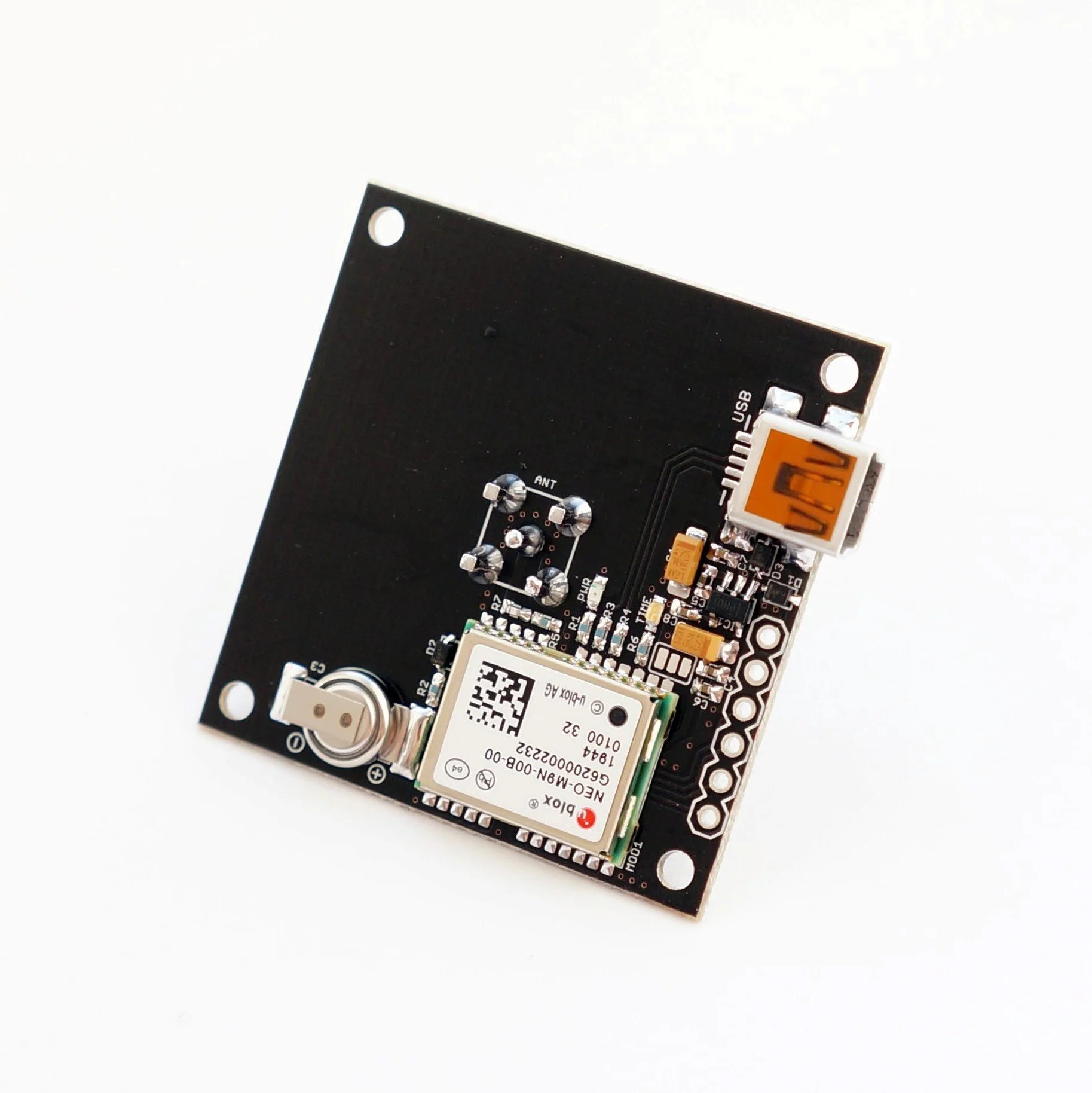

The NEO-M9N set makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with Helix antenna.

---

• 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGANv
• SuperSense Indoor GPS, -167dBm
• On-board low noise 3.3V voltage regulator
• USB, I2C (SDA, SCL) and UART (Tx, Rx)

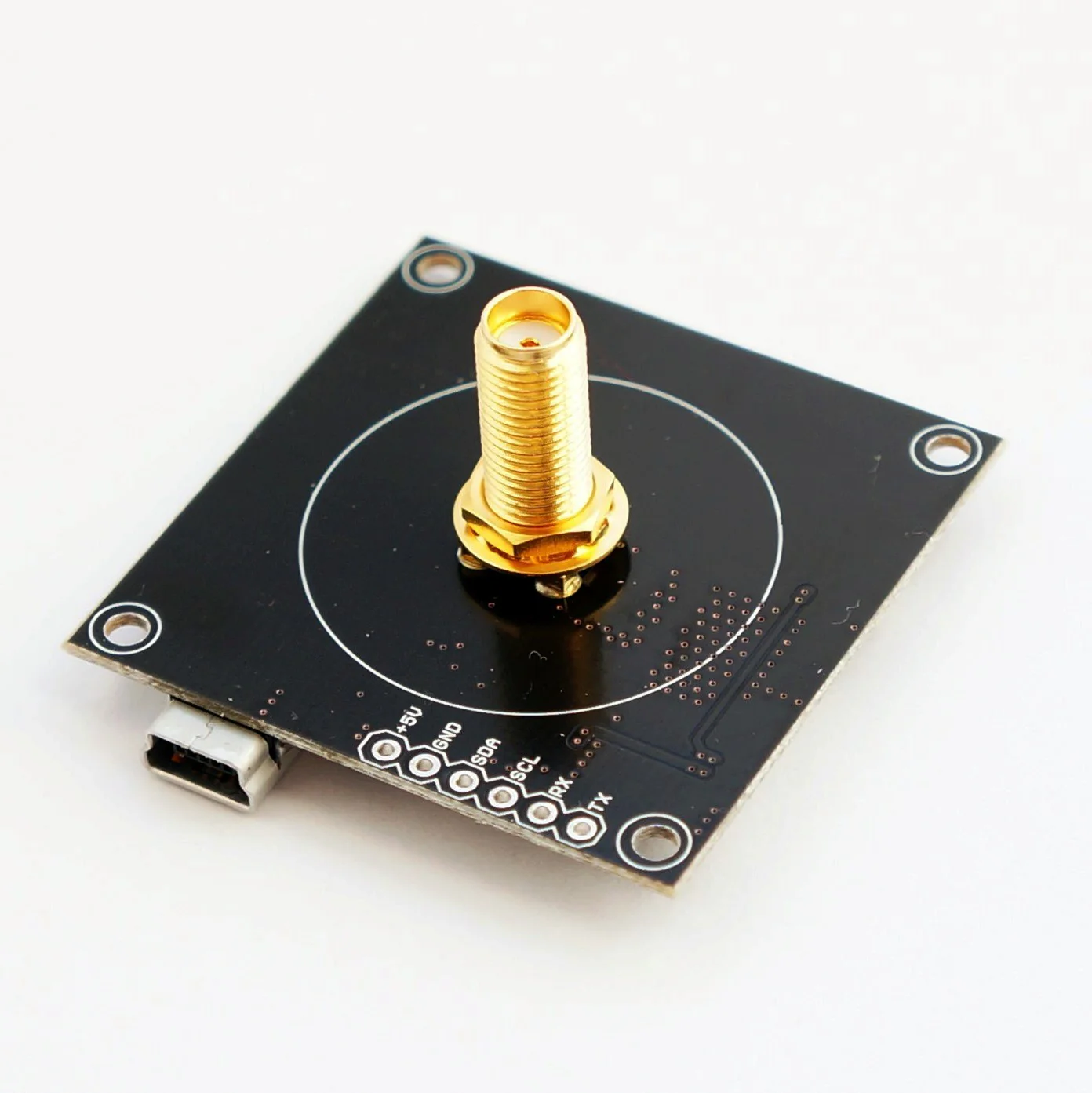

• SMA antenna connectors.
• u-center ublox Evaluation Software
• Extensive visualization and evaluation features
• Supports AssistNow Online and AssistNow Offline A-GPS services
• Time pulse LED, Power LED
• Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
• Supercapacitor for HOT module start
• Dimensions: 30x30 mm
• Weight: 25 gr. with mounted antenna
• Fully assembled and ready to use

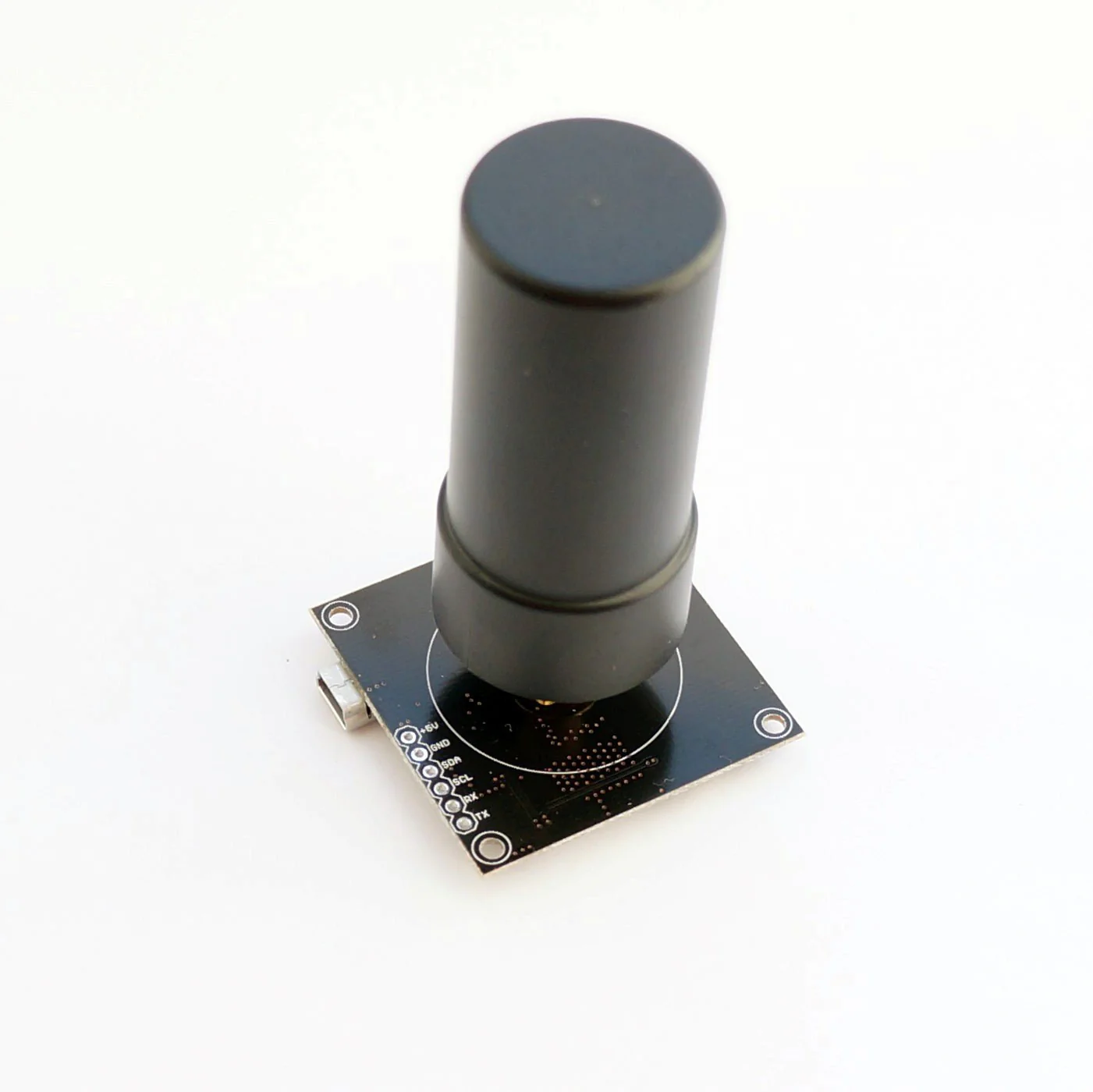

• Helix Antenna included

Helix Antenna Features:

• Quadrifilar helix antenna
• Concurrent GNSS reception on GPS, GLONASS, Galileo and Beidou
• Rugged IP67 rating with SMA mount
• Small form factor
• Ground plane independent
• GIS, RTK and other high accuracy GNSS applications
• Low power consumption
• Low phase center variation over azimuth and elevation and among different samples
• Ultra-lightweight about 17-19 gramm
• Dimension 55x25mm
• Automotive grade electronics
