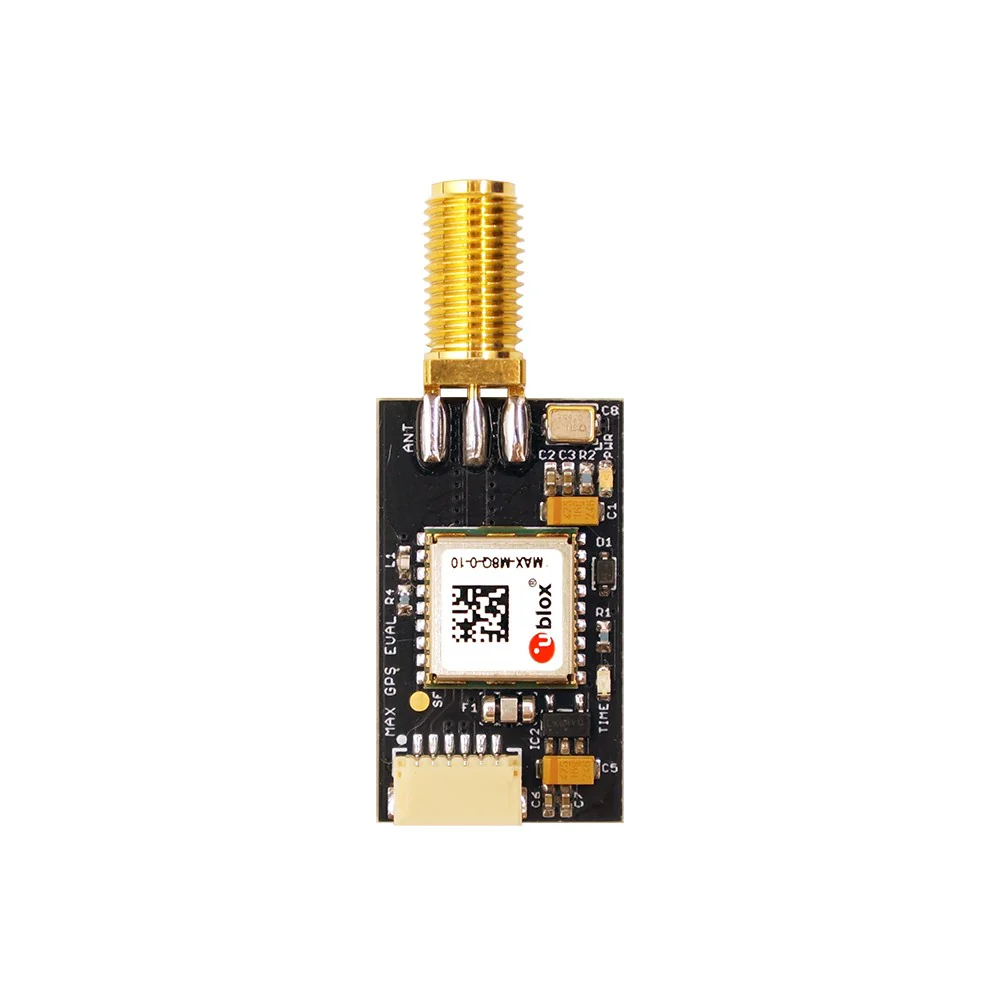

MAX-M8Q GPS GLONASS BeiDou 18Hz receiver with SMA connector

MAX-M8Q u-blox GPS/QZSS GLONASS BeiDou 18Hz receiver Reference Board with SMA antenna connector for your mini UAV systems, Robots, RC, FPV or other projects. Ultra small and light.

The MAX-M8 series of standalone concurrent GNSS modules is built on the exceptional performance of the u-blox M8 engine in the industry proven MAX form factor. With dual-frequency RF front-end, the u-blox M8 concurrent GNSS engine is able to intelligently use the highest amount of visible satellites from two GNSS (GPS, GLONASS and BeiDou) systems for more reliable positioning. The MAX-M8 series is ideal for performance driven applications. The MAX-M8 series provides high sensitivity and minimal acquisition times while maintaining low system power.

The MAX-M8Q provides best performance for passive and active antennas designs. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments. The MAX-M8 combines a high level of integration capability with flexible connectivity options in a miniature package. This makes MAX-M8 perfectly suited for industrial applications with strict size and cost requirements.

The MAX-M8Q is also halogen free (green) which makes it also a perfect solution for consumer applications. The DDC (I2C compliant) interface provides connectivity and enables synergies with most u-blox cellular modules

---

• 72-channel u-blox M8 concurrent GNSS receiver GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1, SBAS L1 C/A: WAAS, EGNOS, MSAS
• Sensitivity: Tracking -167dBm Nav –164 dBm
• On-board low noise 3.3V voltage regulator and RF filter for noise blocking
• UART(Tx, Rx), and I2C interface
• SMA antenna connector
• Active GNSS antenna support
• Time pulse LED
• Supercapacitor for HOT module start

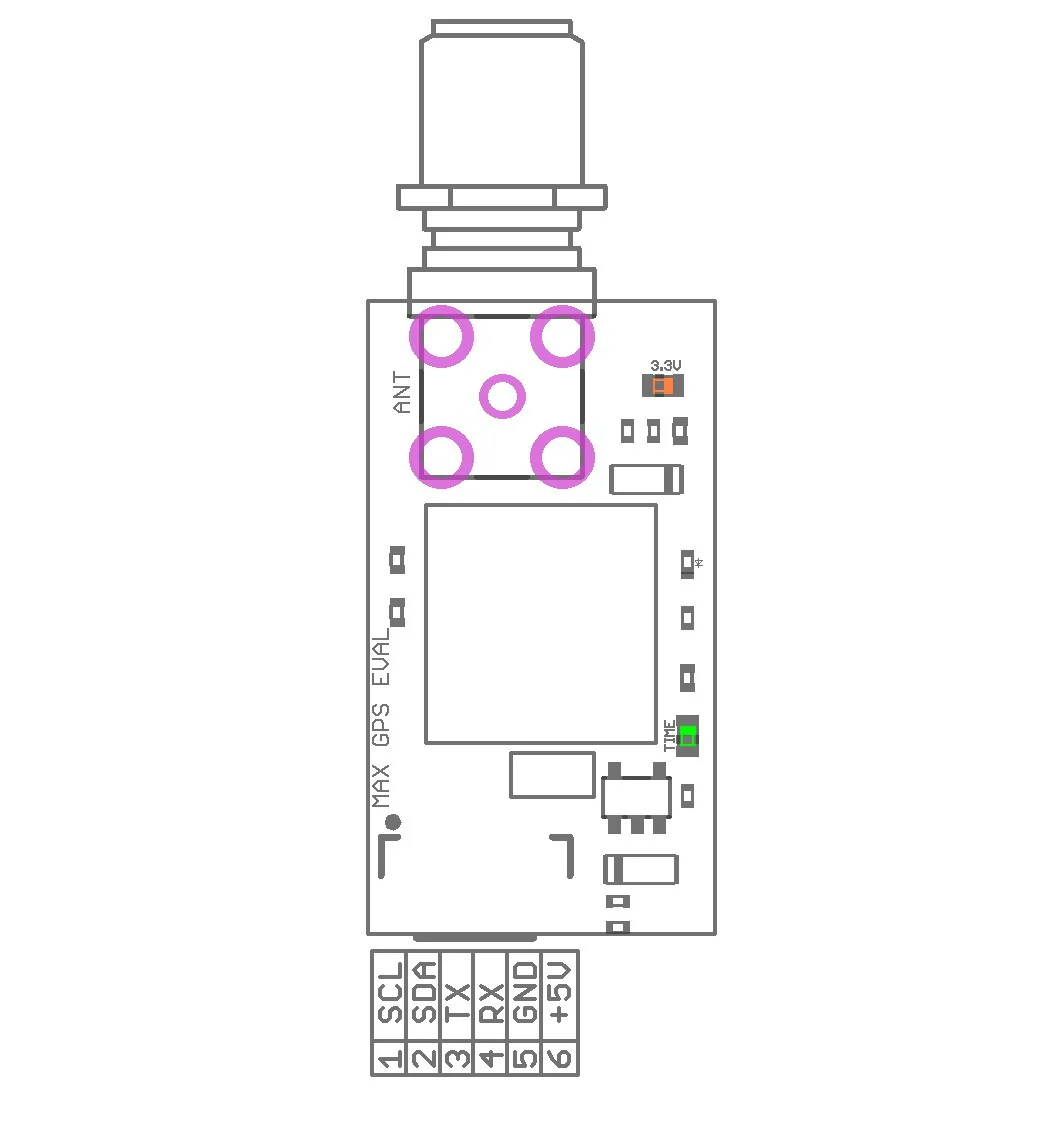

• 6 pin JST SH connectors
• Dimensions: 27x16 mm
• Weight: 7 gr.
• Fully assembled and ready to use
• u-center u-blox Evaluation Software
